1. Introduction
1.1 Overview

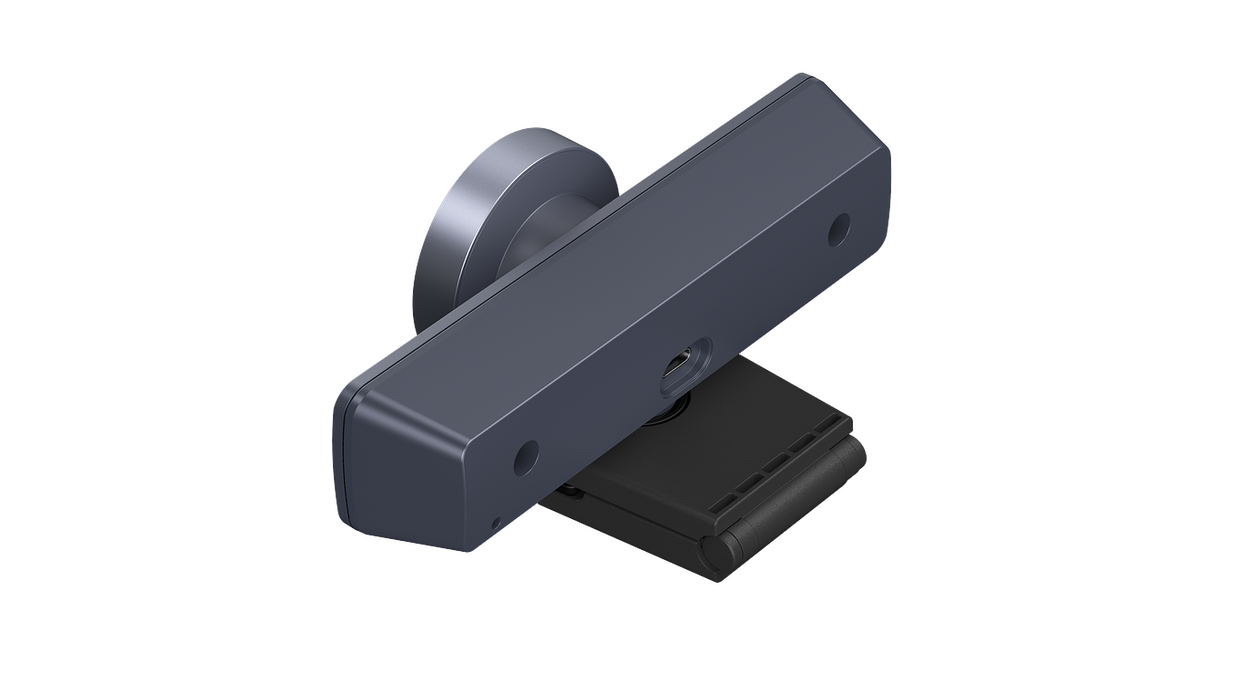

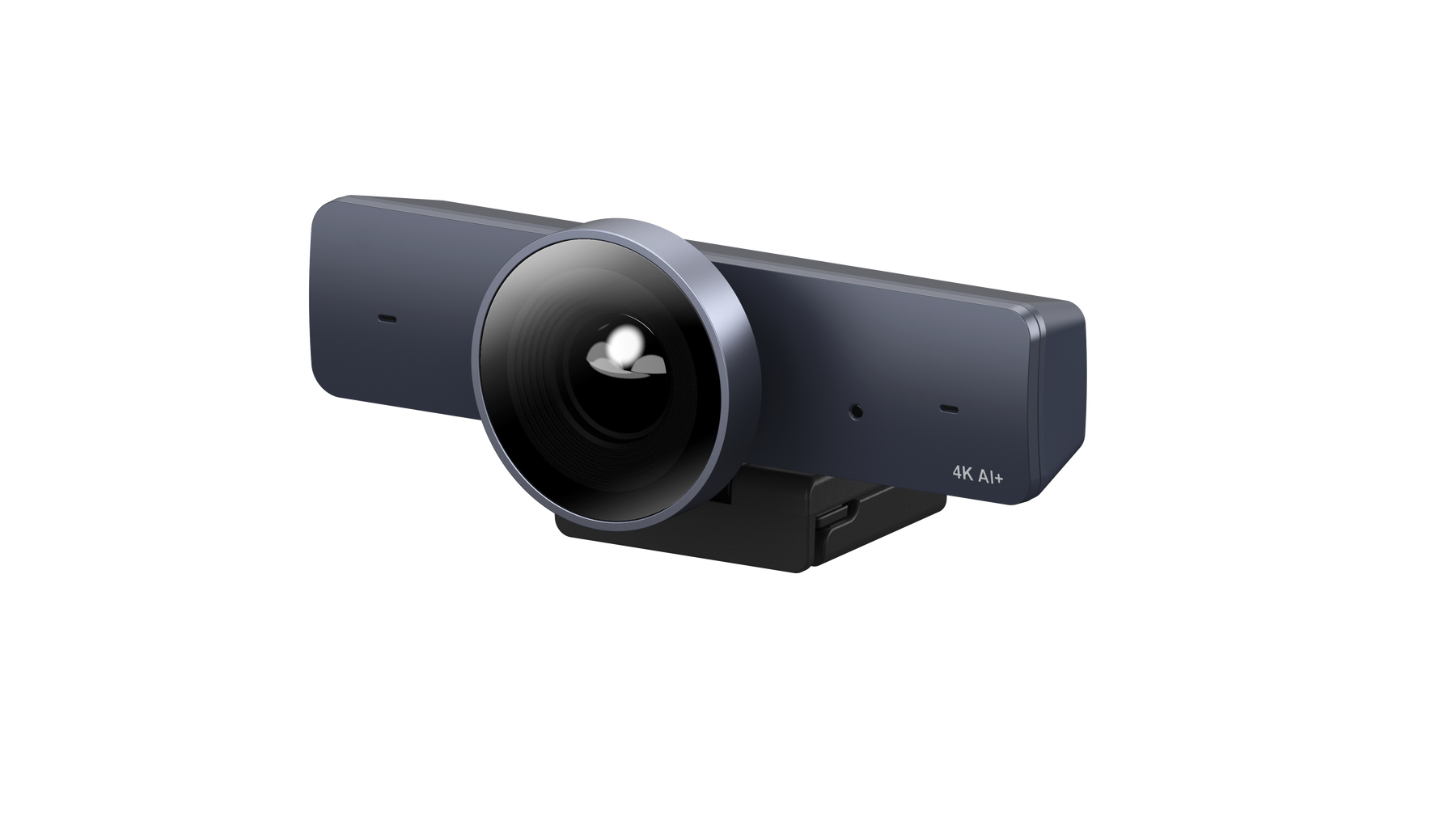

This product is a 4K Ultra HD USB camera featuring an ultra-wide-angle,
distortion-free lens. It supports high-quality video output up to 4K@30 fps and
offers automatic color correction and white balance for consistent performance in
various lighting conditions, including natural sunlight. The built-in noise-reducing
microphone ensures clear audio pickup within a range of up to 3 meters.
The camera is easy to install and fully plug-and-play. It is compatible with major
operating systems such as Windows 10/11 and macOS, and works seamlessly
with popular video conferencing and streaming platforms, including OBS (Open
Broadcaster Software) and XSplit Broadcaster— making it ideal for a wide range
of applications.
1.2 Features
. Supports 4K Ultra HD up to 4K@30fps encoding output, and down-compatible
with 1080p and 720p.
. Supports MJPEG, NV12, H.264 and H.265 video compression to comply with
most application platforms.
. Full functional USB 3.0 / USB 2.0 connection, power supply, video and audio
all in one via USB 3.0 Type-A to Type-C cable.
. 120° ultra-wide-angle distortion-less lens.
. Built-in auto noise reducing mic, which can pick up clear sound in the distance
of 3m.
. Fully supports UC and web conferencing platform, like Skype business, Zoom,
WebEx, etc.
. Auto Framing / Presenter Tracking /Individuals Gallery based on AI
technology makes meetings more intimate and friendly.
. Supports ePTZ with a maximum of 5x digital Zoom.
. Equips multiple-purpose mounting clip for easy installation on the top of a
laptop, a display or a universal tripod.
1.3 Package Contents
. 1 x USB Camera
. 1 x USB 3.0 Type-A to USB Type-C Cable
