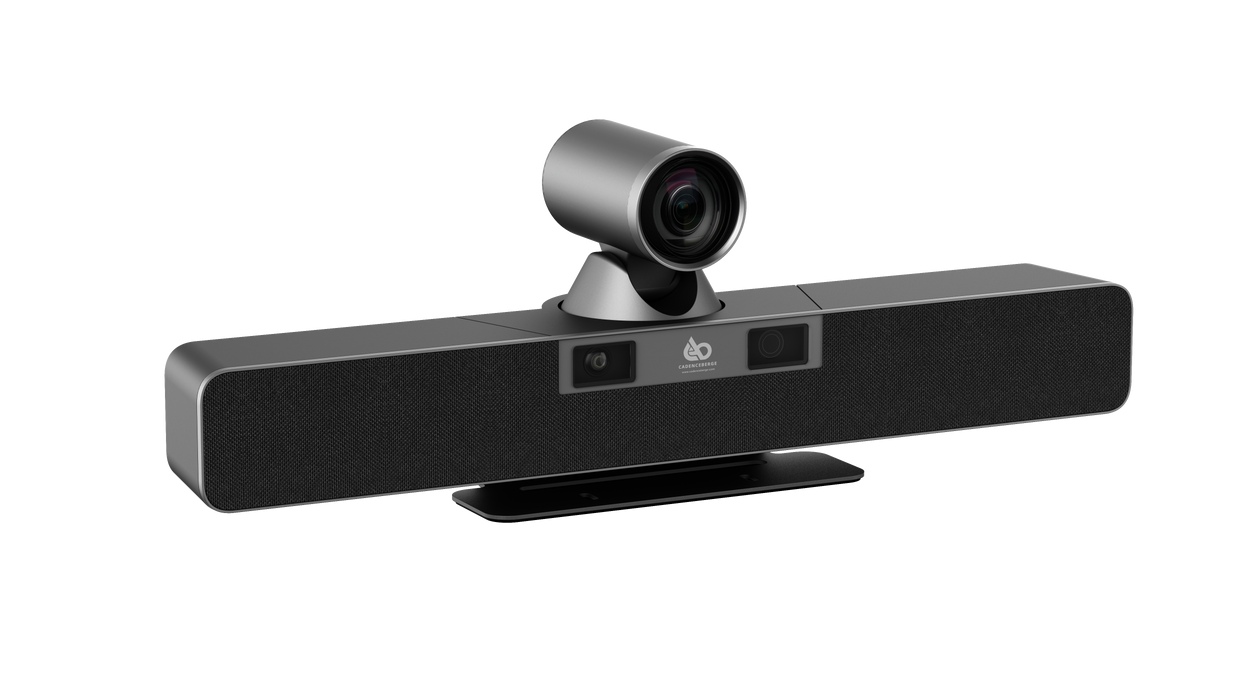

4K Dual-lens PTZ All in one Video Bar for UC Collaboration



Model No: CAD-200S



Product data sheet download

Product PPT Download

Product User Manual

BYOD Dongle usert manual

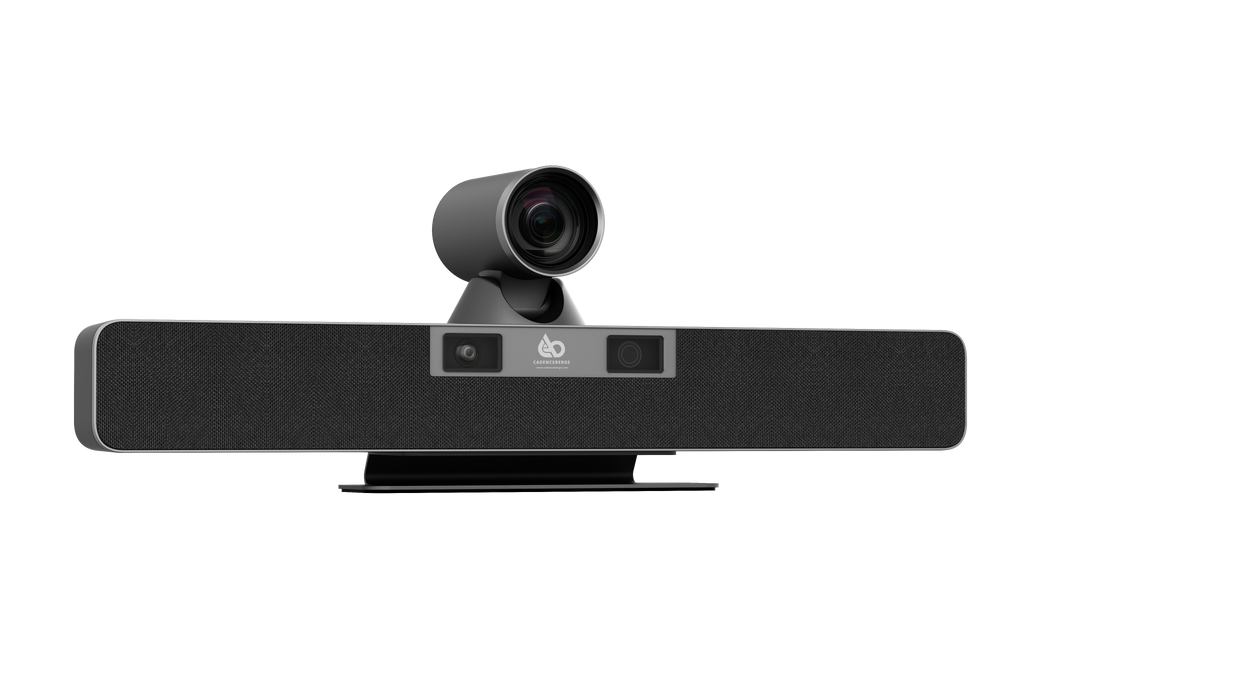

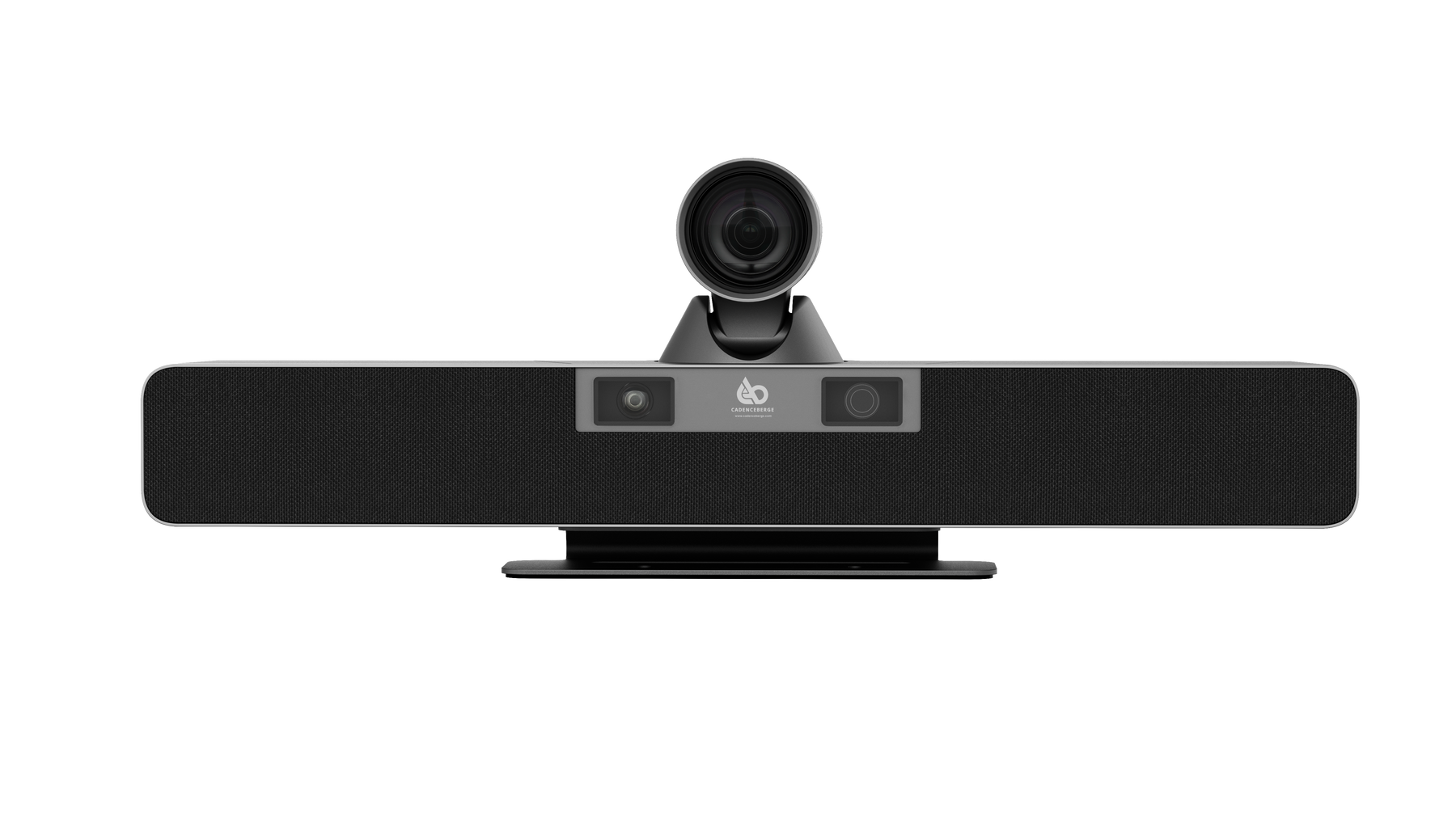

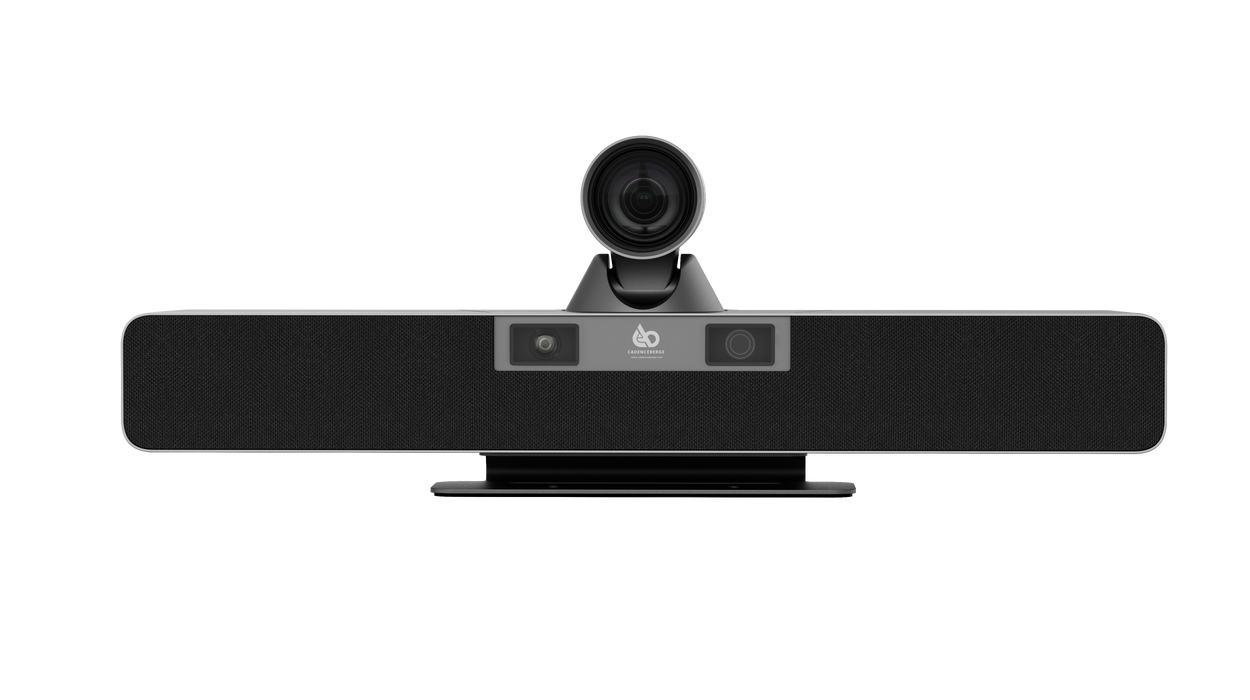

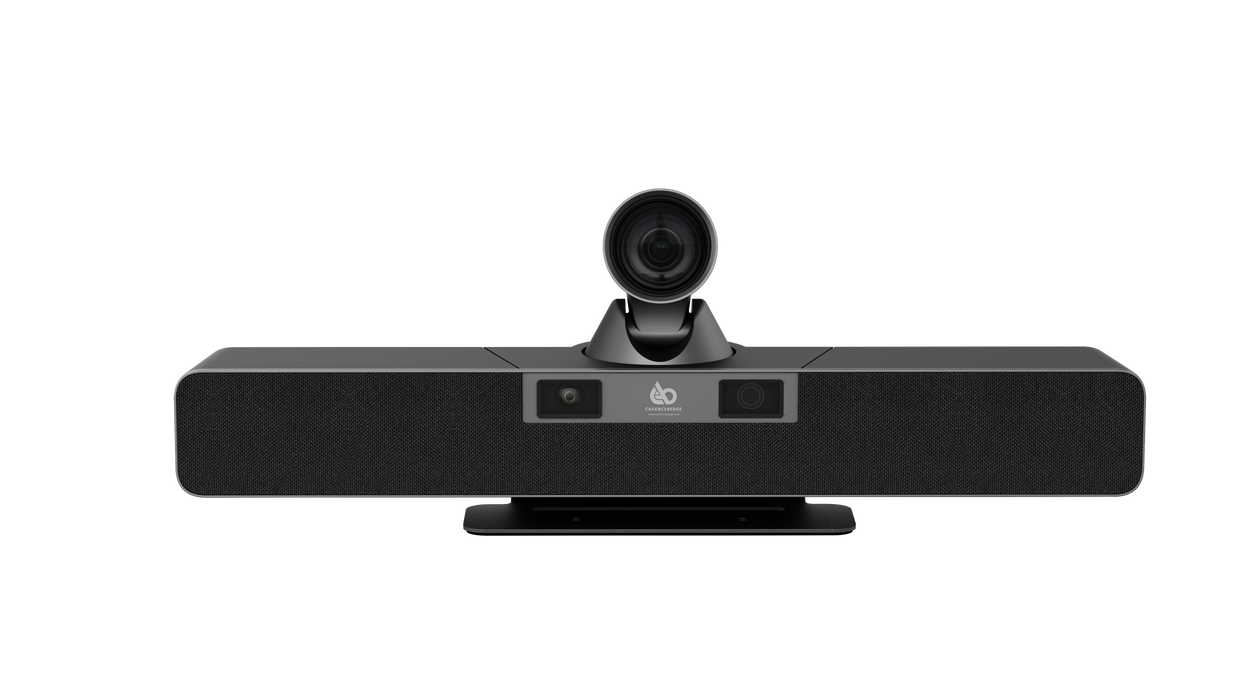

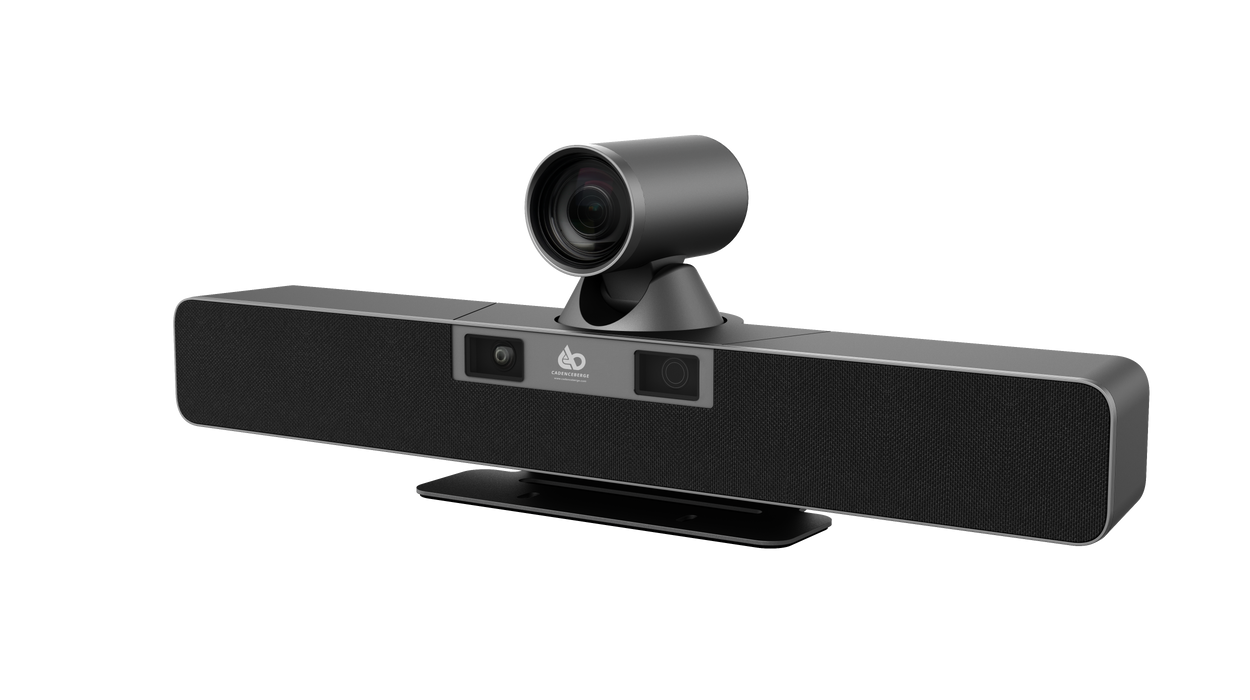

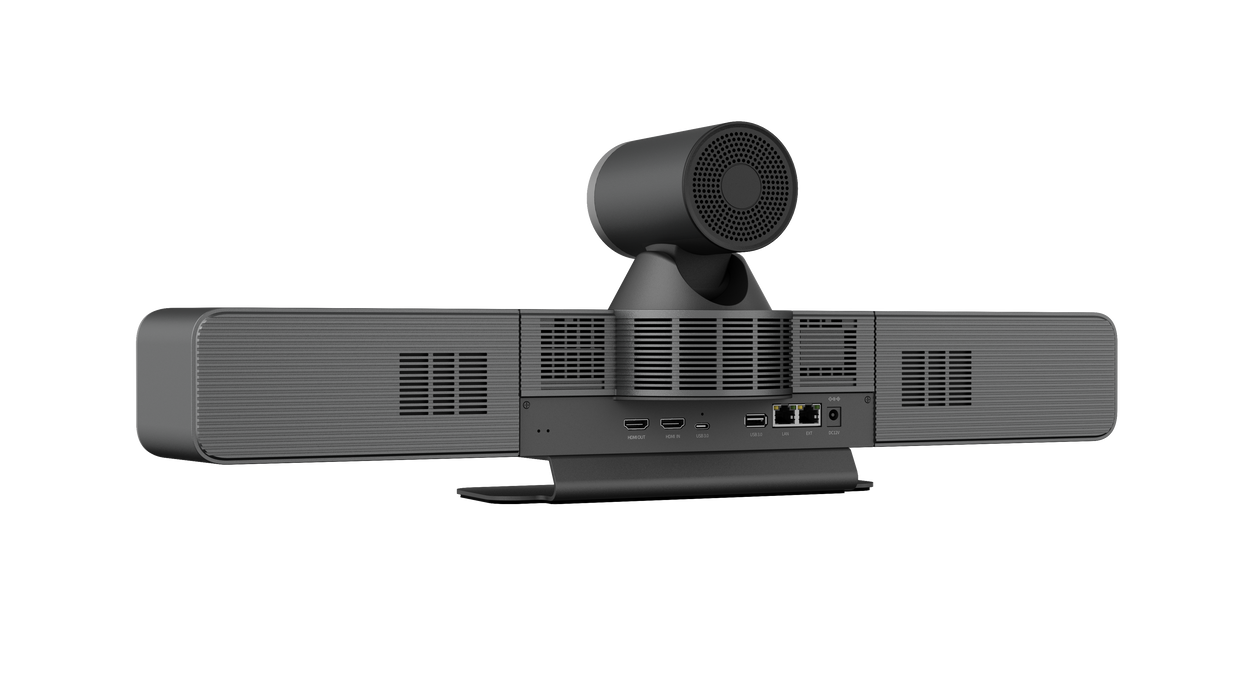

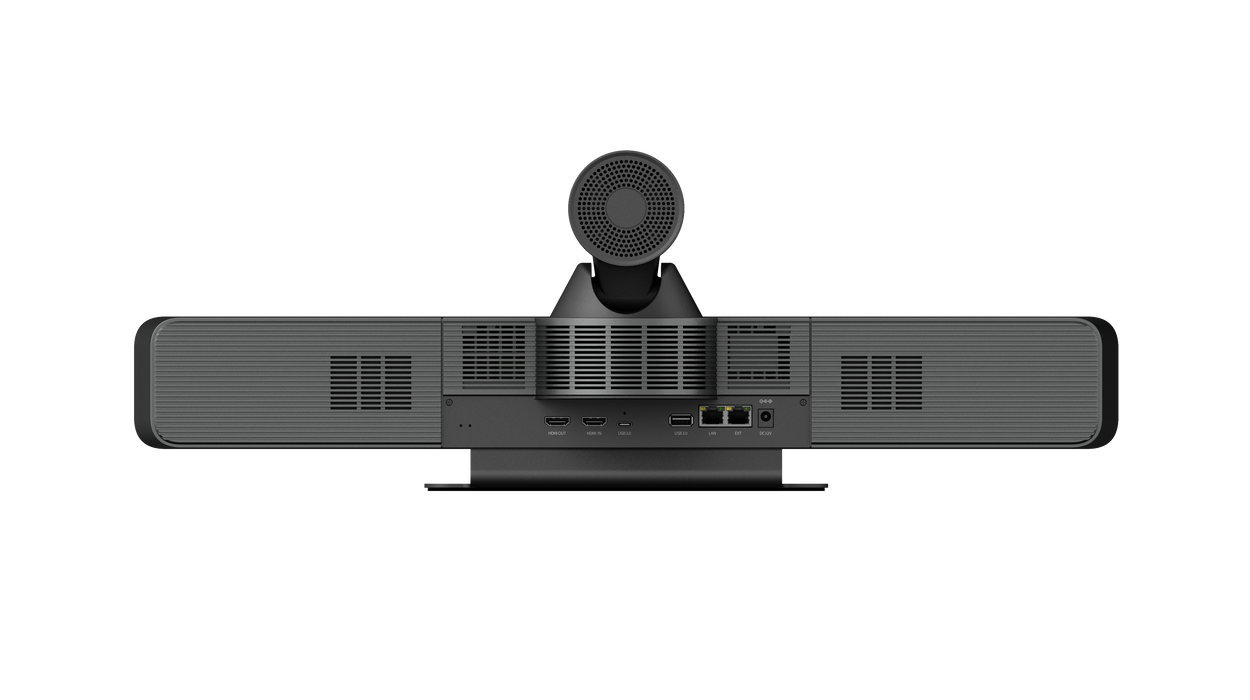

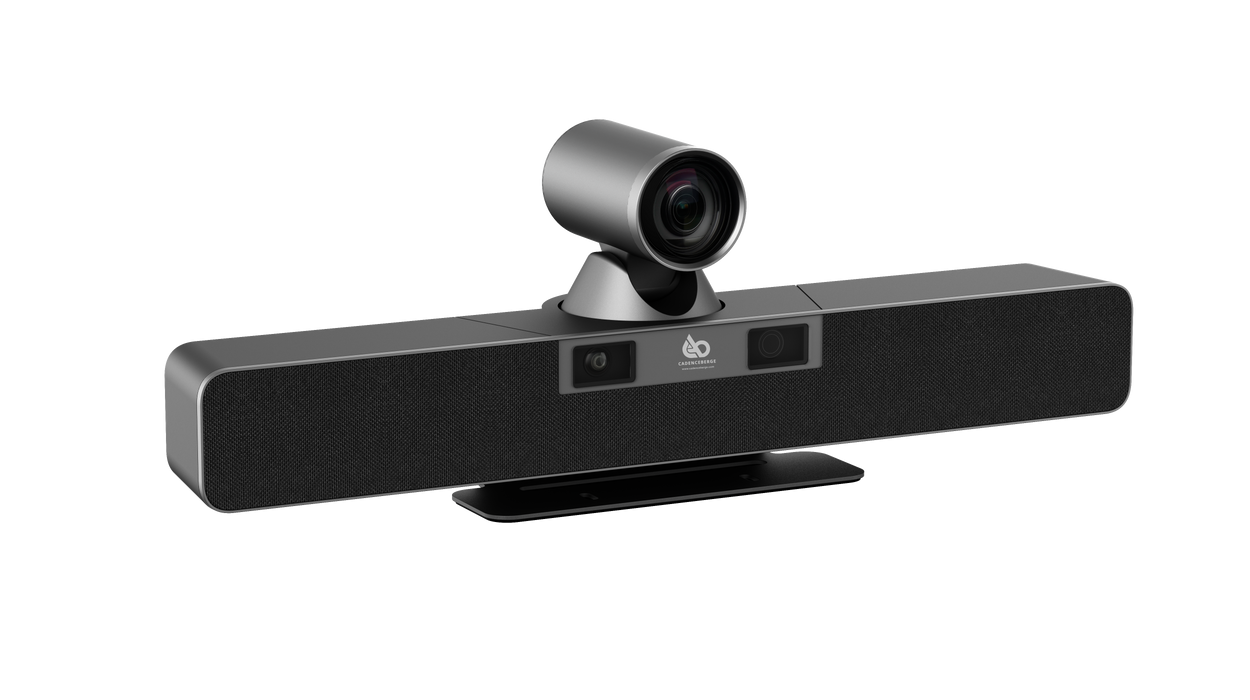

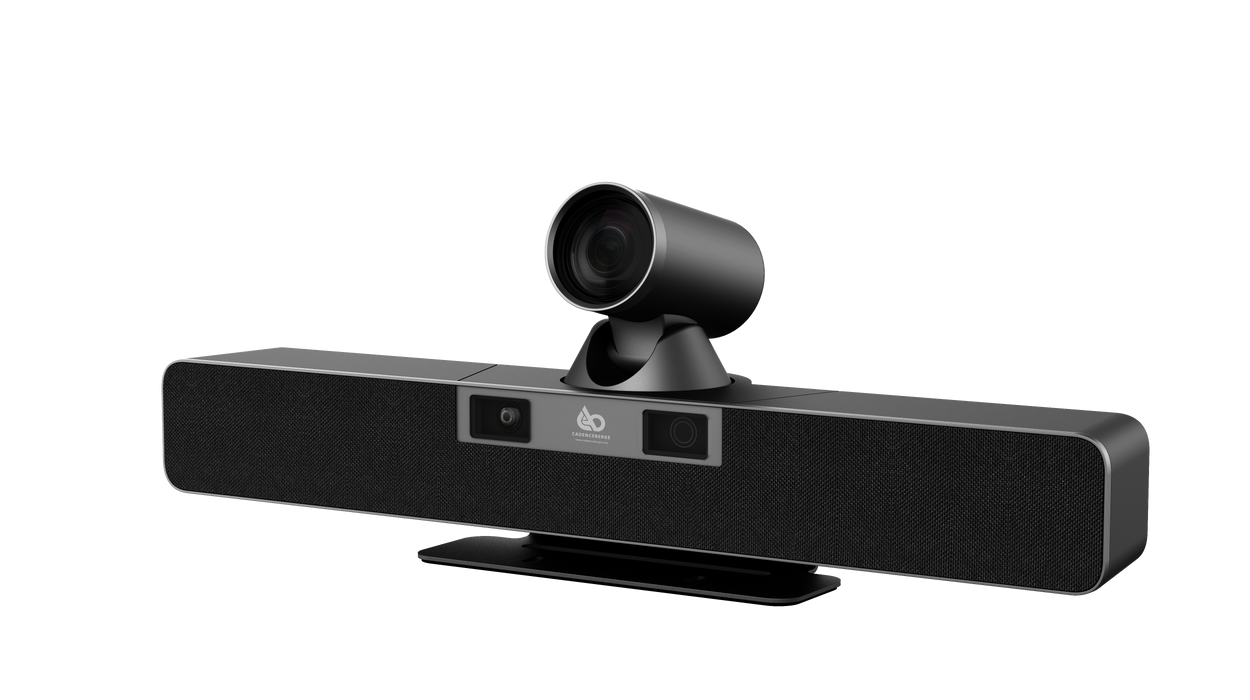

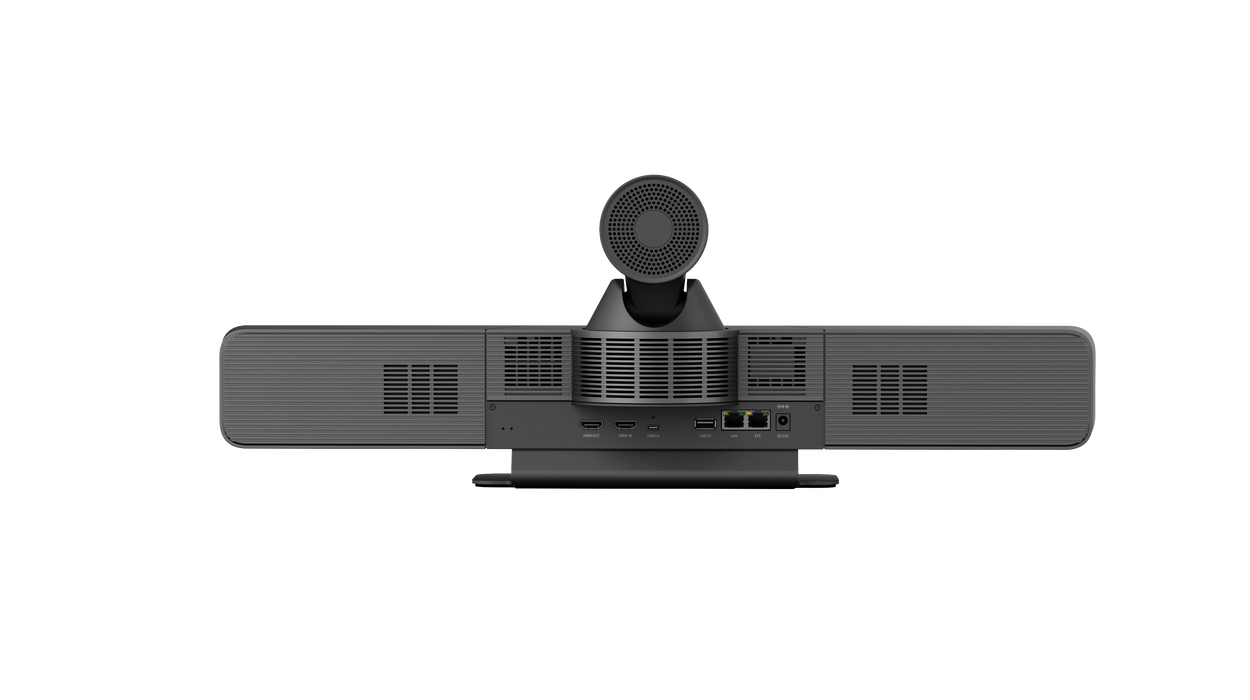

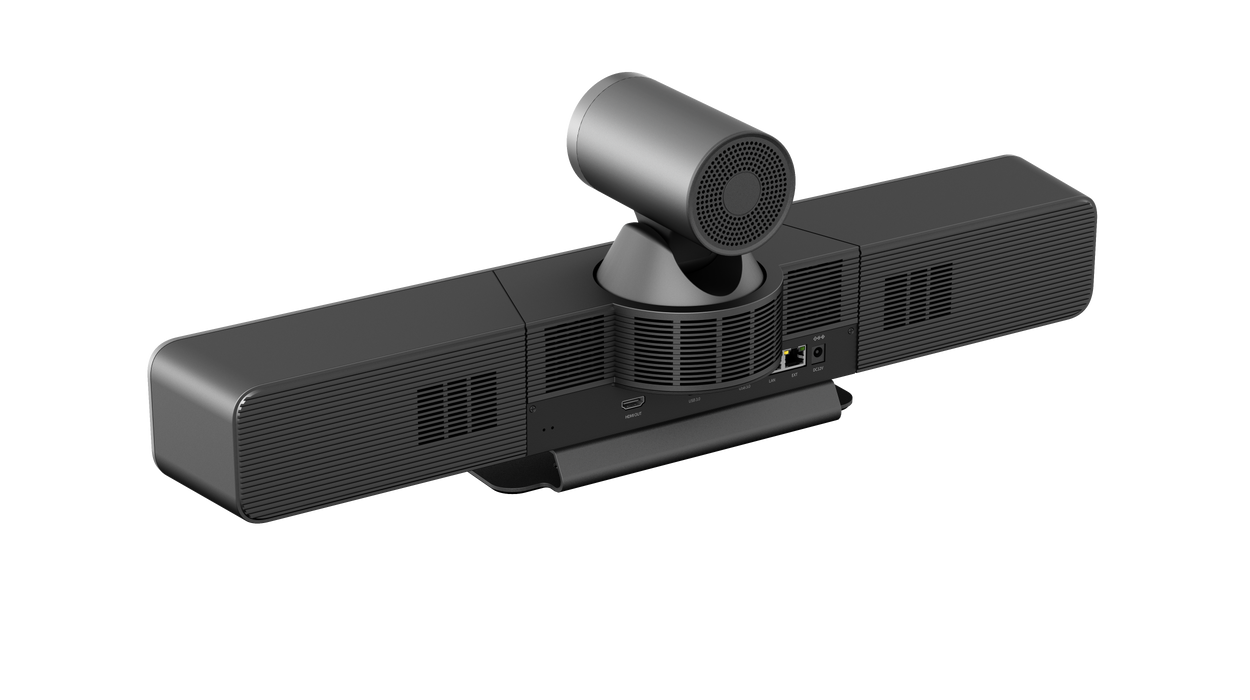

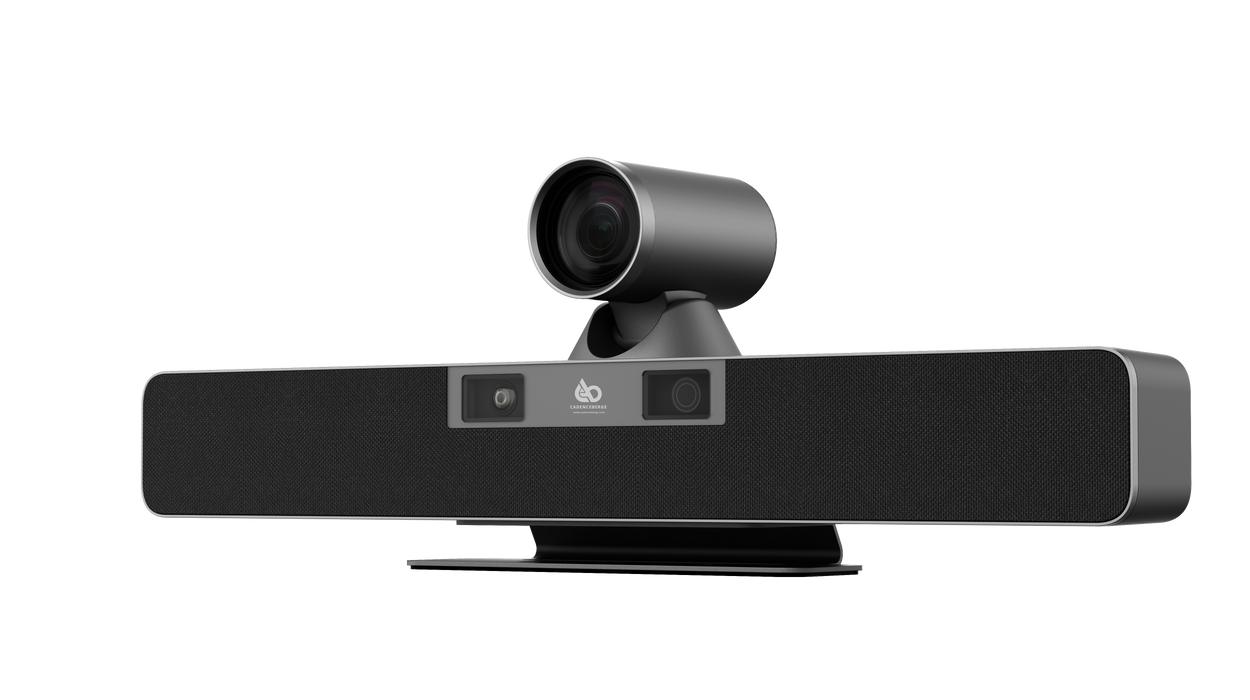

The CAD-200S is a 4K dual-lens video bar designed for medium to large meeting rooms. It combines ultra-high-definition cameras, a digital microphone, and a full-range speaker in one unit for easy setup. Advanced AI technology automatically adjusts the camera view to match meeting activity, enhancing collaboration.

Dual-Lens Integration

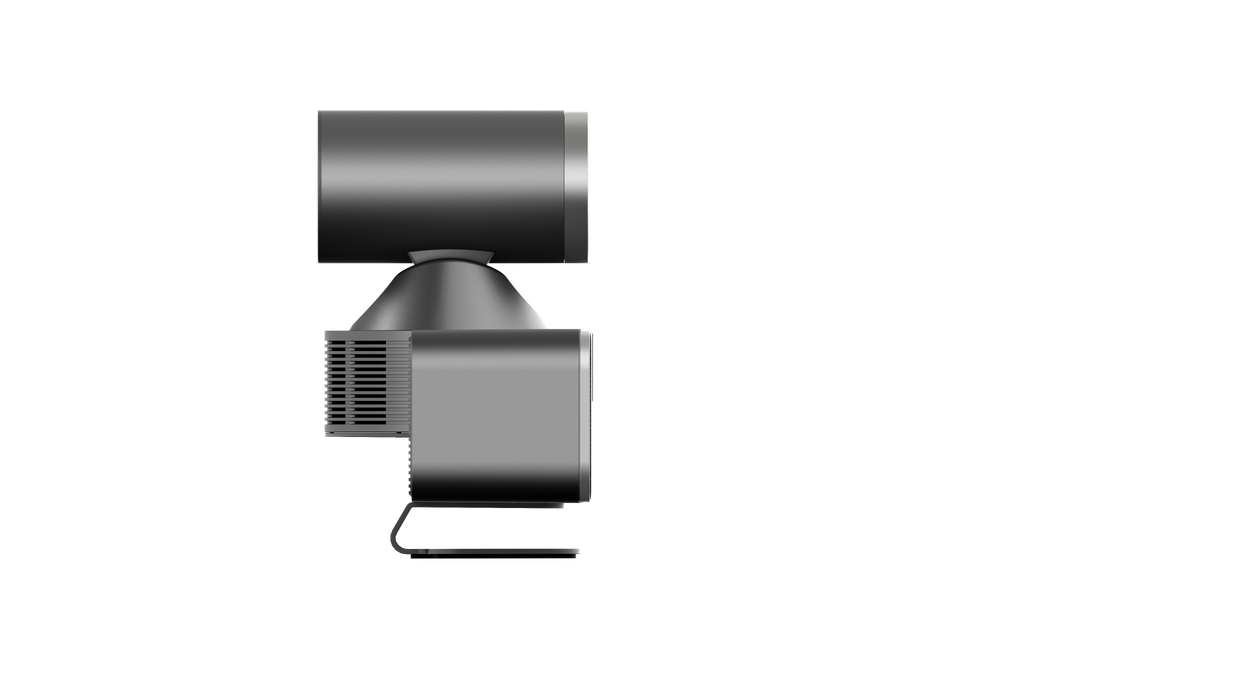

This video bar features dual 4K UHD lenses: a panoramic lens with a 120° wide view and a close-up lens with a 70° angle and 12x optical zoom. Its pan-tilt head rotates ±90°, allowing precise capture of distant meeting details.

All-in-One Integration

The device integrates a 4K panoramic camera, a 4K close-up camera, a digital microphone array, and a stereo speaker into a single unit, achieving high integration with minimal cabling. This streamlined setup ensures a professional audio-visual experience for meetings with ease of deployment.

Group Framing

Equipped with facial, human shape recognition, and intelligent framing algorithms, it can identify the number of participants and their positional changes, automatically moving the lens and adjusting the focus to achieve intelligent composition and optimal framing.

Speaker Tracking

The built-in sound source localization algorithm automatically directs the camera towards the speaker when someone is talking, presenting a close-up in the center of the screen, delivering a "face-to-face" communication experience.

Presenter Tracking

The speaker features built-in gesture recognition, Re-ID, and Re-Face track and capture shots as the speaker moves. recognition technologies, allowing it to activate tracking mode with simple gestures. The AI algorithm accurately identifies body shape and face,
enabling the close-up camera to automatically.

AI-Powered Audio 3A Algorithm

AI-driven audio algorithms based on deep learning effectively eliminate echo, noise, and reverb, ensuring clear full-duplex audio conversations.

8-Meter Pickup

The built-in 6 MEMS beamforming microphone array automatically locates the source of the speaker's voice and adjusts to precisely capture it, ensuring consistent audio pickup. Coupled with audio 3A processing algorithms, The pickup range of the device is 8 meters, meeting the needs of medium to large conference rooms.

POE Cascade Pickup

Built-in POE power supply network port, support cascade 3 M702 array microphone, can evenly cover a wider range of conference room scene, to provide equal and consistent pickup sound for each participant.

Full-Range Stereo Sound Reinforcement

Integrates a full-range high-fidelity speaker, professionally tuned to effectively reduce sound interference, outputting rich bass, full midrange, and clear treble, with natural and authentic human voices.

Wired and Wireless BYOM

Equipped with a built-in Wired Network or WiFi module, it supports participants using their familiar personal devices (such as laptops, smartphones, or tablets) to join meetings and access the integrated audio-video functions at any time. It also supports wired or wireless screen mirroring from computers to the device, allowing for local or remote meeting screen sharing without the need for cables.



Close-up Camera
Signal System 4KP30, 1080P30, 720P30 etc.
Sensor 1/2.5 inches, CMOS,
Effective Pixels: 8.29 Megapixels CMOS
Focal length 12x Optical zoom, f=4.4~51.1mm,
F1.8~2.6
Horizontal FOV 70° ~7.4°
Vertical FOV 40° ~4.2°
Pan Angle -90° ~ +90°
Tilt Angle -23° ~ +23°
Pan Speed 1.7° ~ 76° /s
Tilt Speed 0.5° ~ 15° /s
PTZ Support
Backlight Compensation Support
Digital Noise Reduction 2D&3D Digital Noise Reduction
SNR ≥ 50dB



Panoramic Camera
Signal System 4KP30, 1080P30, 720P30, 640*360P30
etc.
Sensor 1/2.8 inches, CMOS, Effective Pixels:
8.51 Megapixels CMOS
Lens Focal Length:2.8mm,
DFOV: 120° , HFOV: 110° , VFOV: 74.6°
EPTZ Support
Backlight Compensation Support
Digital Noise Reduction 2D&3D Digital Noise Reduction
SNR ≥ 50dB



Audio Spec
Speaker 2 full-range speakers,
individual output power: 8W
Microphone Array 6 beamforming microphones with 8m
pickup distance
Extended MIC Supports up to 3 microphones via DMIC
interface
Audio 3A Algorithm AI-Powered AEC/ANC/AGC
Sampling Rate Mic 48K,Speaker 48K
