4K All-in-One USB Video Bar device



Model: CAD-100S



Product data sheet download

Product PPT Download

Product User Manual

BYOD Dongle usert manual

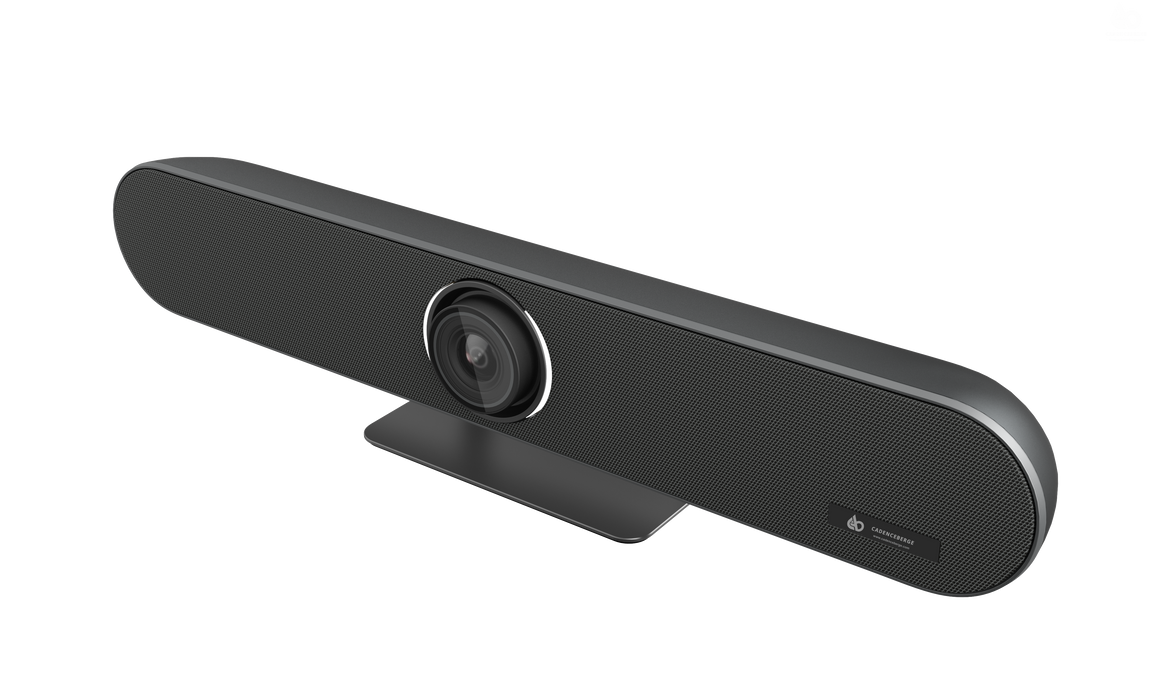

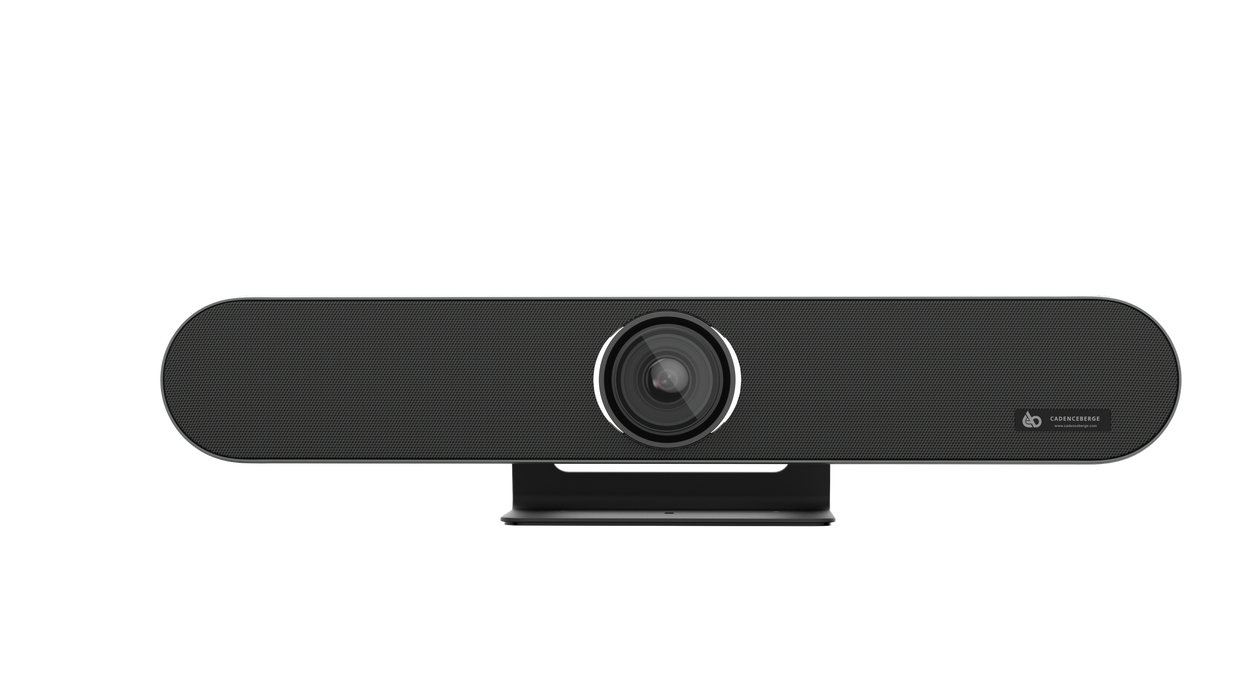

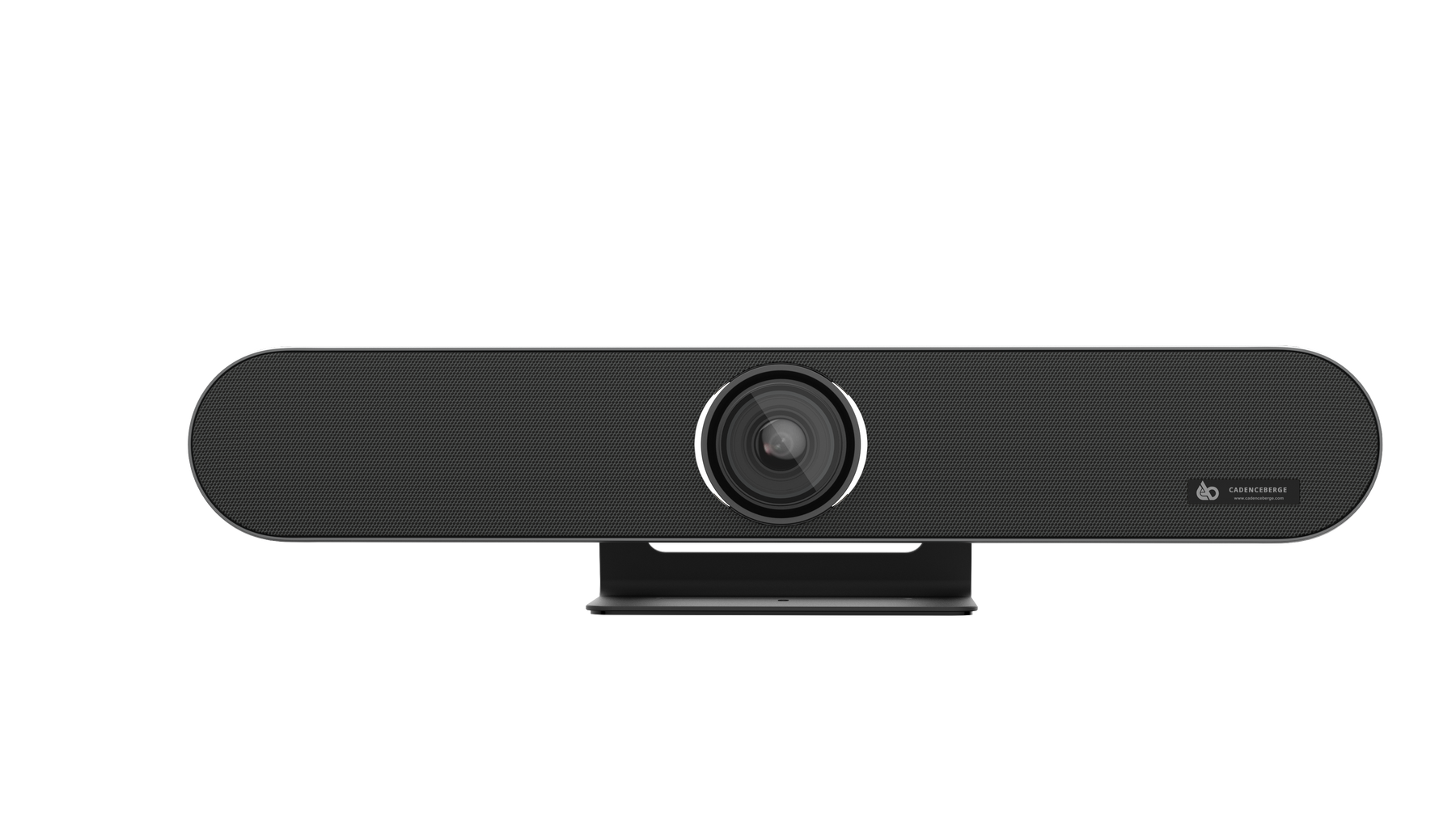

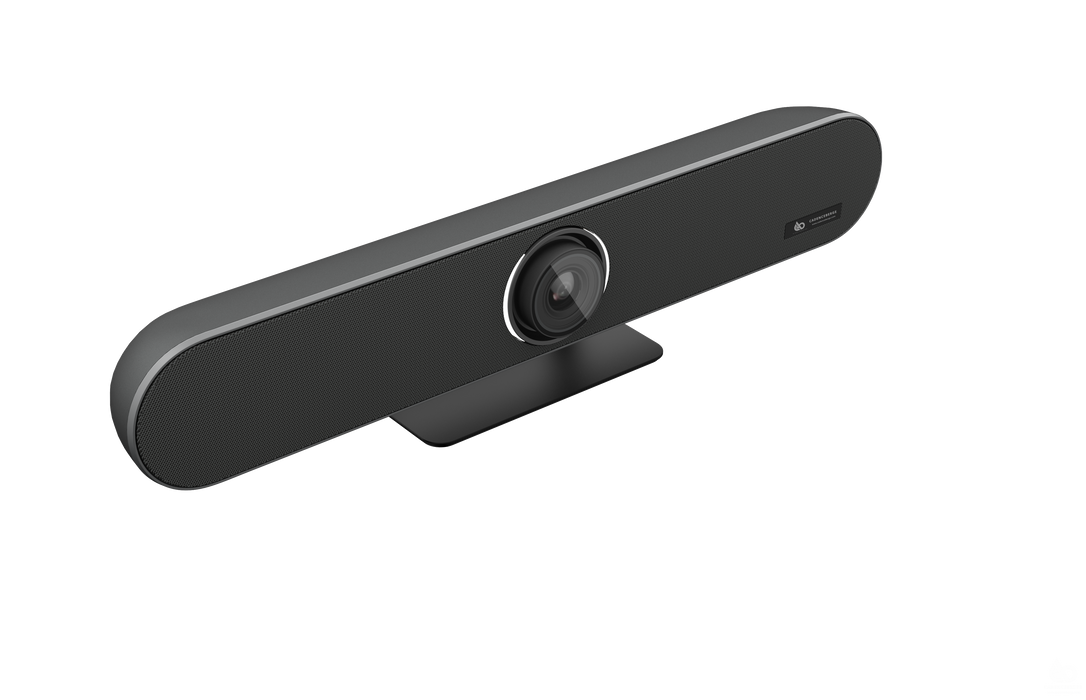

The CAD-100S is a USB video bar integrated device designed for small to medium-sized enterprise meeting spaces. It features a 4K ultra-high-definition camera, a digital microphone, and a full-range speaker in a three- in-one design that minimizes cabling. The video resolution reaches up to 20 megapixels, allowing remote participants to see a clear panoramic view and close-ups of individuals in the meeting room. With multiple AI video processing algorithms, it enables efficient and intelligent remote communication and collaboration without the need for manual intervention.

Features

Integrated Design
The all-in-one design combines a 4K UHD camera, beamforming
microphone, and full-range speaker, simplifying setup and
making video communication seamless.

20MP Ultra-Sharp Visual Experience
Featuring a 1/1.8-inch, 20-megapixel UHD CMOS sensor, it
delivers clear 4K (3840x2160) video at 30fps. It's also backward
compatible with 1080P and 720P to suit different video needs.

Wide Field of View
With a 120 ° wide field of view (110 ° horizontal), 5x digital
zoom, and built-in electronic pan / tilt( ±15° ),the optical lens
is designed for conference use, ensuring clear coverage of all
participants.

AI-Powered Intelligent Camera Technology
Built-in AI algorithms for face and human shape recognition
automatically adjust the lens to frame participants as they move.
The sound source positioning algorithm locks onto the speaker,
focusing on them without manual intervention.

AI-Powered Audio 3A Algorithm
AI-driven audio algorithms based on deep learning effectively
eliminate echo, noise, and reverb, ensuring clear full-duplex
audio conversations.

6m Pickup
The beamforming microphone uses a low-distortion lateral
beamforming algorithm to directly target the speaker, ensuring
balanced audio pickup with the range of up to 6 meters.

POE Cascade Pickup
Built-in POE power supply network port, support cascade 3
M702 array microphone, can evenly cover a wider range of
conference room scene, to provide equal and consistent pickup
sound for each participant.

Full-Range Sound Reinforcement
Integrates a full-range high-fidelity speaker, professionally tuned
to effectively reduce sound interference, outputting rich bass, full
midrange, and clear treble, with natural and authentic human voices.

Wired & Wireless BYOM
Equipped with a built-in Wired Network or WiFi module, it
supports participants using their familiar personal devices (such
as laptops, smartphones, or tablets) to join meetings and access
the integrated audio-video functions at any time. It also supports
wired or wireless screen mirroring from computers to the device,
allowing for local or remote meeting screen sharing without the
need for cables.

Product Specification



Camera
Video Resolution 4K@30fps, 1080P@30fps, 720P@30fps, etc.
Sensor 1/1.8 inches, CMOS, effective pixels: 20 million
Optical Lens 114° (DFOV), 105° (HFOV), 5x digital zoom,
horizontal/tilt ±15
PTZ Mechanical pan/tilt (MPTZ) + EPTZ
Digital Noise Reduction 2D & 3D Digital Noise Reduction
Signal-to-Noise Ratio ≥ 55dB
BLC Support

USB Features
Connection Type USB 3.0, backward compatible with USB2.0
Color Space/ Compression MJPEG / YUY2
USB Audio 32K sampling rate, support UAC1.0
UVC PTZ Control Support (ePTZ)
USB Video Communication Protocol UVC 1.1

Audio
Full Range Speakers 96 dB SPL at 0.5 m
Microphone Array Beamforming microphone, pickup distance 6 meters
Extended MIC Support (Optional)

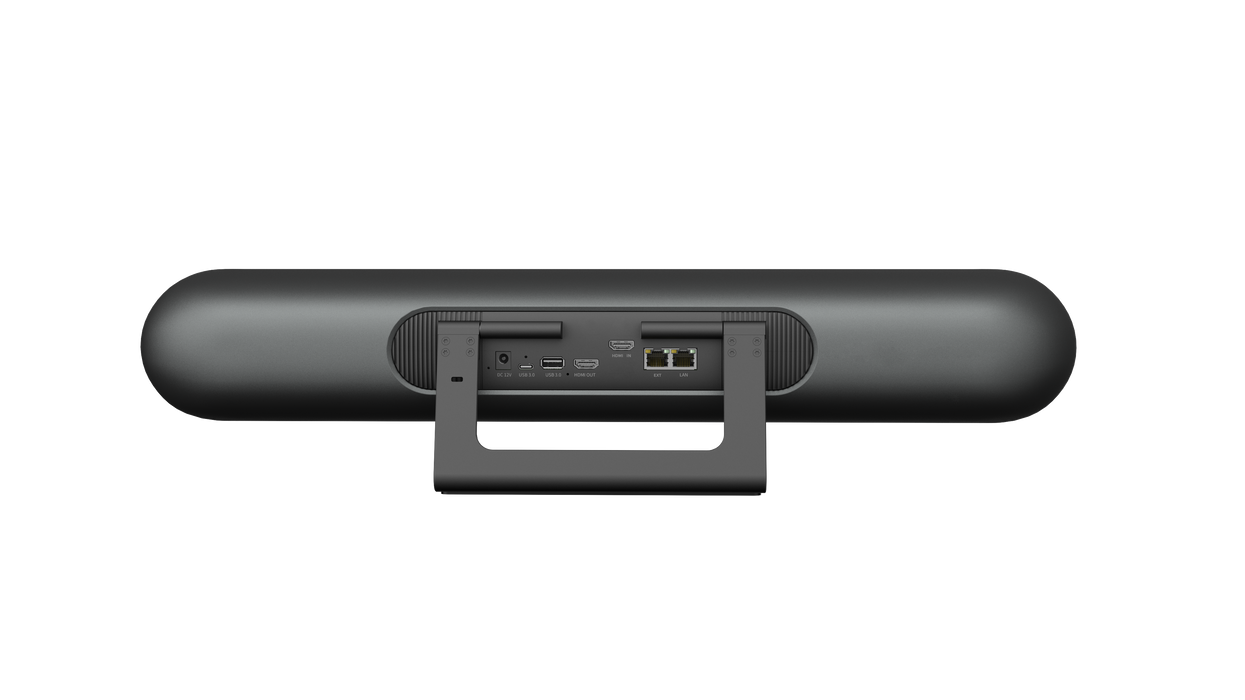

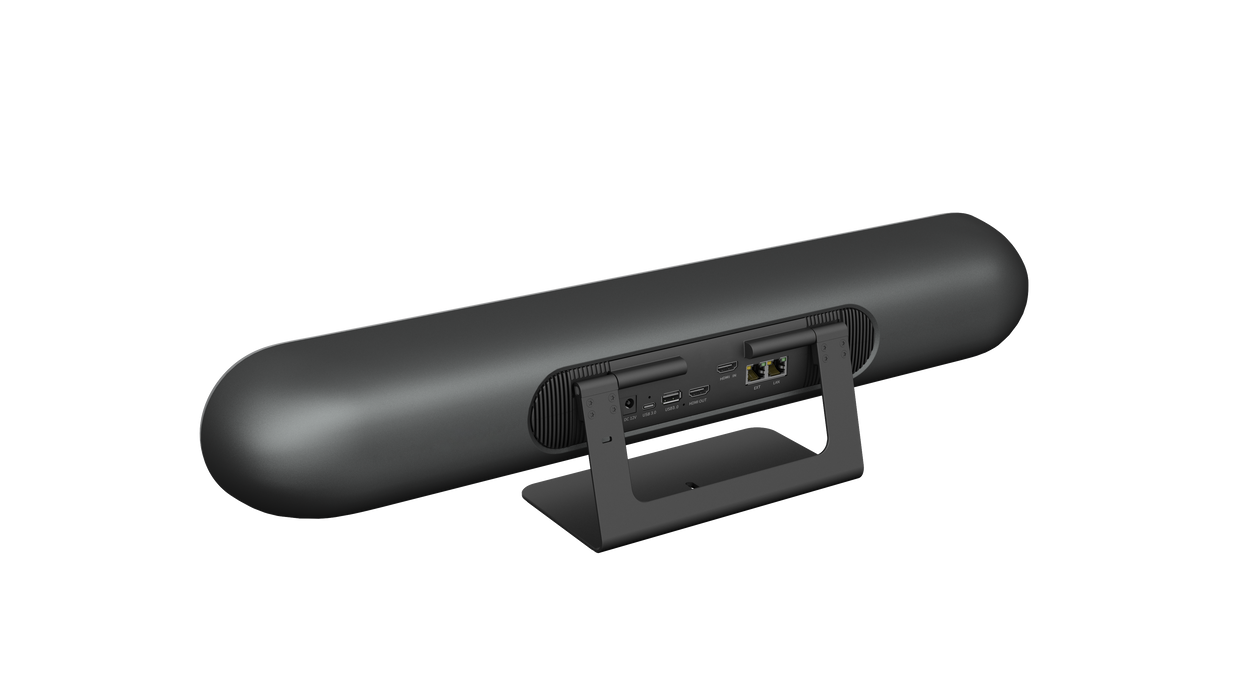

I/O Interface
USB 3.0 1 × USB3.0, Type-C, female connector, supports audio and video transmission, supports firmware upgrade
HDMI 1 × HDMI, supports local video display
USB 2.0 1 × USB2.0, Type-A, female, connect to USB wired expansion microphone
Power Interface 1 power interface
Remote Control Support
Bluetooth Bluetooth 5.3, supports Bluetooth connection to mobile phones, laptops and other devices, and transmits audio
Wifi Wifi 6, supports BYOM wireless transmission and BYOD wireless screen projection (extra screen projection device is required)
Network Port
1 × RJ45, connect to network port expansion microphone, support PoE power supply
1 × RJ45, 10/100M adaptive Ethernet port, supports network transmission of audio and video

Other specifications
Installation Supports multiple installation options such as desktop, wall, TV, etc.
Standard Cables USB cable
Security Anti-theft lock jack

Power Supply DC 12V, 2A (MAX)
Operating Temperature 0°C ~ 40°C
Dimensions (L x H x D) 600mm*135mm*117mm
Stored Temperature -40°C ~ 60°C
Net Weight 2.5 Kg
