Introduction

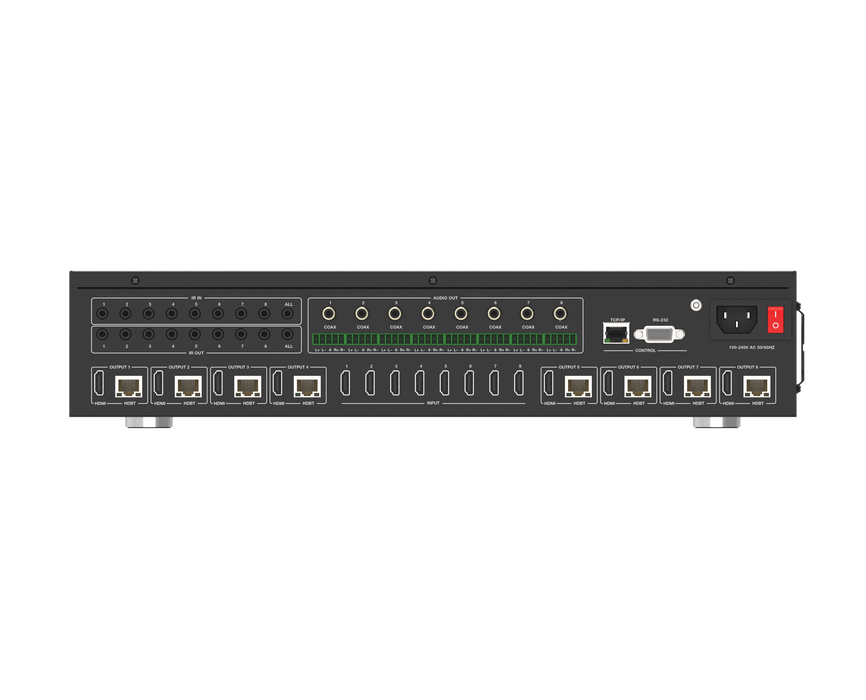

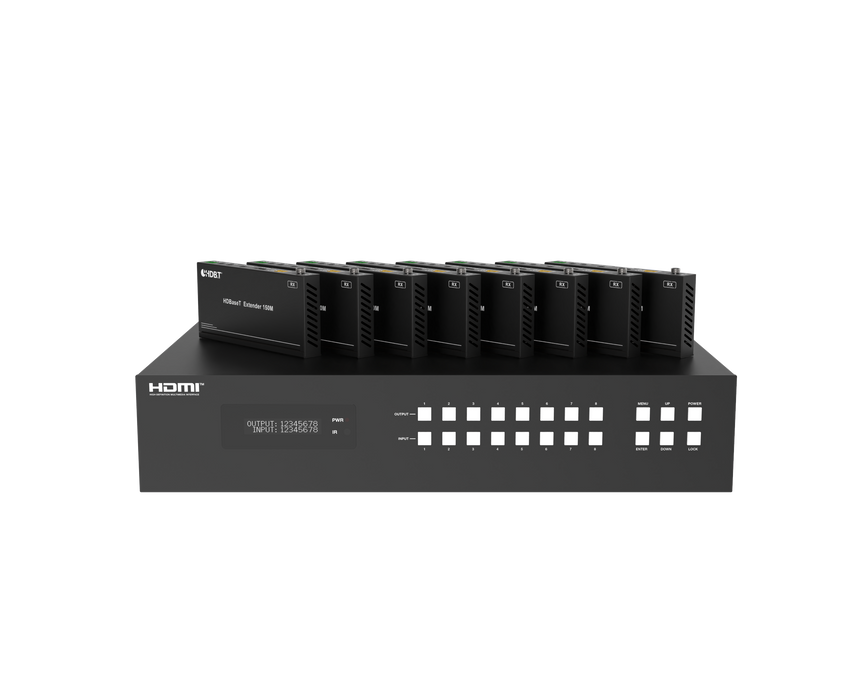

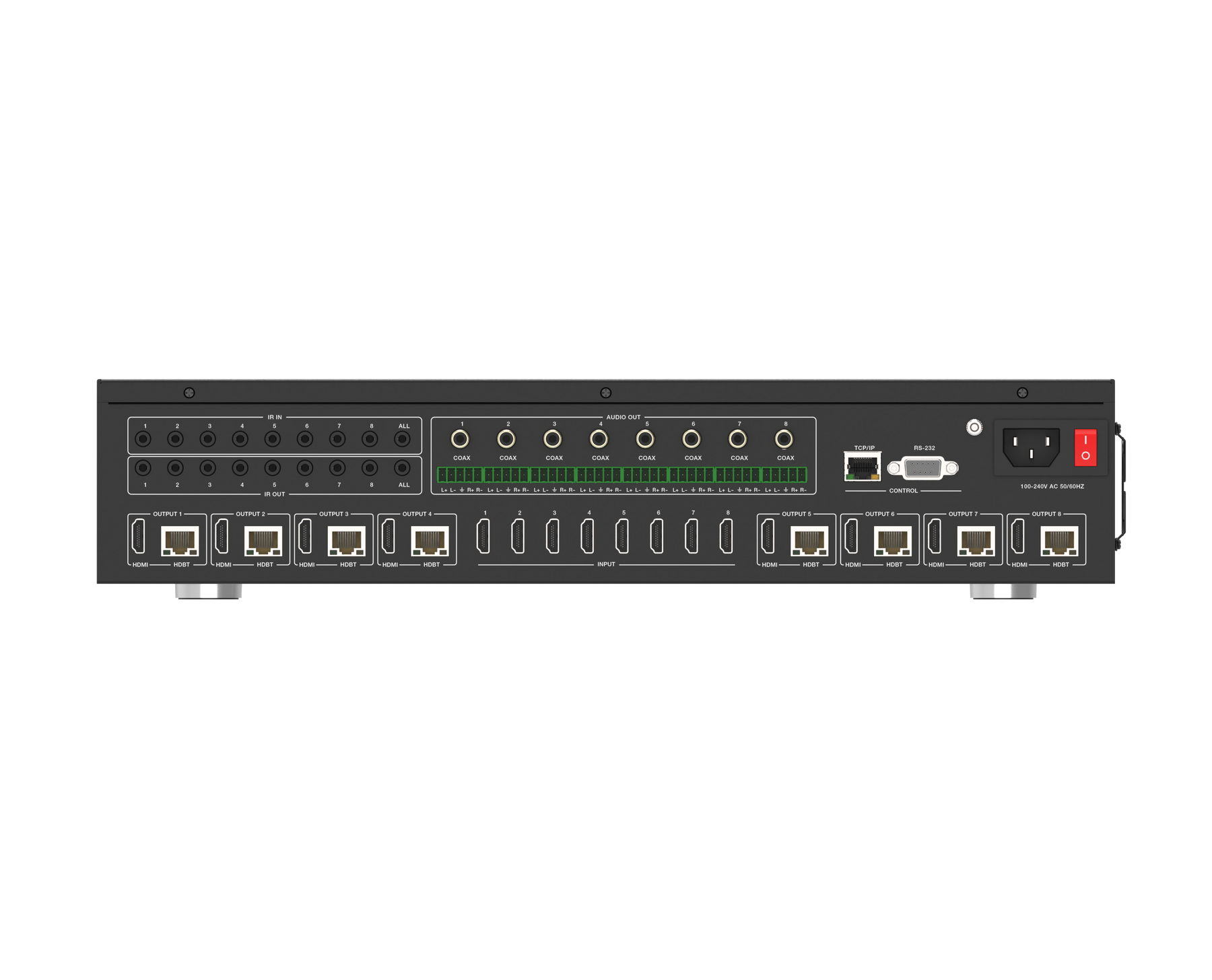

The 18Gbps 8x8 HDBaseT(150M) Matrix can connect 8 HDMI™ sources to 16 displays. It features 8 HDMI™ outputs and each HDMI™ output is mirrored to provide a CAT-Cable output which runs simultaneously. HDBaseT output can extend video transmission distance up to 492ft/150m (1080P) or 394ft/120m (4K2K) via a single CAT 5e/6/7 cable. The product supports video resolution up to 4K2K@60Hz 4:4:4. Audio de-embedded to analog and coaxial audio is supported. Each HDMI™ output supports 4K2K to 1080P downscaler independently.

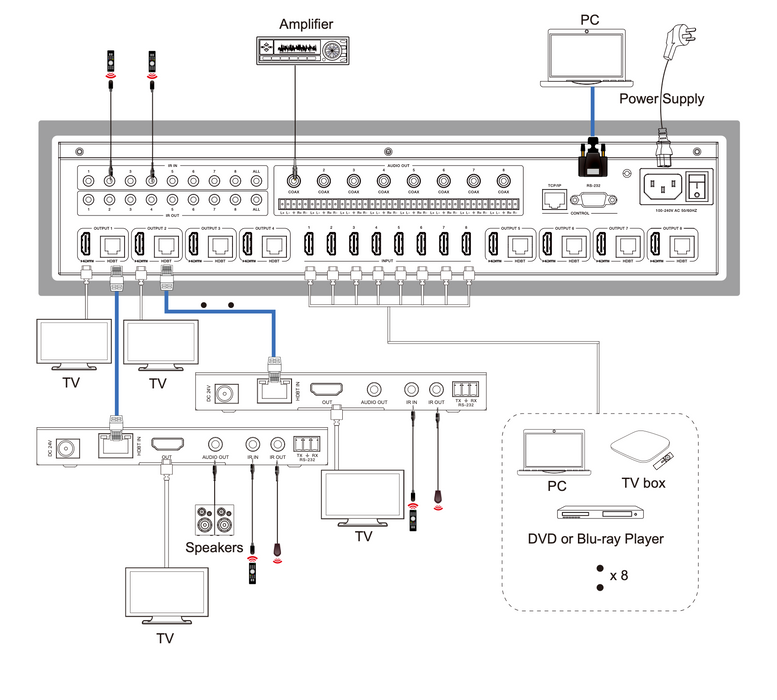

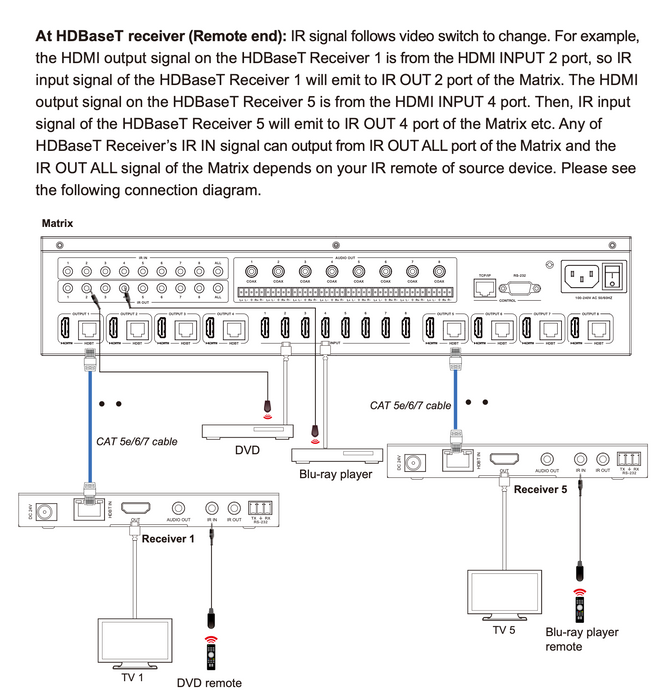

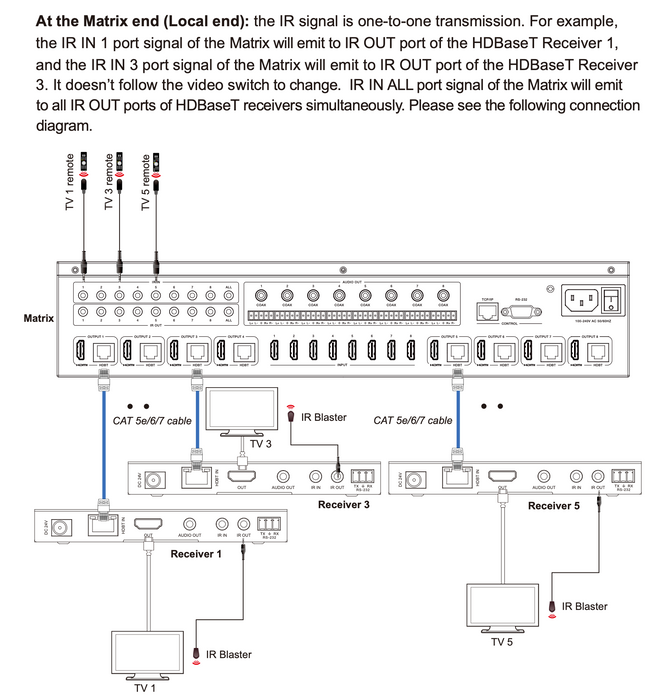

The product supports IR matrix. The IR signal is one-to-one control at the Matrix end, but the IR signal follows HDMI™ video channel at the HDBaseT Receiver end.

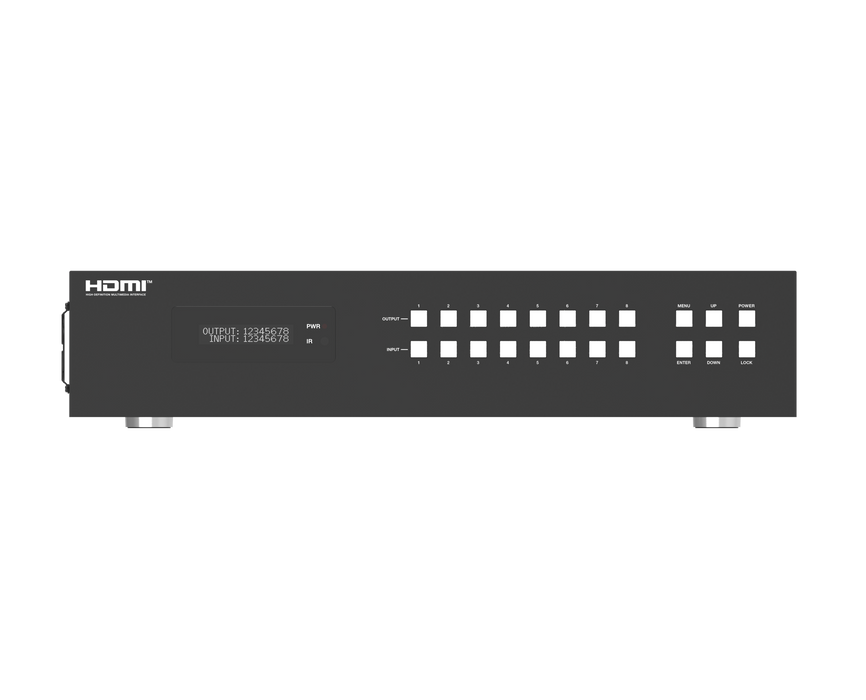

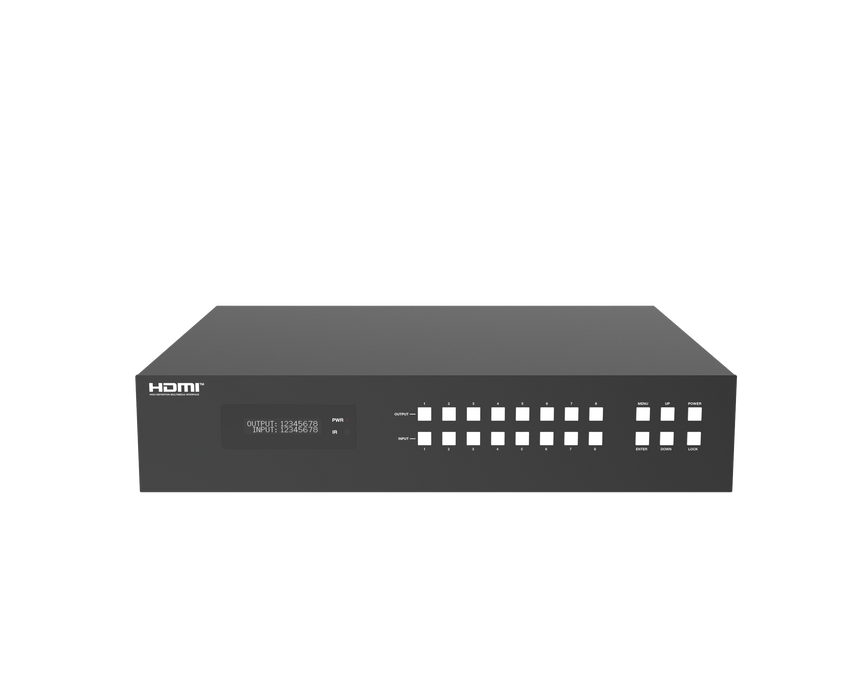

The product provides an intuitive set of front panel with OLED screen and supports control viafront panel buttons, IR remote, RS-232, LAN, and Web GUI.

 Features

☆ HDCP 2.2 and HDCP 1.x compliant

☆ Video resolution up to 4K2K@60Hz (YUV 4:4:4) on all HDMI™ & HDBaseT ports, as

specified in HDMI™ 2.0b

☆ 8x HDMI™ inputs, 8x HDMI™ & HDBaseT mirrored outputs

☆ HDMI™ ports transmit 18Gbps lossless uncompressed video bandwidth

☆ Support 18Gbps lossless compressed HDBaseT signal transmission

☆ Support 4K->1080P Down Scaler for each output port

☆ HDR, HDR10, HDR10+, Dolby Vision, HLG are supported

☆ HDBaseT output can extend video transmission distance up to 492ft/150m for

1080P or 394ft/120m for 4K2K via a single CAT 5e/6/7 cable

☆ HDMI™ audio pass-through up to 7.1CH HD audio (LPCM, Dolby TrueHD and DTS-HD Master Audio)

☆ Support IR matrix

☆ Audio de-embedded is supported via analog and coax ports

☆ Advanced EDID management and CEC control are supported

☆ 24V PoC on all HDBaseT ports

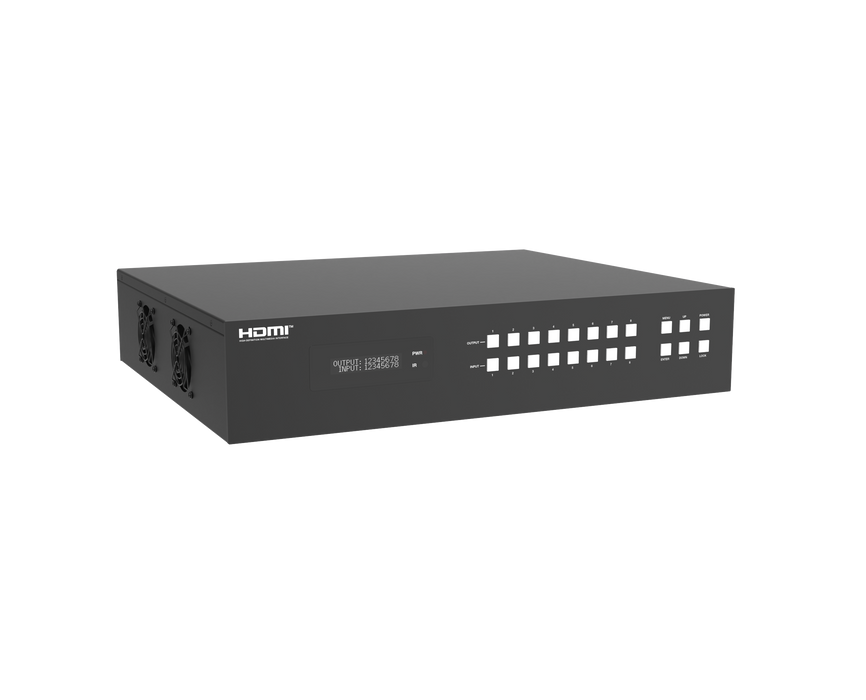

☆ 2U rack mounted design with front panel OLED display

☆ Control via front panel buttons, IR remote, RS-232, LAN and Web GUI
