Model : CAD-MXC88A
Product catalogue pdf
Introduction
The 48Gbps 8K 8x8 HDMI Matrix supports the transmission of high resolution video (resolution up to 4K2K@120Hz 4:4:4 12bit and 8K4K@60Hz 4:2:0 12bit) and multi- channel digital audio (such as LPCM 7.1CH, Dolby Atmos, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio) from 8 HDMI sources to 8 HDMI displays. Resolution downscaling and HDR conversion for each HDMI output are also supported.

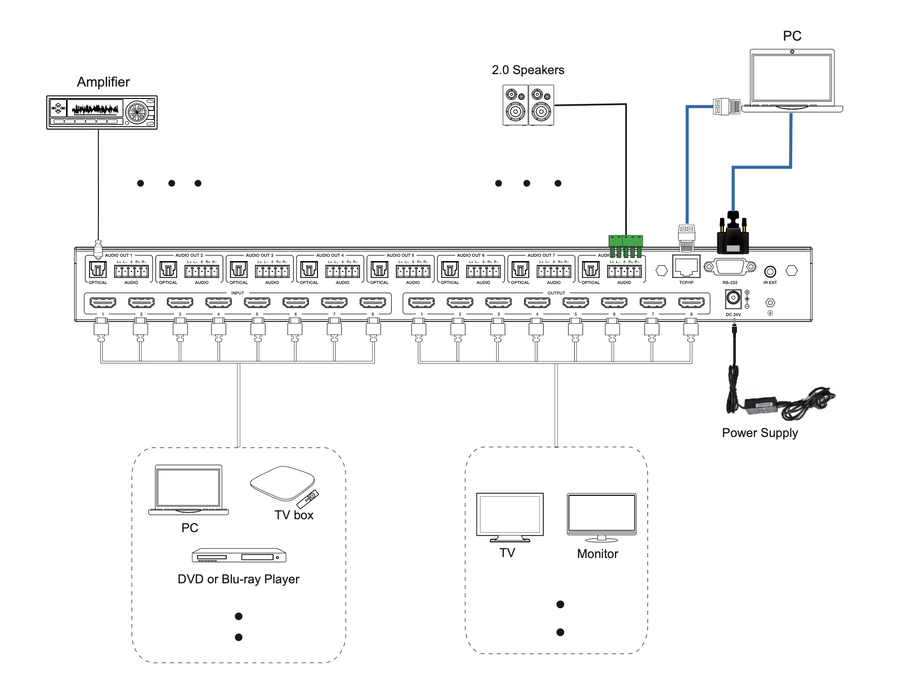

It works with Blue-Ray players, Set-Top boxes, Home Theater PCs, and game consoles which connect to an HDMI display, and can be controlled via front panel buttons, IR remote, RS-232, and Web GUI.
Features
■ HDCP 2.3 compliant
■ 8 × HDMI inputs can be independently routed to 8 × HDMI outputs
■ Video resolution is up to 8K60Hz 4:2:0, 8K30Hz 4:4:4 and 4K120Hz 4:4:4, as
■ specified in HDMI 2.1
■ Support 48Gbps video bandwidth
■ HDR, HDR10, HDR10+, Dolby Vision pass-through
■ Support resolution downscaling and HDR conversion for each output port
■ VRR, ALLM, QMS, QFT, SBTM are supported

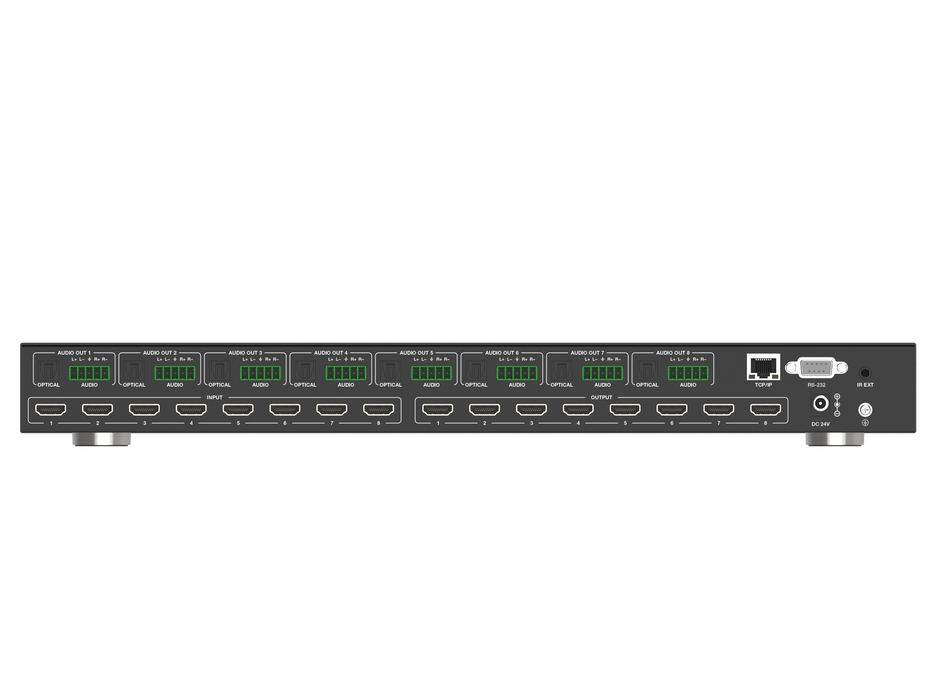

■ Support optical audio and balanced analog audio output
■ Advanced EDID management

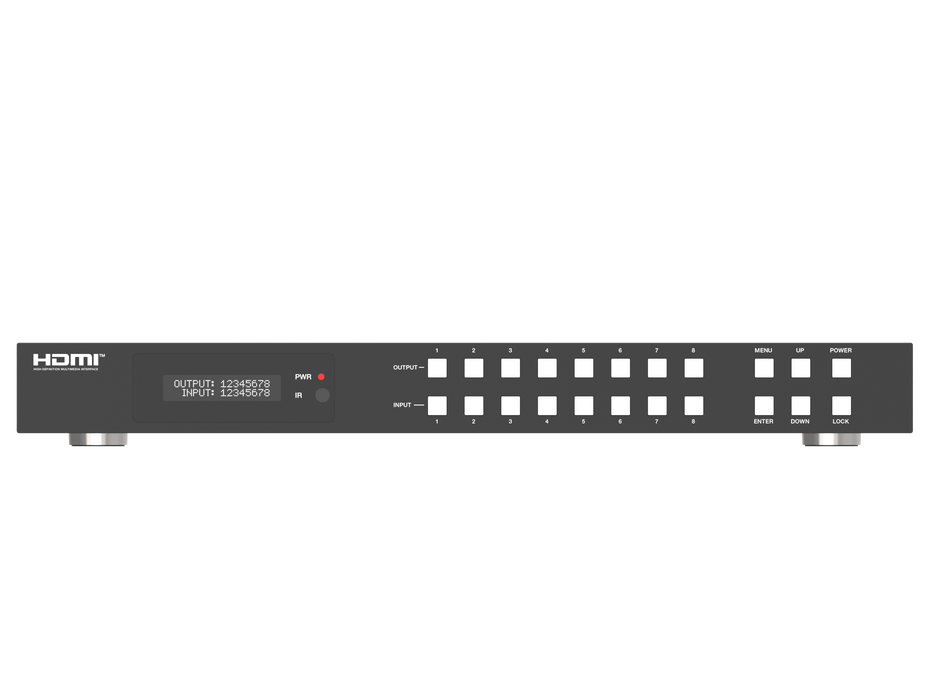

■ Control via front panel buttons, IR remote, RS-232, and Web GUI
Package Contents
1. 1 × 48Gbps 8K 8×8 HDMI Matrix
2. 1 × 24V/3.75A Locking Power Adapter
3. 1 × IR Remote
4. 1 × IR Wideband Receiver Cable (12V, 1.5m)
5. 1 × AC Power Cord (1.5m)
6. 1 × RS-232 Serial Cable (1.5m, male to female head)
7. 8 × 5pin-3.81mm Phoenix Connector
9. 8 × Machine Screw (KM3*6)
10. 2 × Mounting Ear
11. 1 × User Manual
