Model : CAD-MX988H
Introduction

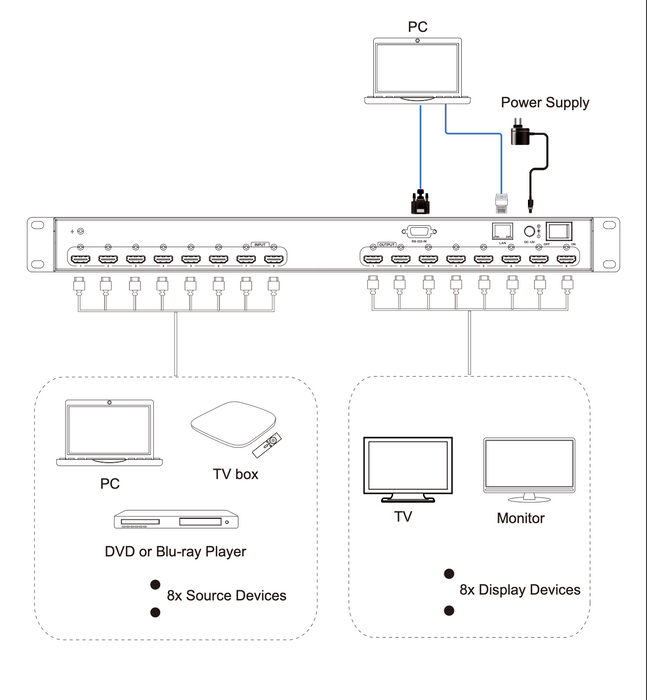

This 4K30 HDMI Matrix is a perfect solution for video transmission from eight HDMI sources
to eight HDMI displays. 8 channel inputs support video resolution up to 4K30Hz. 8 channel
outputs support independent resolution scaler mode (Bypass/4K->1080P/Auto). This matrix
supports up to 8 scene presets, which can be saved, recalled or cleared. Advanced EDID
management is supported.
This matrix can be controlled through the front panel buttons, IR remote control, RS-232
commands and Web GUI.
Features
☆ 8x8 matrix switching
☆ HDCP 2.2 compliant
☆ Supports 10.2Gbps video bandwidth
☆ 8 channel inputs support video resolution up to 4K30Hz, as specified in HDMI 1.4
☆ 8 channel outputs support independent resolution scaler mode (Bypass/4K->1080P/Auto)
☆ HDMI audio formats: LPCM 2.0/5.1/7.1CH, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby
TrueHD, DTS-HD Master Audio, Dolby Atmos, DTS:X
☆ Advanced EDID management, supporting preset EDID, copy EDID, custom EDID (upload)
☆ Up to 8 preset scenes, which can be saved, recalled or cleared

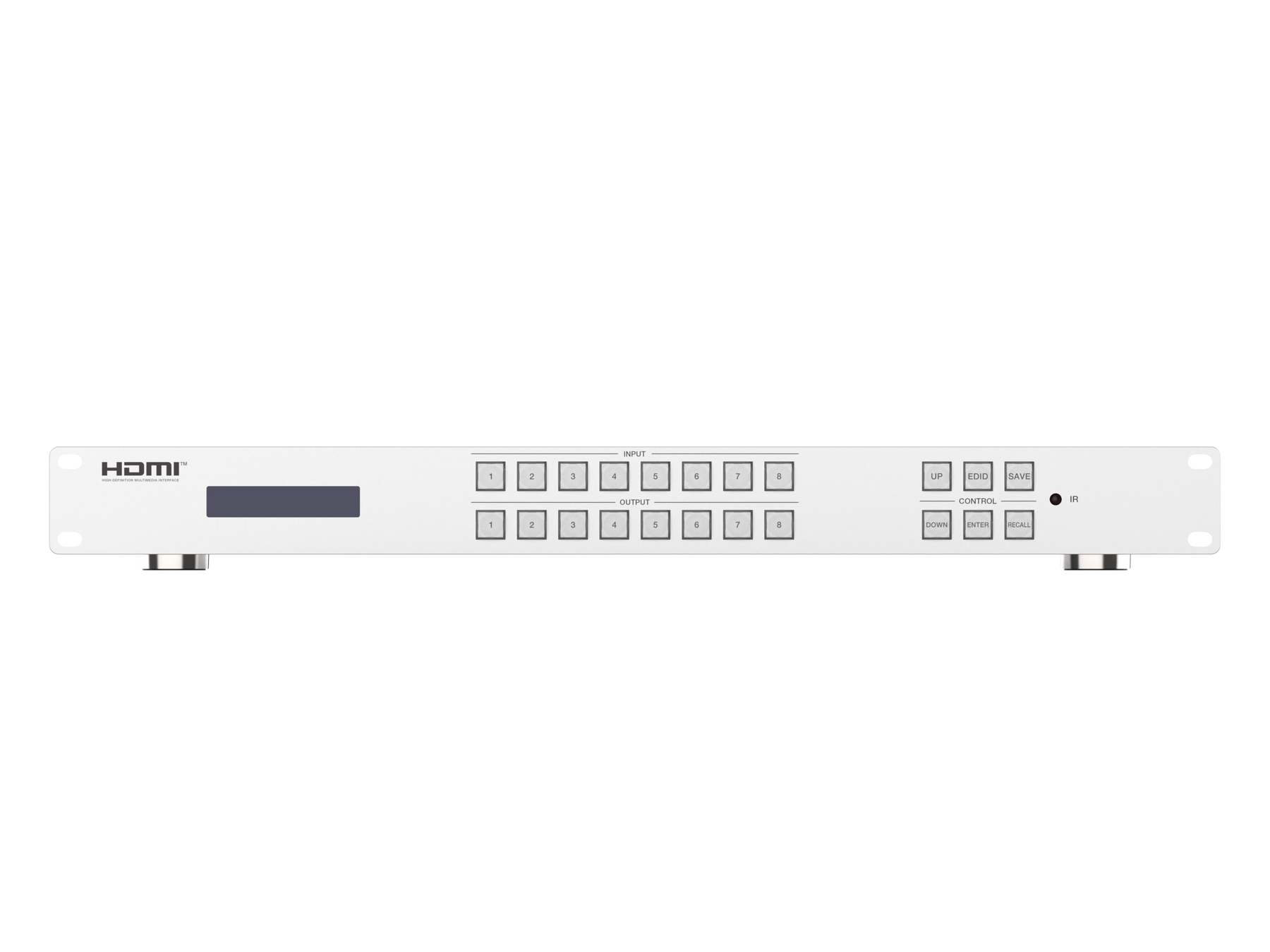

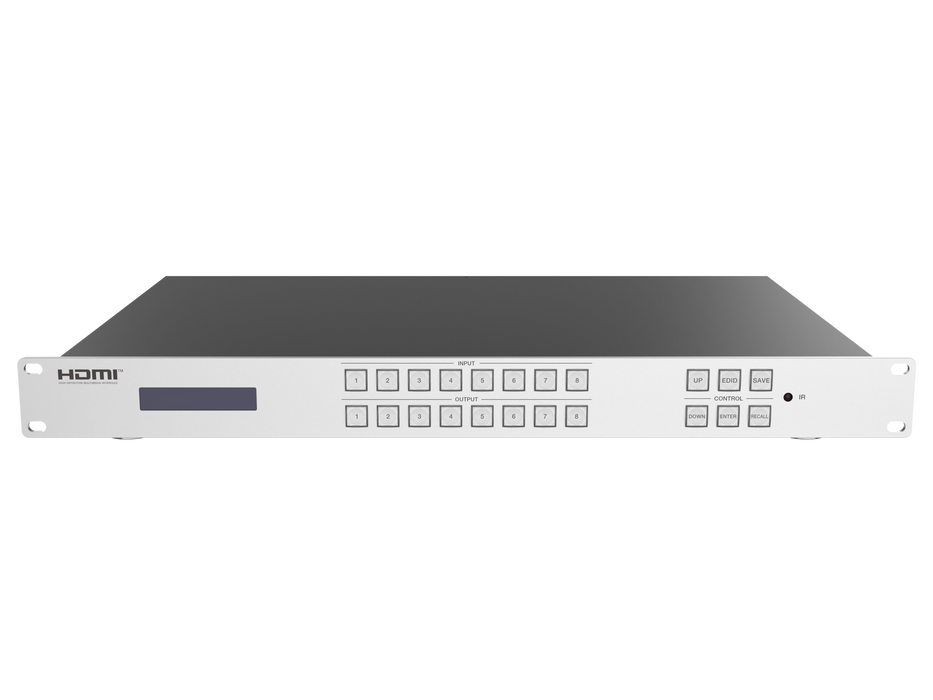

☆ 1U rack mounted design with front panel LCD display
☆ Control via the front panel buttons, IR remote control, RS-232 commands and Web GUI
Package Contents
① 1x 4K30 8x8 HDMI Matrix
② 1x IR Remote
③ 1x 12V/2.5A Multinational Power Supply (Locking)
④ 1x User Manual
