Model : CAD-MXB88D70M
Introduction

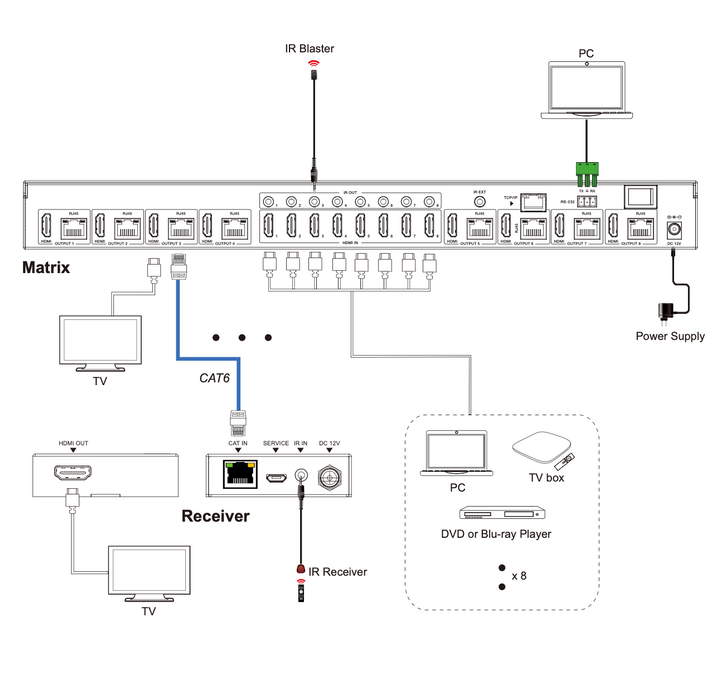

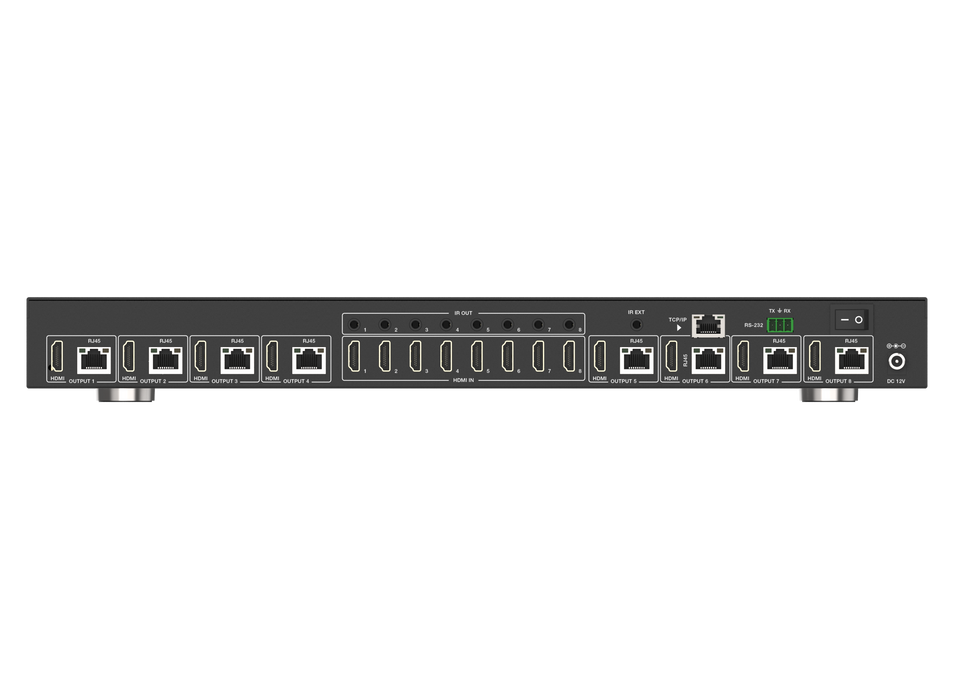

The 18Gbps 8x8 HDMI Matrix can connect 8 HDMI sources to 16 displays. It features
eight HDMI outputs and each HDMI output is mirrored to provide a CAT-Cable output which runs simultaneously. It supports the transmission of video (resolution is up to 1080p Full HD and 4Kx2K@60Hz 4:4:4) and supports HD digital audio formats such as LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio. The Matrix can be used for multi-room connectivity, and the HDMI signals can be extended up to 230ft/70m via connecting a CAT Receiver to each of the CAT-Cable outputs. The Matrix supports one-way IR matrix function. Besides, it can be controlled via front panel buttons, IR remote, RS-232, LAN, and Web GUI.
Features
☆ HDMI 2.0b and HDCP 2.2/1.x compliant
☆ Video resolution up to 4K2K@60Hz (YUV 4:4:4) on all HDMI & CAT ports
☆ 8 HDMI inputs, 8 HDMI & CAT mirrored outputs
☆ HDMI ports support 18Gbps lossless compressed video bandwidth
☆ HDR, HDR10, HDR10+, Dolby Vision, HLG are supported
☆ CAT output can extend the transmission distance up to 230ft/70m via a single CAT6 cable
☆ HDMI audio pass-through up to 7.1CH HD audio (LPCM, Dolby TrueHD and DTS-HD
Master Audio)
☆ Advanced EDID management and CEC control are supported
☆ 12V POC on all CAT ports

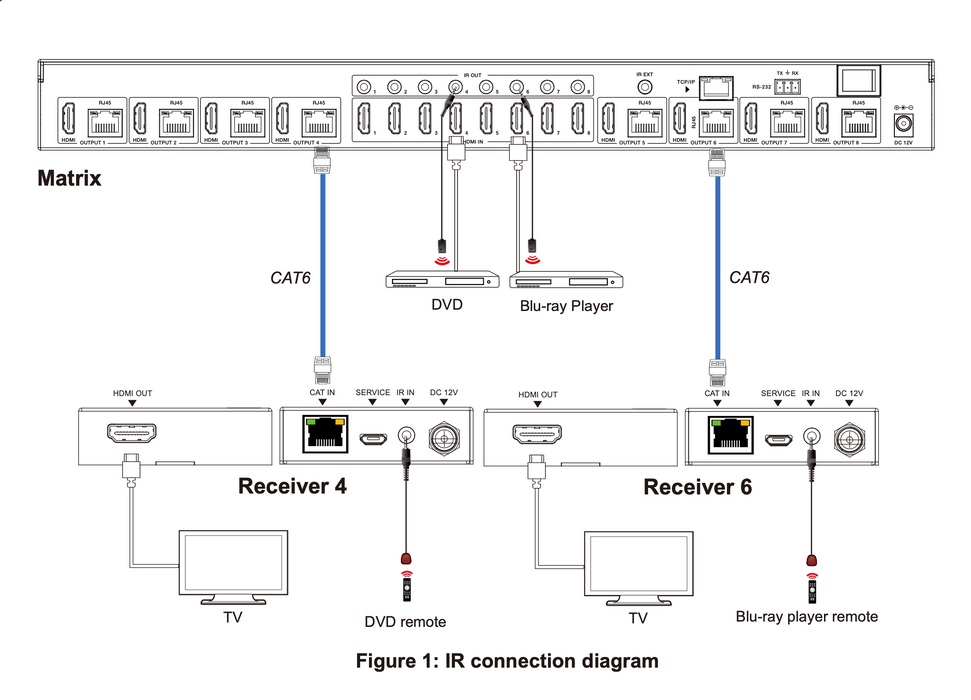

☆ Support one-way IR matrix function

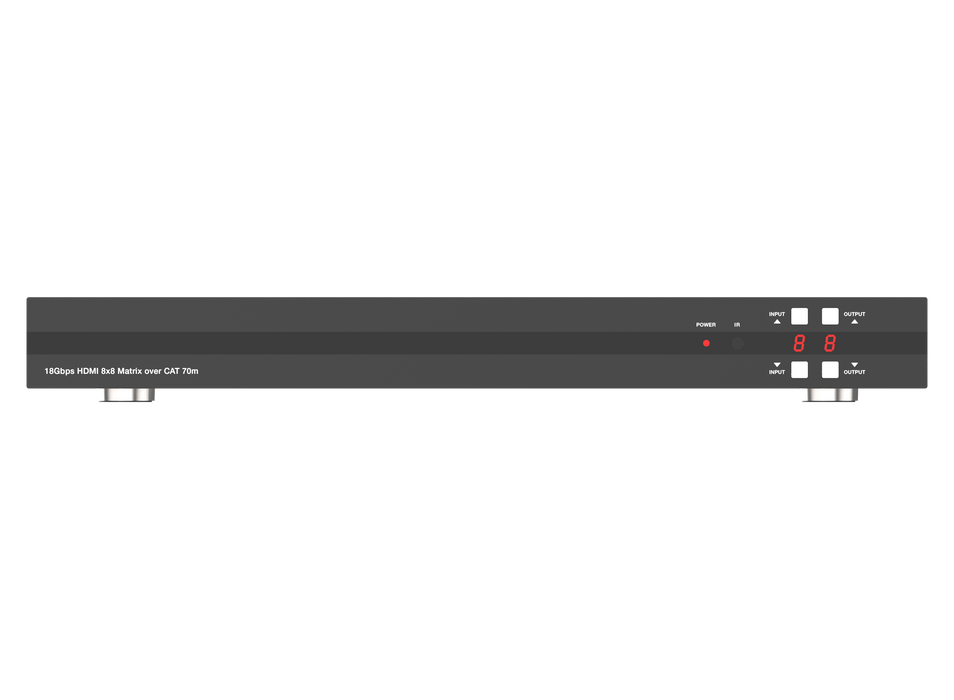

☆ Control via front panel buttons, IR remote, RS-232, LAN and Web GUI
Package Contents

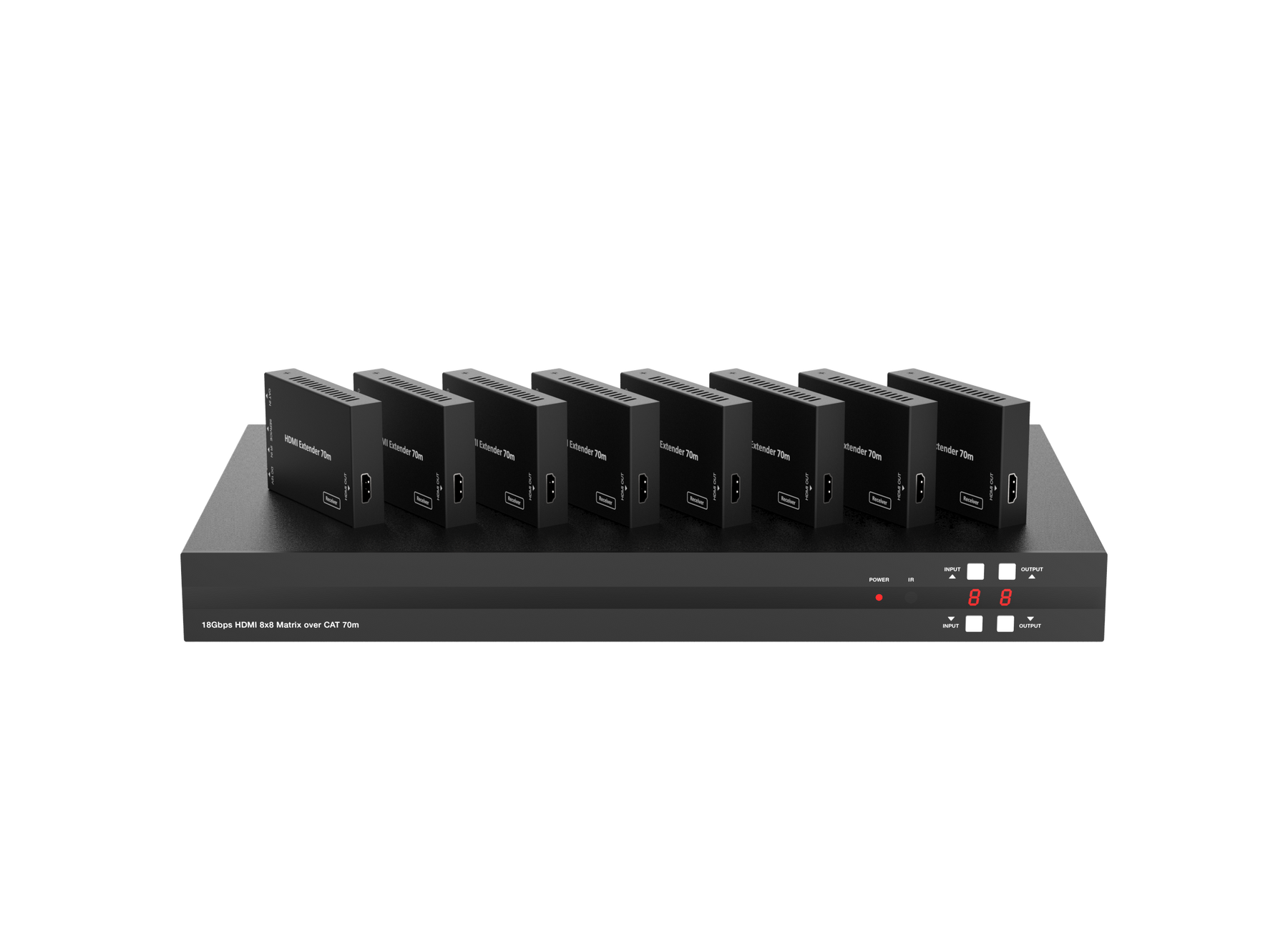

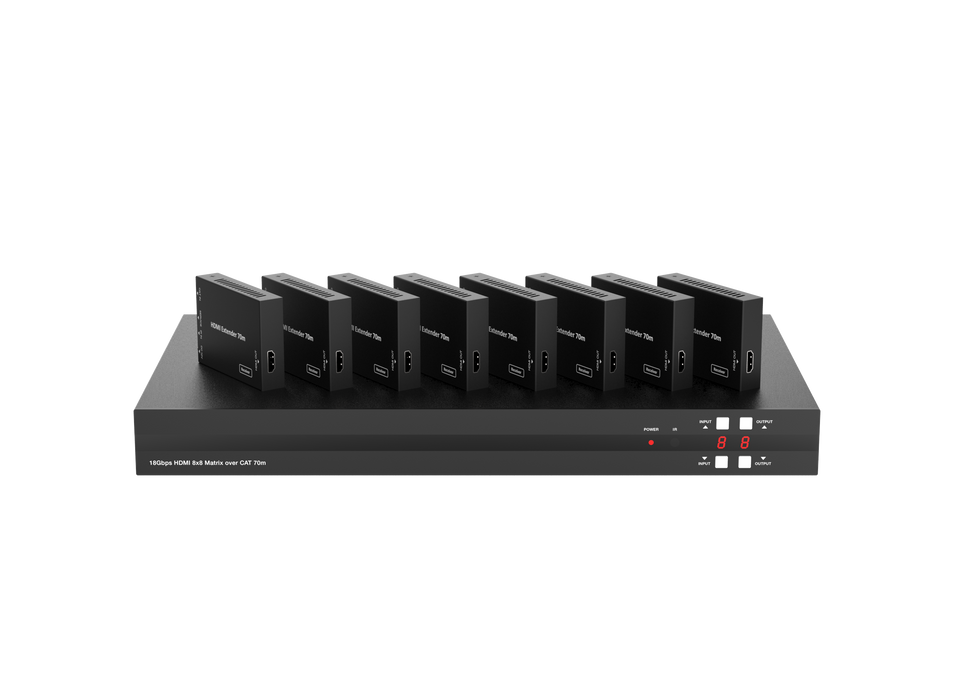

① 1 x 18Gbps 8x8 HDMI Matrix
② 8 x CAT Receiver
③ 1 x Matrix IR Remote
④ 1 x 12V5A Power Supply
⑤ 1 x RS-232 Serial Cable (1.5 meters, DP9 female head to 3 pin Phoenix connector)
⑥ 8 x IR Blaster Cable (1.5 meters)
⑦ 9 x IR Receiver Cable (1.5 meters)
⑧ 8 x Machine Screw (KM3*6)
⑨ 18 x Mounting Ear (Matrix and Receiver)
⑩ 1 x User Manual
