Model No : CAD-HDP3100C2H
1. Introduction

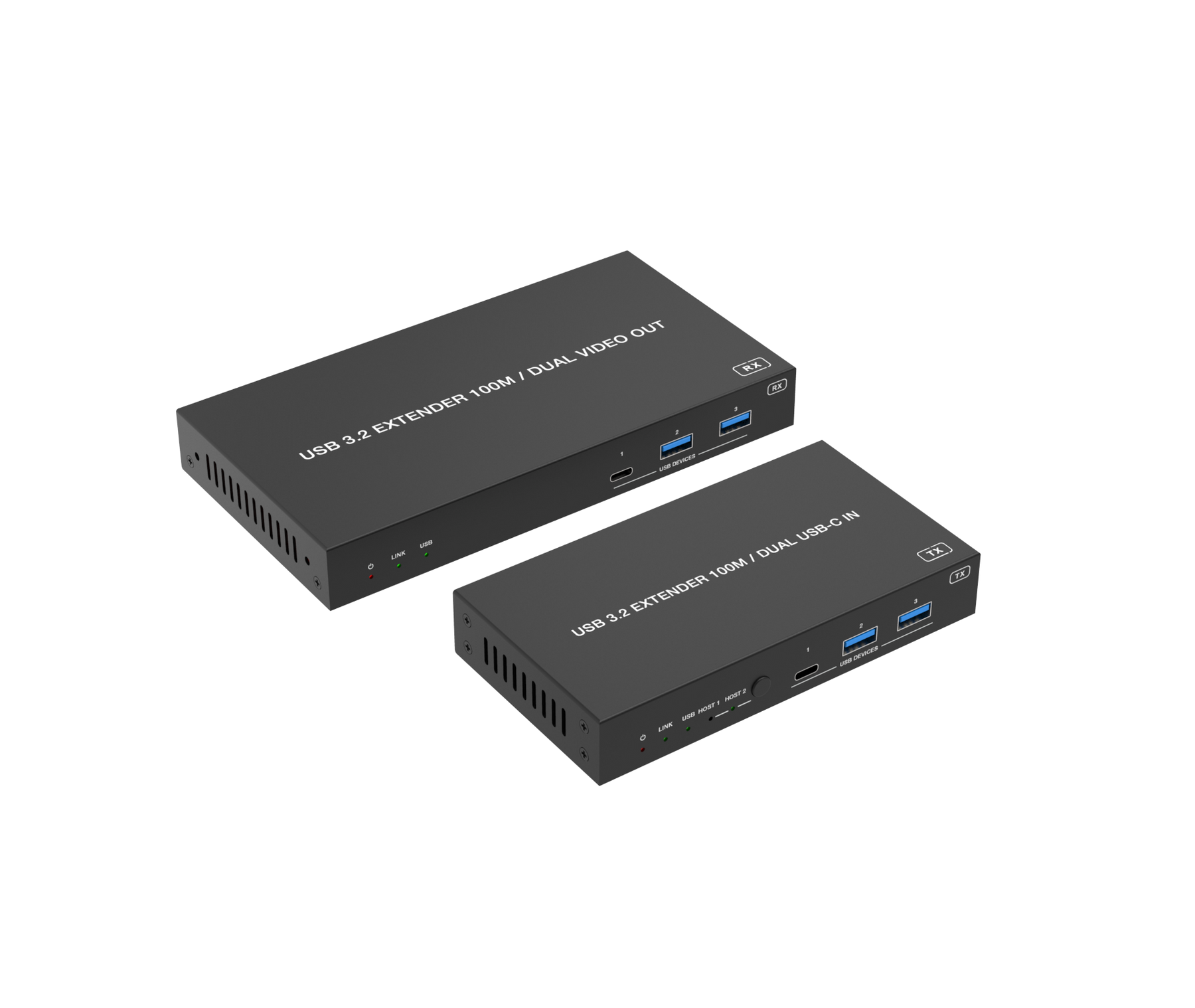

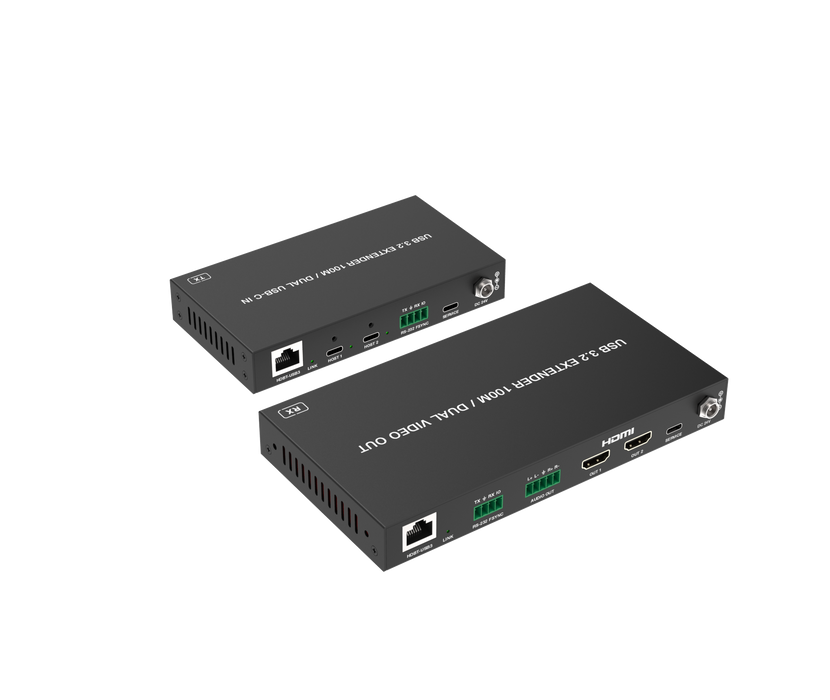

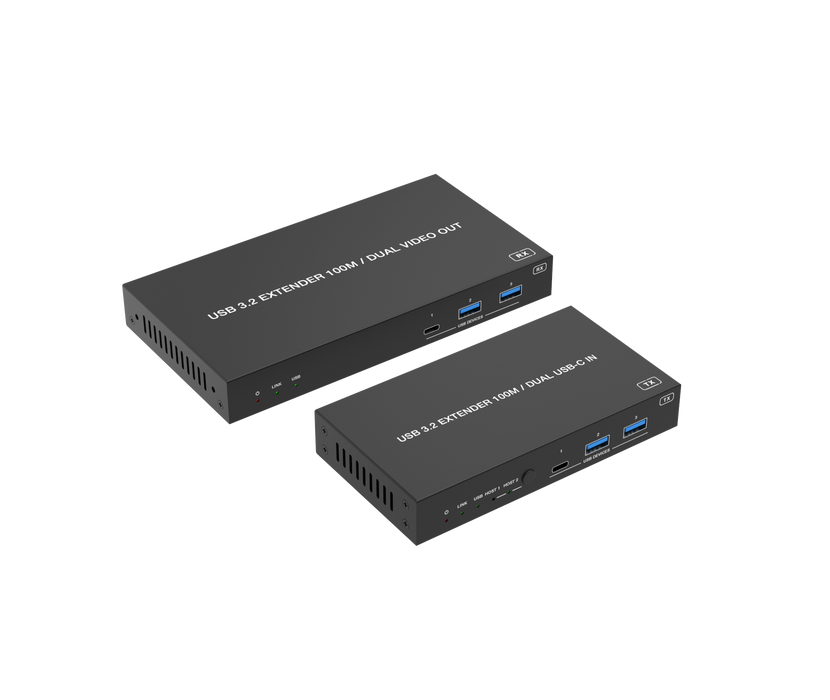

This USB Extender can extend USB 3.2 Gen 1 5Gbps signal to a distance up to 100m/328ft

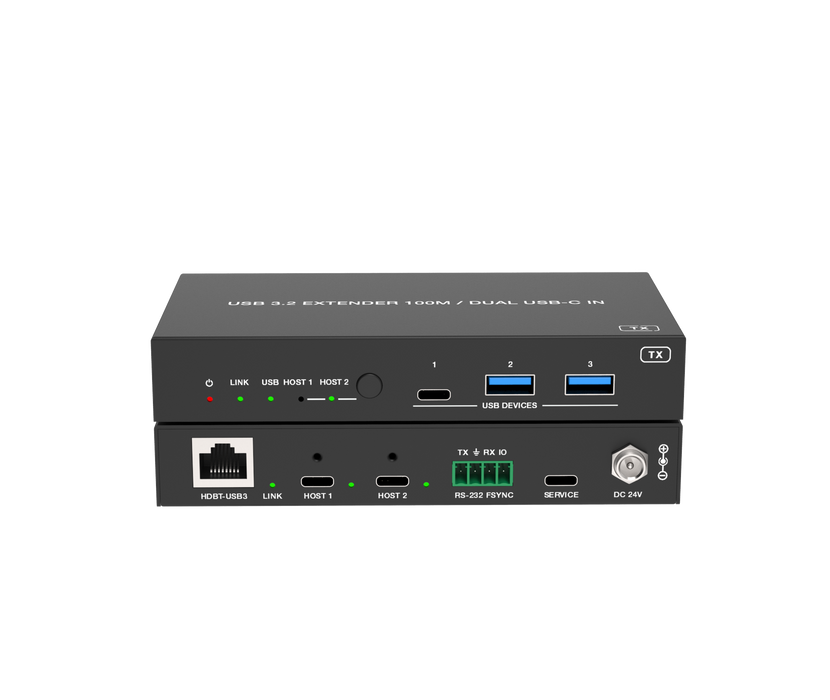

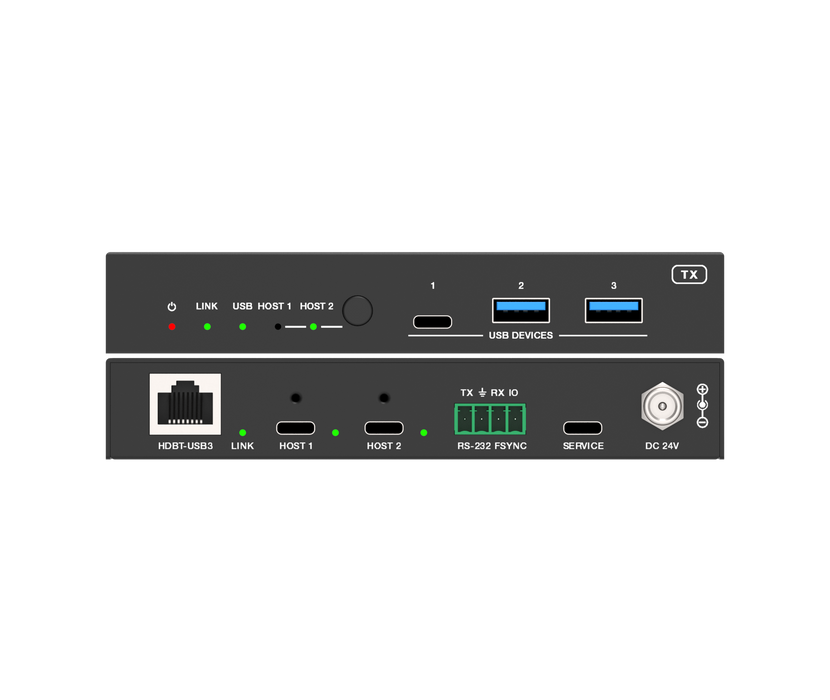

via a single CAT6a cable. The transmitter features two USB-C selectable host ports, one

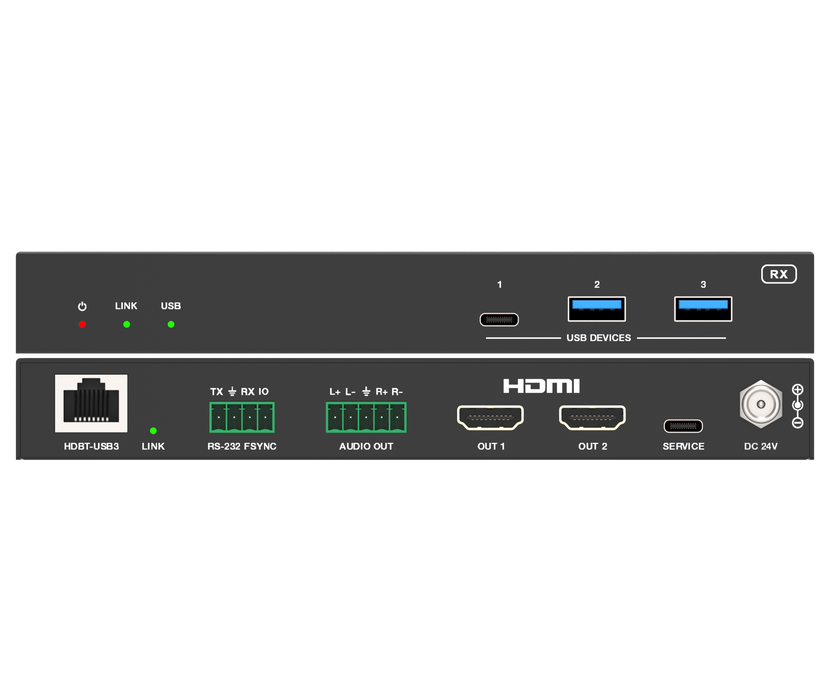

USB-C and two USB-A device ports. The receiver features one USB-C and two USB-A
device ports, and two HDMI output ports. This extender supports auto switching and manual
switching for the two USB-C host ports. Bi-directional 24V PoC (Power over Cable) allows
user only to provide power supply to the transmitter side or the receiver side.

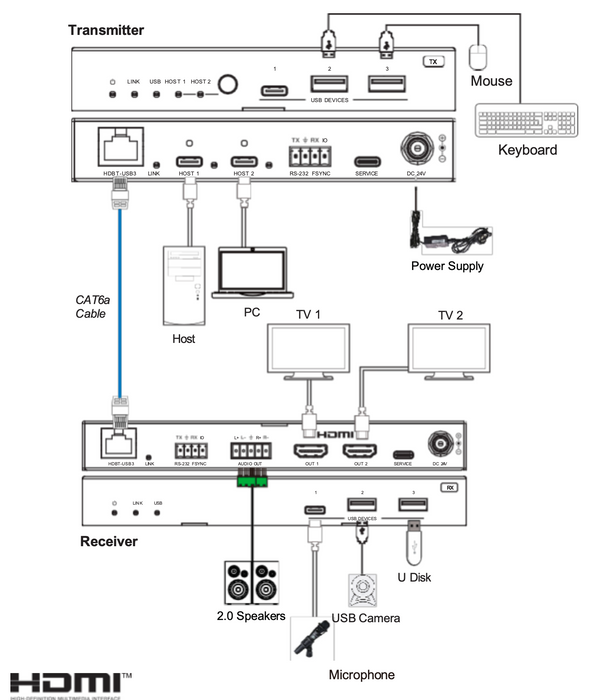

It can be widely used for long distance USB and video signal transmission between USB
sources and devices like webcams, PTZ cameras, keyboards, mouse devices, USB
microphones, flash sticks, printers, scanners, touch panel displays and other USB devices.
2. Features
☆ Extension of USB 3.2 Gen 1 up to 100m/328ft via CAT6a cable
☆ USB 3.2 Gen 1 connectivity with data transfer rate up to 5Gbps
☆ Backwards compatible with USB 2.0 and 1.1
☆ Hardware acceleration for isochronous and bulk transfer
☆ Built-in DisplayLink technology for video over USB on dual HDMI outputs, with
resolution up to 4K@60Hz
☆ TX supports auto switching and manual switching via switch button or API commands
☆ RX supports audio de-embedding to balanced/unbalanced analog output
☆ RS-232 pass-through and API control
☆ Firmware upgrade via USB-C service port
☆ FSYNC GPIO pass-through for industry camera use
☆ Bi-directional 24V PoC (power over cable), when TX or RX gets power, the other end
does not need an external power supply
3. Package Contents
① 1× USB 3.2 Gen 1 Extender (Transmitter)
② 1× USB 3.2 Gen 1 Extender (Receiver)
③ 1× 24V/3.75A Locking Power Supply
④ 2× 4pin-3.5mm Phoenix Connector (Male)
⑤ 1× 5pin-3.5mm Phoenix Connector (Male)
⑥ 4× Mounting Ear
⑦ 8× Machine Screw (KM3*4)
⑧ 1× User Manual
