18Gbps HDMI/USB-C over HDBaseT 3.0 Extender (100m) with USB 2.0

Model No: CAD-EHB100HCU3K-HDP

Product Catlalogue Download

1. Introduction

This 18Gbps HDBaseT 3.0 Extender can extend uncompressed HDMI/USB-C

signals, bi-directional IR, RS-232, and USB 2.0 signals up to 328ft/100m via a

single CAT6A/7 cable. Video resolution is up to 4K2K@60Hz YUV 4:4:4.

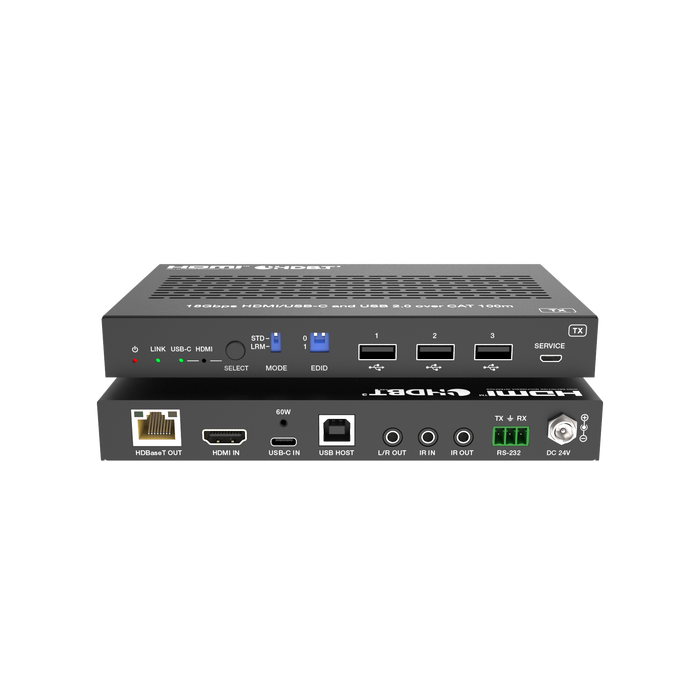

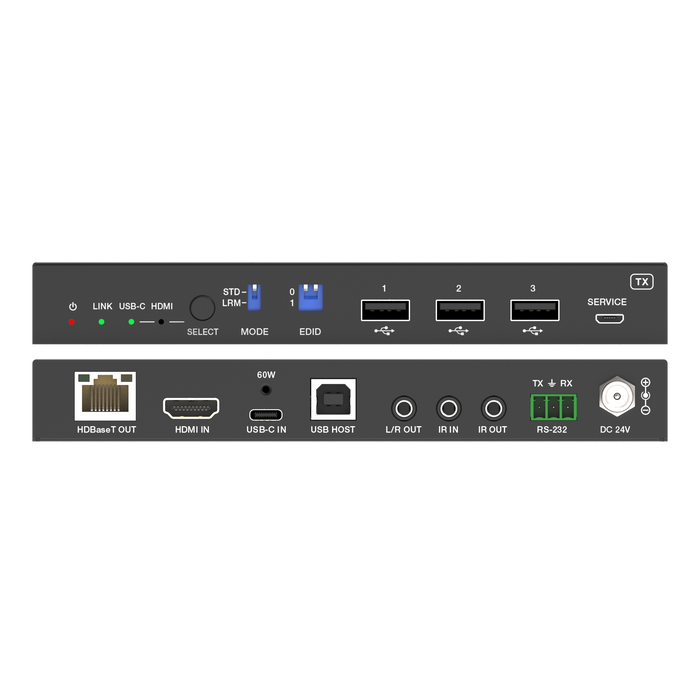

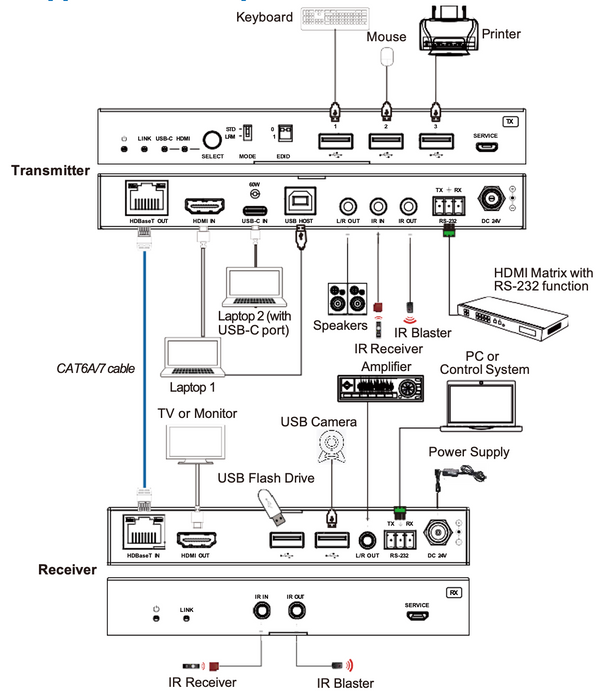

The transmitter features with 1x HDMI input, 1x USB-C input (60W charging),

1x USB Host and 3x USB Device ports. It can switch between HDBT Standard

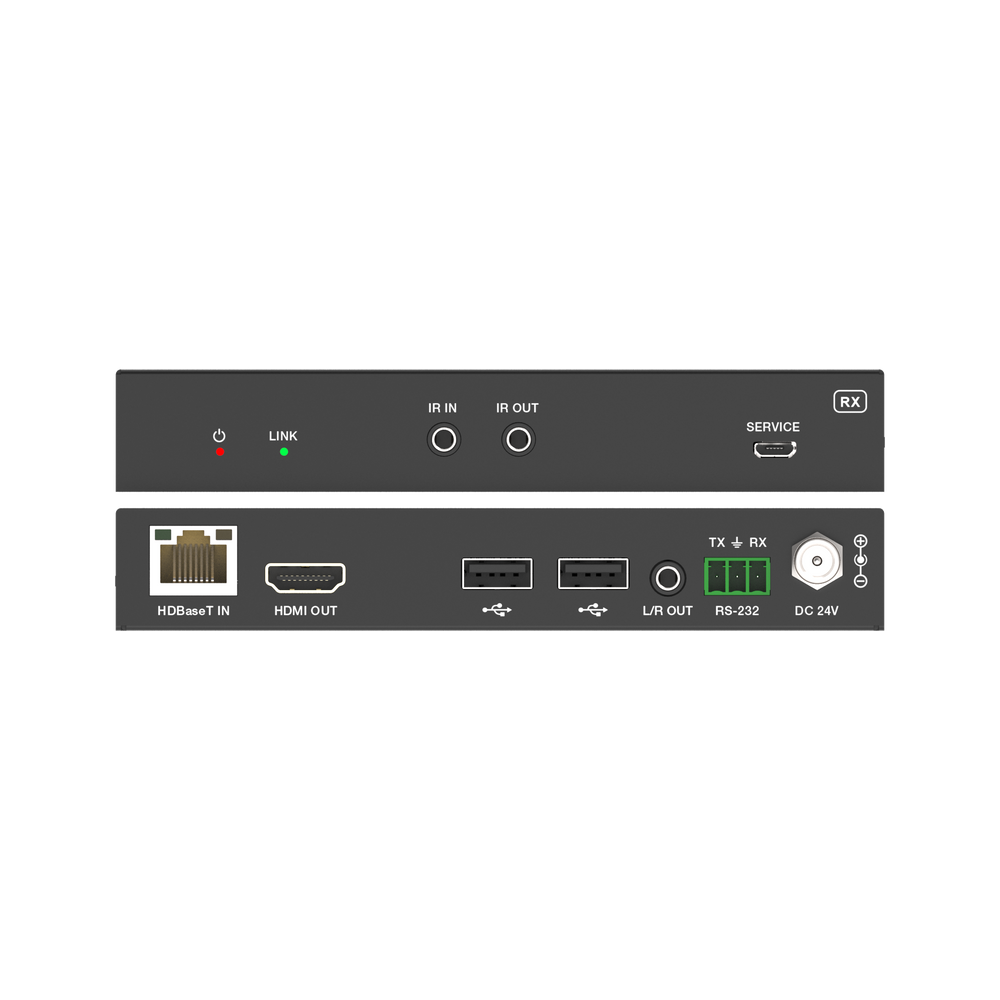

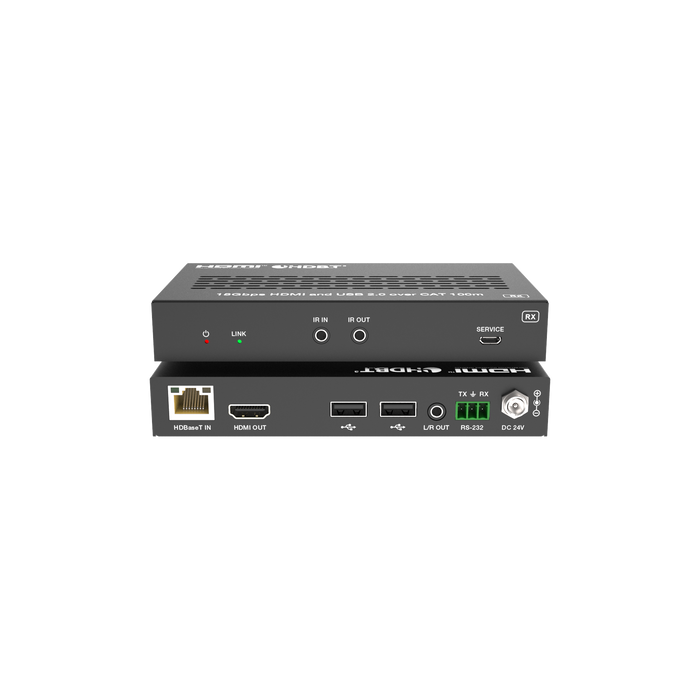

Mode (as factory default) and HDBT Long Reach Mode. The receiver features

with 1x HDMI output, 2x USB Device ports. Both transmitter and receiver

support 3.5mm analog audio de-embedding, EDID management, bi-directional

IR and RS-232 signal pass-through. This product supports bi-directional 24V

POC function.

The Extender offers the most convenient solution for video extension via a

single CAT cable with long distance capability, and it is the perfect solution for

home/commercial application.

2. Features

Compliant with HDCP 2.3, 18Gbps video bandwidth

HDBaseT 3.0 VS3000 chipset based design

Support video resolution up to 4K2K@60Hz (YUV 4:4:4) as specified in

HDMI 2.0b

4K60/4K30/1080P signal transmission distance up to 328ft/100m via a

single CAT6A/7 cable (HDBT Standard Mode)

1080P 8bit signal transmission distance up to 492ft/150m via a single

CAT6A/7 cable (HDBT Long Reach Mode)

TX features with 1x HDMI input, 1x USB-C input, 1x HDBT output, 1x

USB 2.0 host and 3x USB 2.0 clients

RX features with 1x HDMI output, 2x USB 2.0 clients

USB-C and HDMI signal inputs support auto or manual switching mode

Auto switching supports HDMI 5V or signal detect selection

USB-C supports DP-ALT mode for A/V, USB 2.0 data and power charging

up to 60 watts

TX/RX USB-A client ports VBUS on or off depends on USB host is

connected or not

HDR, HDR10, HDR10+, Dolby Vision LLM and HLG pass-through

4K to 1080p downscaling features on HDMI output, no frame rate

conversion

Both TX and RX support analog audio de-embedding

RS-232 signal pass-through and guest-mode control

Support bi-directional IR signal pass-through, USB 2.0 signal transmission

Advanced EDID management

Each USB-A port provides power up to 5V/500mA

Support bi-directional 24V POC, with POC switch

Compact design for easy and flexible installation1 / 113. Package Contents

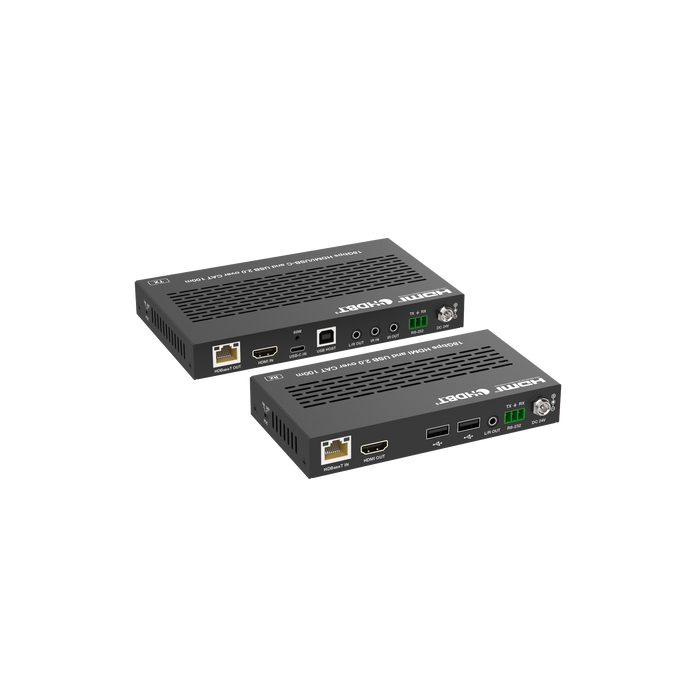

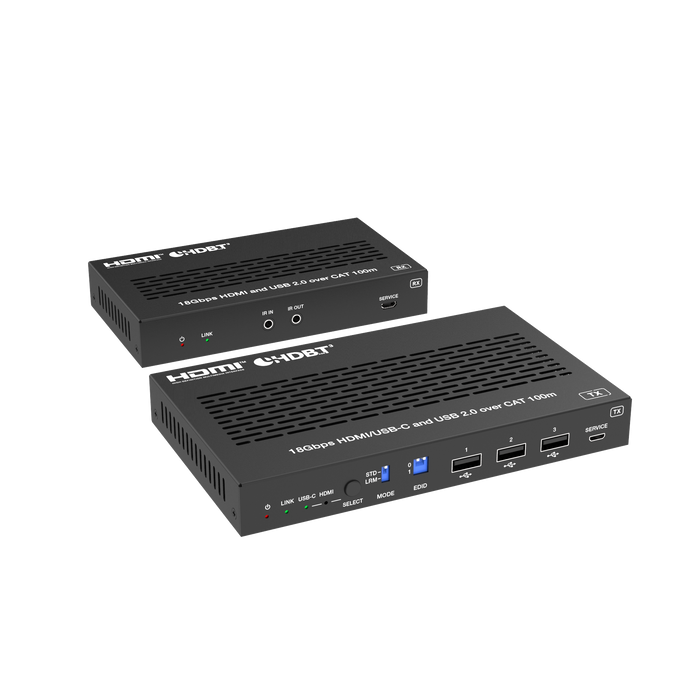

1 × 18Gbps HDMI/USB-C over HDBaseT 3.0 Extender (Transmitter)

1 × 18Gbps HDMI/USB-C over HDBaseT 3.0 Extender (Receiver)

1 × IR Blaster Cable (1.5 meters)

1 × IR Wideband Receiver Cable (1.5 meters)

2 × 3pin-3.81mm Phoenix Connector (male)

4 × Mounting Ear

8 × Machine Screw (KM3*4)

1 × 24V/3.75A Desktop Power Supply

1 × User Manual
