Model : CAD-HDP3100
1. Introduction

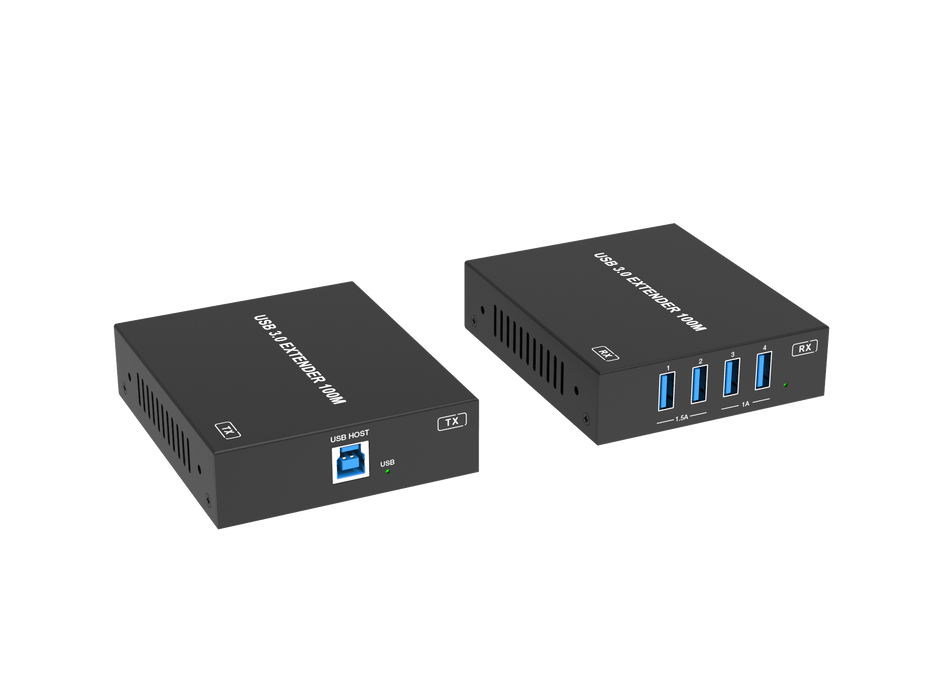

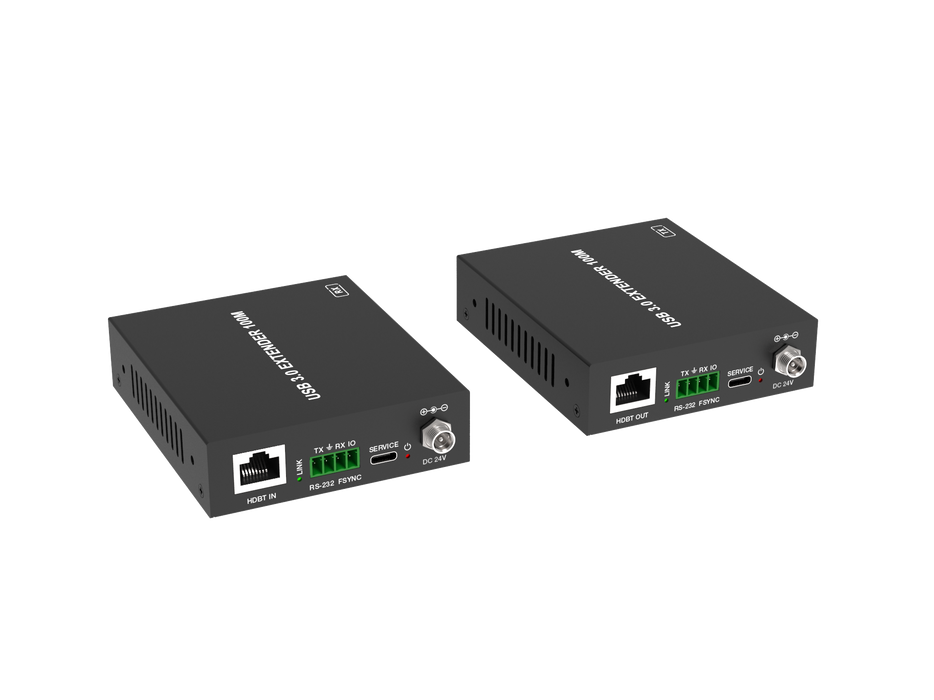

The USB 3.0 Extender can extend USB signal to a distance up to 100m/328ft

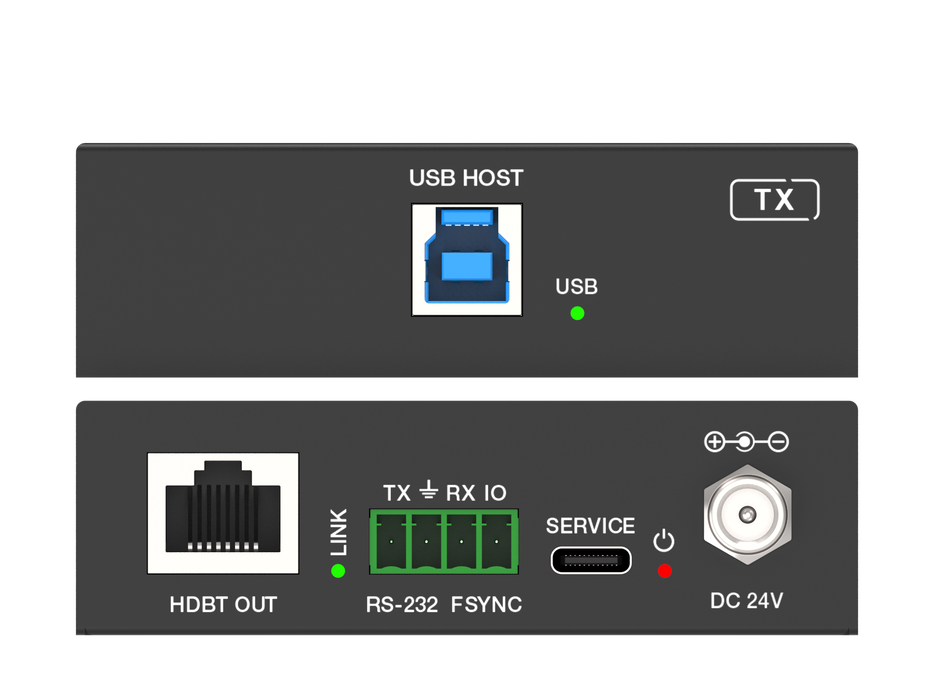

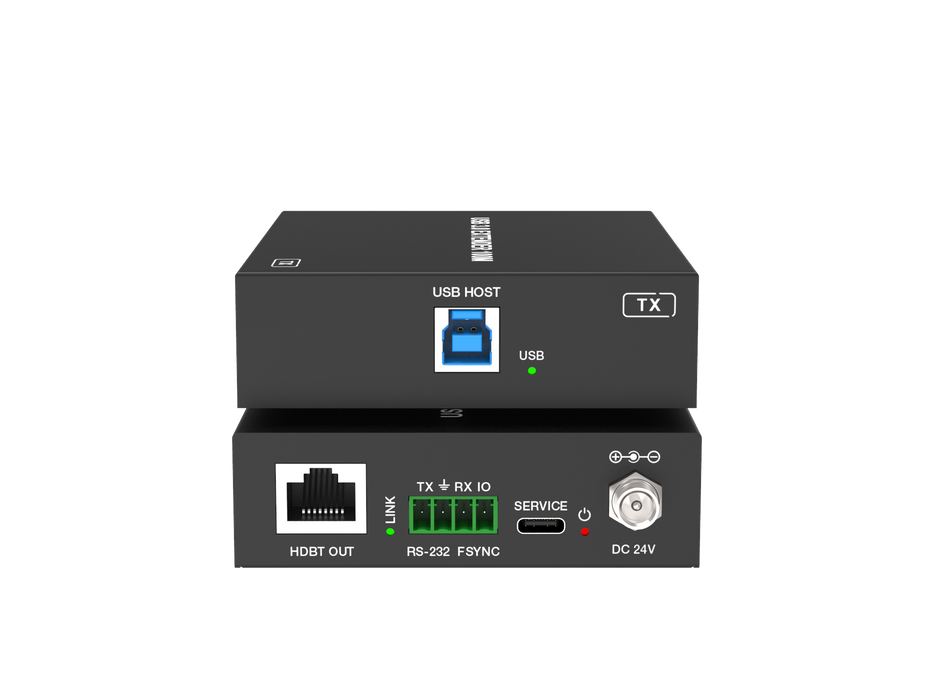

via a single CAT6a cable. Transmitter features with one USB 3.0 Type B

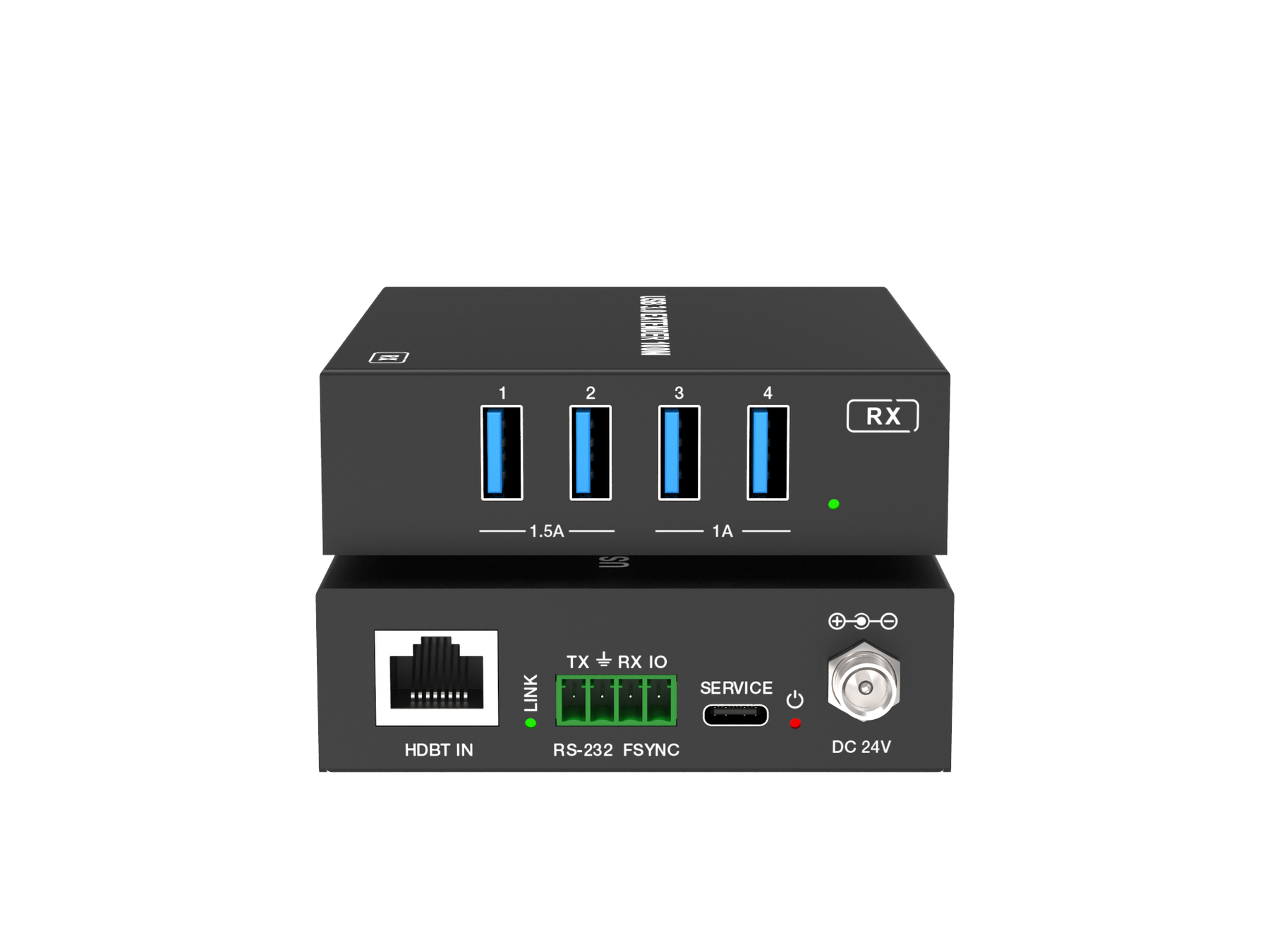

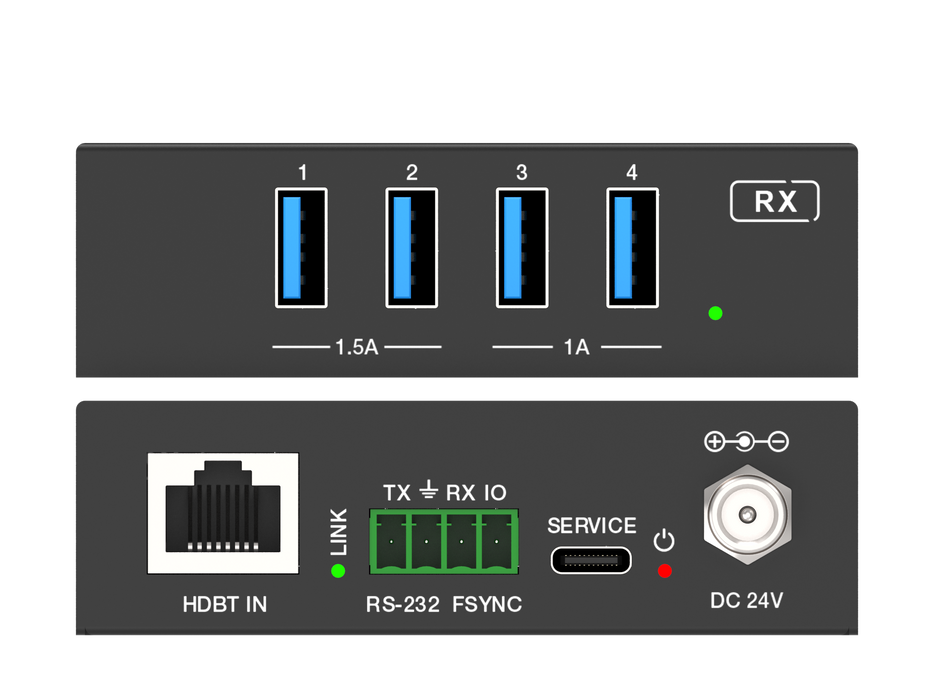

input, one FSYSNC GPIO input and one RS-232 pass-through. Receiver
features with four USB 3.0 Type A outputs, one FSYSNC GPIO output and
one RS-232 pass-through. Bi-directional 24V PoC is also supported.

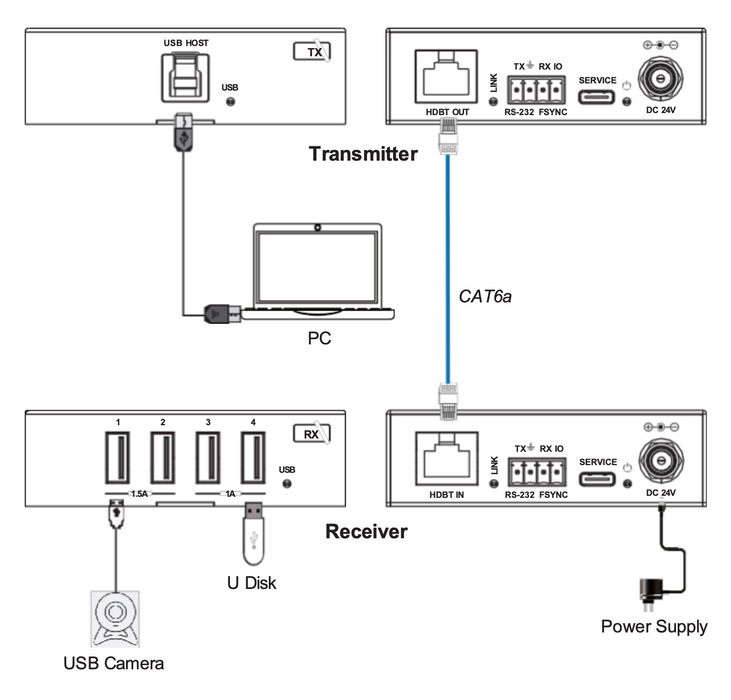

The product can be widely used for long distance signal transmission between
a PC and USB devices.
2. Features
☆ Extension of USB 3.0 is up to 100m/328ft over CAT6a cable
☆ USB 3.0 connectivity with data transfer rate up to 5Gbps
☆ Backwards compatible with USB 2.0 and 1.1
☆ Hardware acceleration for isochronous and bulk transfer
☆ USB-A port 1 and 2 support 5V/1.5A, port 3 and 4 support 5V/1A
on the Receiver
☆ Support RS-232 pass-through and FSYNC GPIO pass-through
(for industry camera use)
☆ Support bi-directional 24V PoC
☆ Simple plug and play, no driver and setting installation required
3. Package Contents
① 1× USB 3.0 Extender (Transmitter)
② 1× USB 3.0 Extender (Receiver)
③ 1× 24V/2A Locking Power Supply
④ 2× 4-pin 3.5mm Phoenix Connector (Male)
⑤ 4× Mounting Ear
⑥ 8× Machine Screw (KM3*4)
⑦ 1× User Manual
