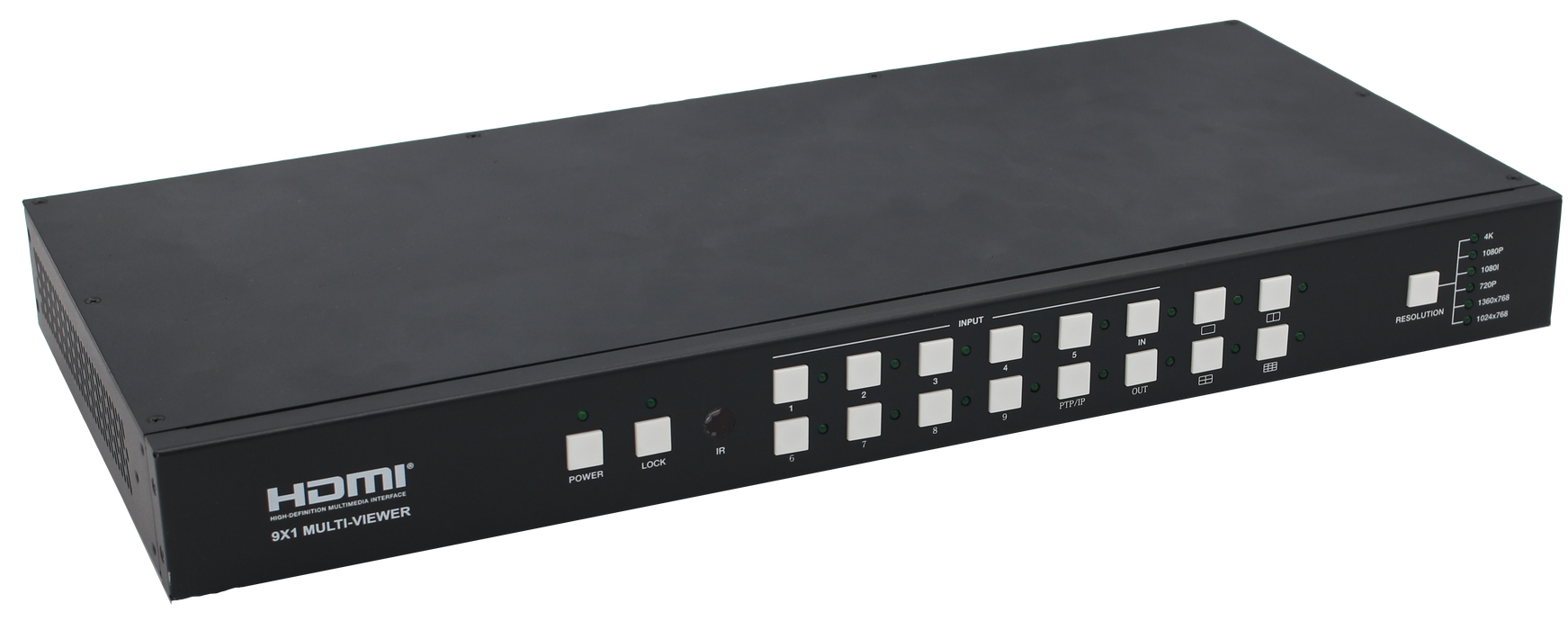

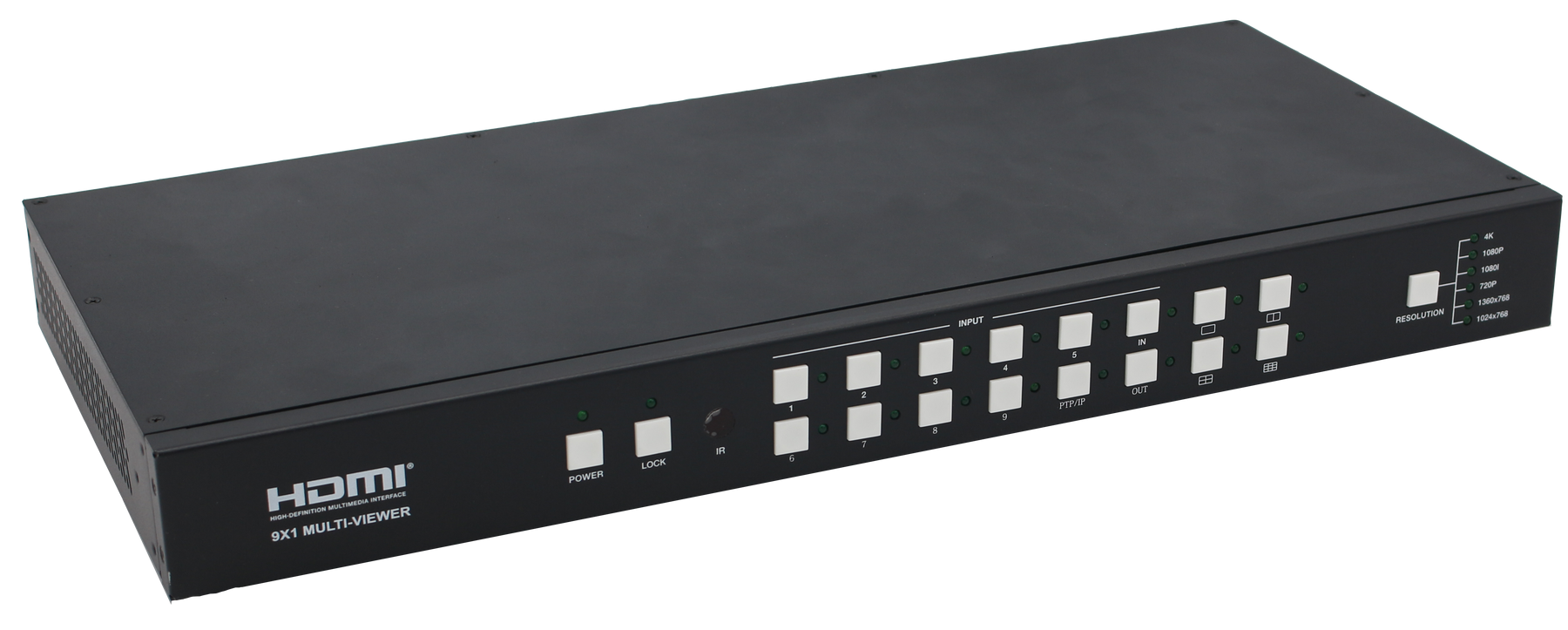

Introduction
The 9x1 seamless switcher supports 9 HDMI inputs and one HDMI output. It allows user can view up to 9 HD video contents on one display at the same time. Output resolution can be chosen for supporting legacy display. This switcher is a suitable solution for presentation purpose at classroom and conference room.
Features
☆ HDMI 1.4b, HDCP 1.4 compliant.
☆ Input video resolution up to 1080p@60Hz, Output up to 4K2K@30Hz
☆ 9x HDMI inputs, 1x HDMI and 1x de-embedded analog audio output
☆ Fast seamless switching with scaling up to 3840x2160p (4K)
☆ Supports 1/2/4/9 windows multi-view modes
☆ Display 4x full HD signals within one 4K display with pixel-to-pixel quality

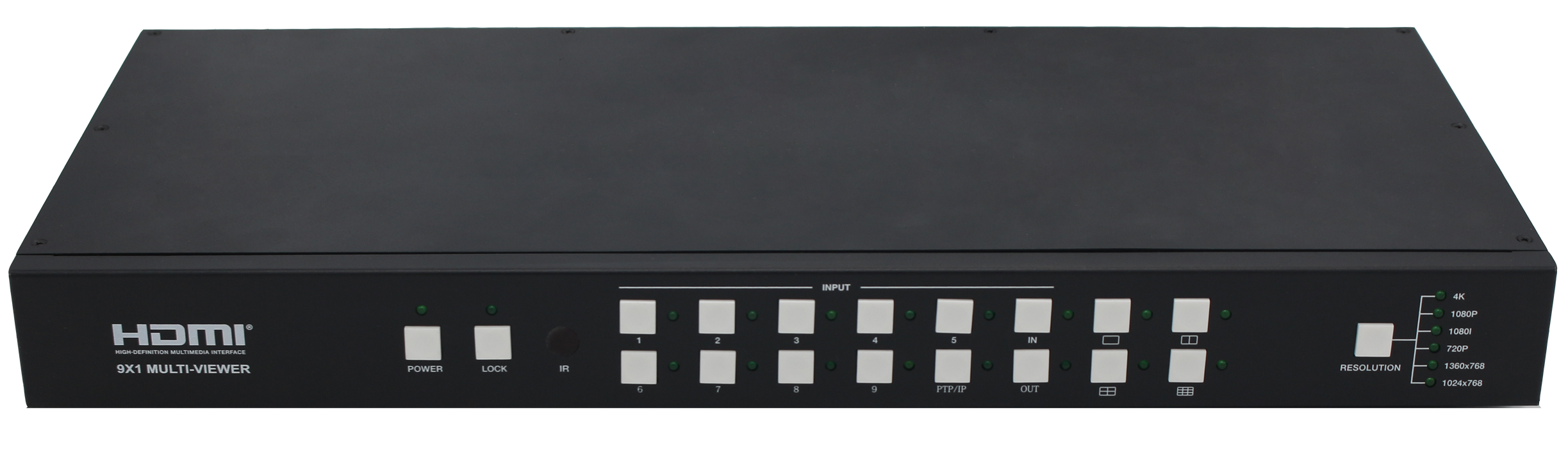

☆ Control is via on-panel button, IR, RS-232, LAN or Web GUI
☆ 1U rack mounted design
Package Contents
① 1x 9×1 HDMI Seamless Switcher
② 1x 12V/1A Power Adapter
③ 1x Remote Control
④ 1x User Manual
Specifications

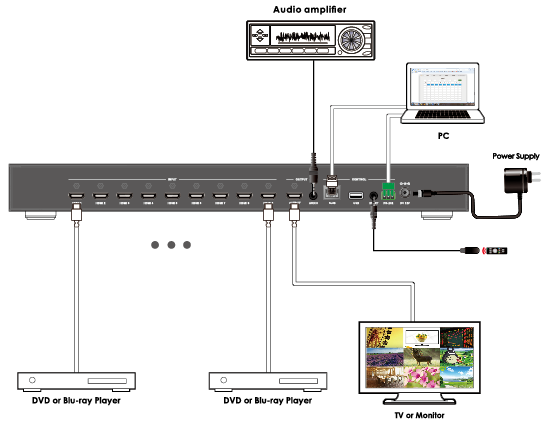

| Technical | |
| HDMI Compliance | HDMI 1.4b |
| HDCP Compliance | HDCP 1.4 |
| Video Bandwidth | 3Gbps |
| Video Resolutions | 4K2K@30Hz YUV4:4:4、RGB4:4:4 |
| Color Depth | 8-bit |
| Color Space | RGB, YUV4:4:4, YUV 4:2:2 |
| HDMI Audio Formats | LPCM 2.0 |
| ESD Protection | Human body model — ±8kV (air-gap discharge) & ±4kV (contact discharge) |
| Connections | |

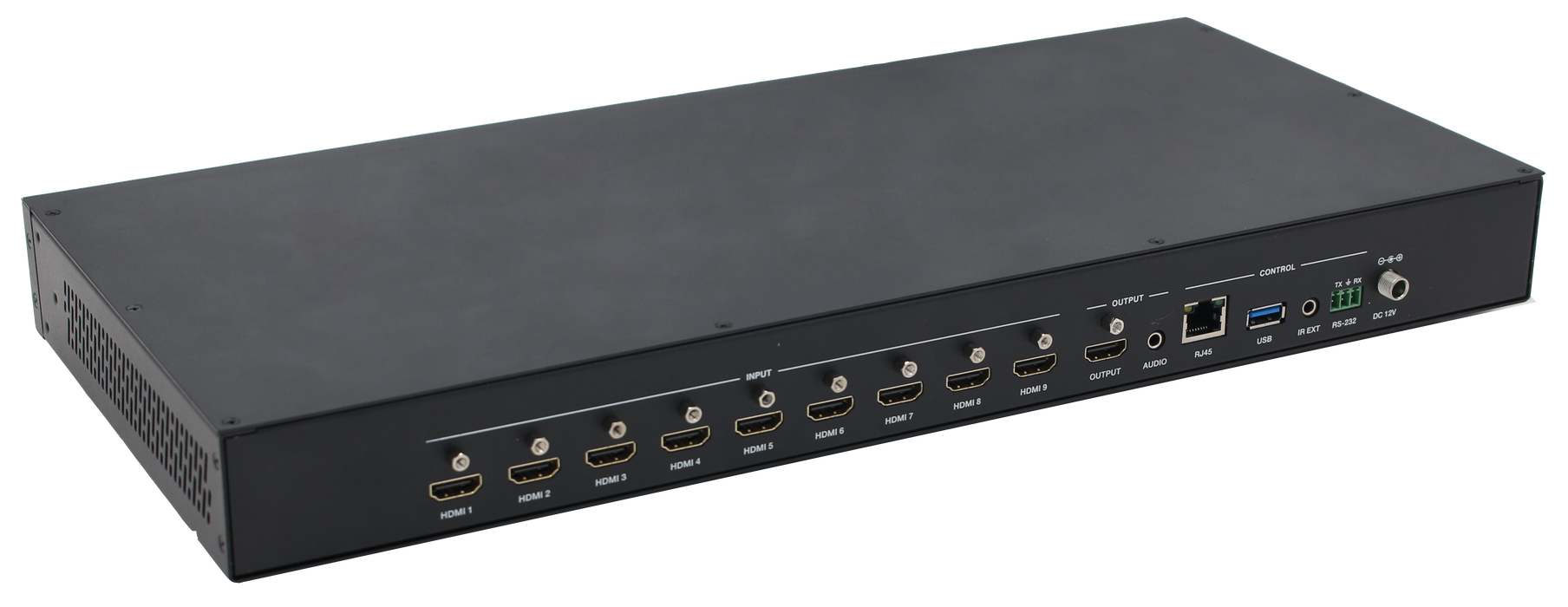

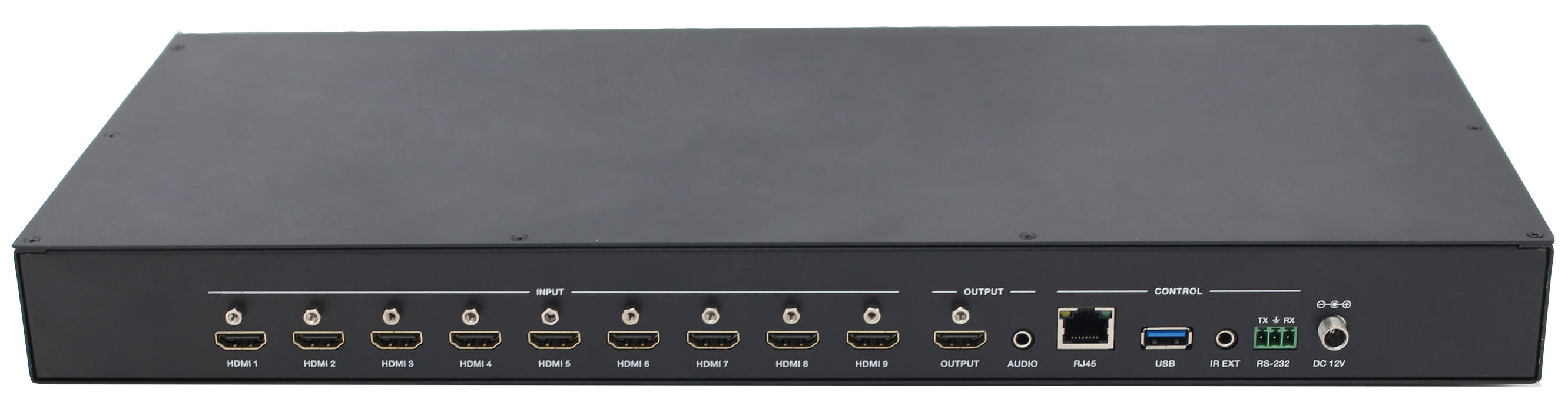

| Inputs | 9x HDMI Type A [19-pin female] |
| 1x RJ45 [8-pin female] | |
| 1x RS-232 [Phoenix jack] | |
| 1x USB [USB-A] | |
| 1x IR EXT [3.5mm Stereo Mini-jack] | |
| Outputs | 1x HDMI Type A [19-pin female] |
| 1x Audio Out [3.5mm Stereo Mini-jack] | |
| Mechanical | |
| Housing | Metal Enclosure |
| Color | Black |
| Dimensions | 440mm (W)×200mm (D)×44.5mm (H) |
| Weight | 2.26kg |
| Power Supply | Input: AC100 - 240V 50/60Hz |
| Output: DC 12V/1A (US/EU standards, CE/FCC/UL certified) | |
| Power Consumption | 7.8W (Max) |
| Operation Temperature | 32 - 104°F / 0 - 40°C |
| Storage temperature | -4 - 140°F / -20 - 60°C |
| Relative Humidity | 20 - 90% RH (no condensation) |
