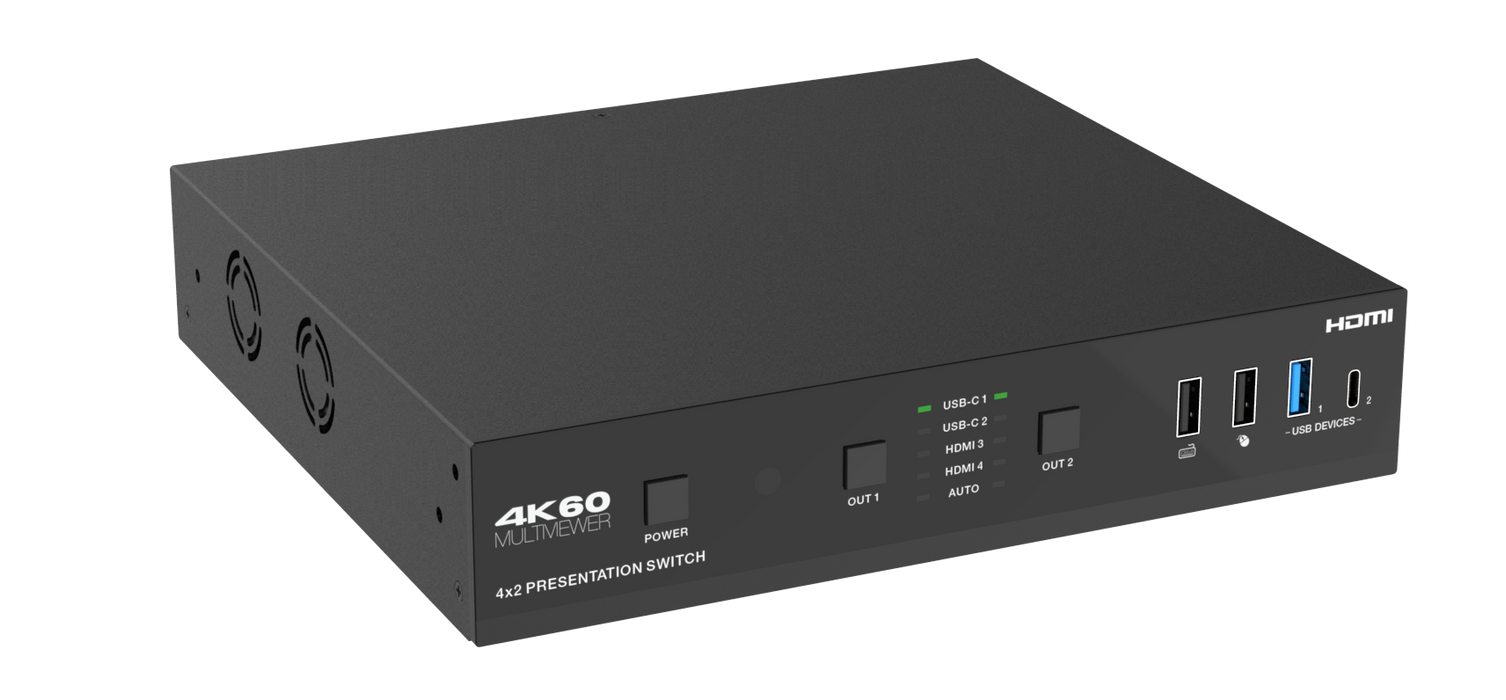

4x2 HDMI / USB-C 4K60 Seamless Presentation Switch with HDBaseT 3.0 70m Out- CAD-42H70PSB
Model No : CAD-42H70PSB

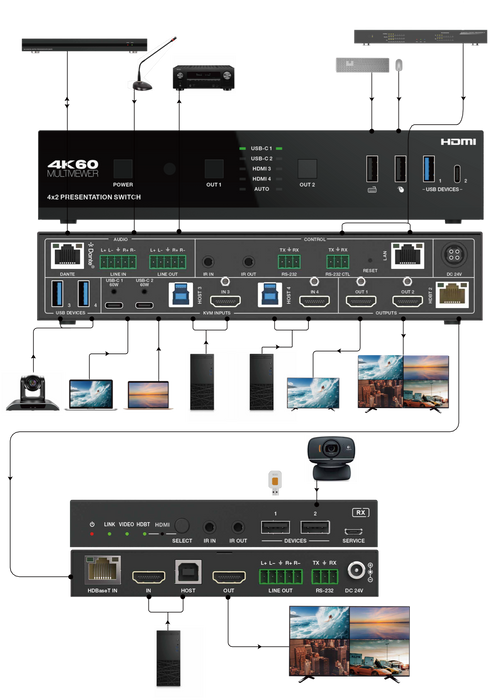

The 4x2 seamless presentation switch supports resolutions up to 4K@60Hz 4:4:4 and HDCP 2.3 compliant. Features multi-view function for multiple sources on one screen. Two HDMI outputs and one HDBaseT 3.0 mirrored with HDMI OUT2 output. Extends uncompressed 4K60Hz 4:4:4 up to 132ft/40m or 4K30Hz/1080P60Hz up to 230ft/70m via single Cat6A cable. Four video inputs: two USB-C and two HDMI. Each USB-C input supports DisplayPort alternate mode A/V up to 4K@60Hz 4:4:4, USB 3.2 Gen 1 data, and up to 60 watts power charging. Has 1Gbps Ethernet and local USB 3.2 KVM switch for video conference. Supports audio embedded and de-embedded, with audio DSP.
Features
☆ Video resolution up to 4K@60Hz 4:4:4, as specified in HDMI 2.0b
☆ HDCP 2.3, DP 1.4 and HDBase 3.0 compliant
☆ USB 3.2 Gen 1 up to 5Gbps
☆ 4x2 seamless switching (single screen) and fast switching (multiview) function
☆ Manual switching or auto switching mode
☆ Multiple multiview display modes: Auto/Single/PIP/PBP/Triple/Quad/Custom

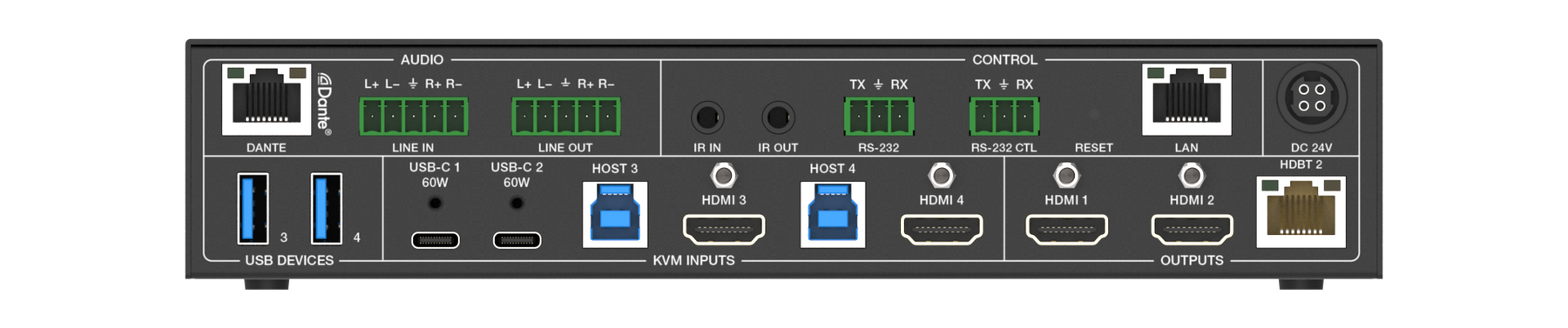

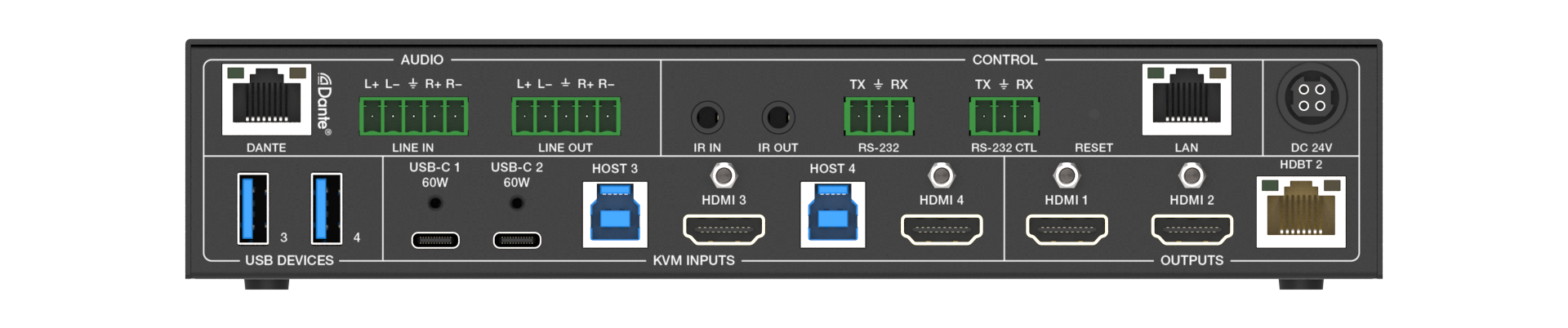

☆ Input: 2x USB-C, 2x HDMI, 1x Analog audio, 1x Dante 2ch
☆ Output: 1x HDMI, 1x HDMI + HDBaseT mirrored, 1x Analog audio, 1x Dante 2ch
☆ USB-C supports DisplayPort Alternate mode for A/V, USB 3.2, 1G LAN and 60W charging
☆ Local USB 3.2 switching and extending USB 2.0 over HDBaseT 3.0
☆ Local USB KVM hotkeys and mouse switching
☆ Uncompressed 4K60 4:4:4 over HDBaseT 3.0 up to 132ft/40m via single CAT6A cable
☆ Uncompressed 1080P&4K30 over HDBaseT 3.0 up to 230ft/70m via single CAT6A cable
☆ Audio embedded and de-embedded
☆ Audio DSP for gain, equalizer, volume and delay
☆ Dante 2x2 audio input and output
☆ CEC/RS-232 control external devices ON/OFF
☆ Advanced EDID management
☆ Support standard PoE power supply from TX to RX (TX_PSE, RX_PD)
☆ Flexible control via front panel buttons, IR remote, RS-232, TCP/IP or Web GUI
Package Contents
① 1x 4x2 Seamless Presentation Switch
② 1x HDBaseT Receiver
③ 1x IR Blaster Cable (1.5 meters)
④ 1x IR Wideband Receiver Cable (1.5 meters)
⑤ 3x 3pin-3.5mm Phoenix Connector (male)
⑥ 3x 5pin-3.5mm Phoenix Connector (male)
⑦ 4x Mounting Ear
⑧ 8x Machine Screw
⑨ 1x 24V/8A Desktop Power Supply & 1 x AC Power Cord (1.5 meters)
⑩ 1x IR Remote
11 -1x User Manual
