MODEL: CAD-51H70PSB
5x1 seamless presentation switch with HDMI, USB-C, 4K60 support, and HDBaseT 3.0 output up to 70m. Ideal for meetings, classrooms & AV installs.
Upgrade your professional AV setup with the 5x1 HDMI™/USB-C 4K60 Seamless Presentation Switch, designed for smooth, ultra-high-definition switching in live environments. This powerful switcher combines five input ports (4x HDMI, 1x USB-C) with 4K60 4:4:4 resolution support for flawless image quality and seamless transitions.
With HDBaseT 3.0 output, this switch transmits uncompressed 4K signals up to 70 meters over a single Cat6/6a cable, ensuring zero-latency video in conference rooms, classrooms, auditoriums, and corporate AV installations.
Key features include:
-
✅ 5x1 input switching (4 HDMI + 1 USB-C)
-
✅ 4K60 4:4:4 resolution support for ultra-sharp visuals
-
✅ Seamless switching with zero black screen
-
✅ HDBaseT 3.0 output (up to 70m) with PoC
-
✅ Built-in scaler & EDID management
-
✅ Ideal for hybrid meetings, classrooms, boardrooms, and live streaming setups
Built for reliability, this compact AV presentation switch offers plug-and-play functionality with auto switching, RS232, IR, and front panel controls—making it a favorite among system integrators and AV technicians.
✅ Why Choose This Switch:
✔ Seamless transitions between presenters
✔ Simplified wiring via long-distance HDBaseT
✔ Supports BYOD via USB-C input
✔ Perfect for Pro AV, EdTech, and business environments
🛠️ Specifications Summary:
-
Inputs: 4x HDMI, 1x USB-C
-
Output: 1x HDBaseT 3.0 (up to 70m), 1x HDMI mirrored
-
Control: RS232, IR remote, front panel
-
Video: 4K60Hz 4:4:4, HDCP 2.2 compliant
-
Power: PoC-enabled, included adapter
🌍 Use Cases:
-
Corporate conference rooms
-
Lecture halls and classrooms
-
Live event control rooms
-
Hybrid meeting setups
This presentation switch is packed with features, including 3 HDMI inputs, 2 USB-C inputs (with DP Alt mode, USB 2.0, 100M Ethernet, and 60W charging), and 1 HDMI output. It also has HDBT support, which allows for power over ethernet and uncompressed signal extension up to 230ft/70m or 131ft/40m. With a variety of display modes (Single/PIP/PBP/Triple/Quad) and USB 2.0 local KVM switching, this product offers seamless presentation and versatile control options. It even includes bi-directional RS-232 and IR control signal pass-through, as well as an audio matrix with independent EQ, volume, and delay adjustment.
Features
☆ HDCP 2.2 and DP 1.2 compliant
☆ Support 18Gbps video bandwidth
☆ Support video resolution up to 4K@60Hz 4:4:4, as specified in HDMI 2.0b
☆ Uncompressed 4K60 over HDBT 3.0 up to 132ft/40m via single CAT6A (F/FTP) cable
☆ Uncompressed 1080P&4K30 over HDBT 3.0 up to 230ft/70m via single CAT6A (F/FTP)
cable
☆ Up to 5 categories of Multiview display modes: Single/PIP/PBP/Triple/Quad
☆ Support 5x1 seamless switching (single screen) and fast switching (Multiview) function
☆ Input: 2x USB-C, 3x HDMI, 1x Analog audio, 1x Dante® 2ch
☆ Output: 1x HDMI and 1x HDBT mirrored, 1x Analog audio, 1x Dante® 2ch
☆ HDMI and HDBaseT (PoE) outputs (Mirrored)
☆ Dante® 2x2 audio input and output
☆ USB-C supports DisplayPort Alt mode for A/V, USB 2.0, 100M Ethernet and 60W charging
☆ Local USB 2.0 KVM switching and extending USB 2.0 over HDBT 3.0
☆ Signal input supports manual switching and automatic switching modes
☆ Support analog/Dante® audio embedding, analog/Dante® audio de-embedding output
☆ CEC/RS-232 control external devices ON/OFF
☆ Advanced EDID management
☆ Flexible control via front panel buttons, IR remote, RS-232, TCP/IP or Web GUI
☆ Support standard PoE power supply (TX_PSE, RX_PD)
Package Contents

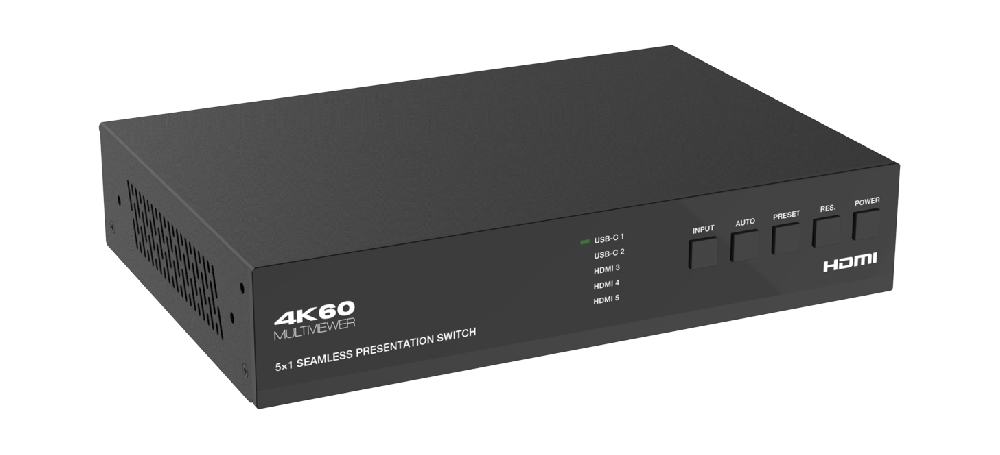

① 1 x 5x1 Seamless Presentation Switch
② 1 x HDBaseT Receiver
③ 1 x IR Blaster Cable (1.5 meters)
④ 1 x IR Wideband Receiver Cable (1.5 meters)
⑤ 2 x 3pin-3.5mm Phoenix Connector (male)
⑥ 3 x 5pin-3.5mm Phoenix Connector (male)
⑦ 4 x Mounting Ear
⑧ 8 x Machine Screw
⑨ 1 x 24V/8A Desktop Power Supply & 1 x AC Power Cord (1.5 meters)
⑩ 1 x IR Remote
11 -1 x User Manual
