MODEL: CAD-MXB44H
Introduction

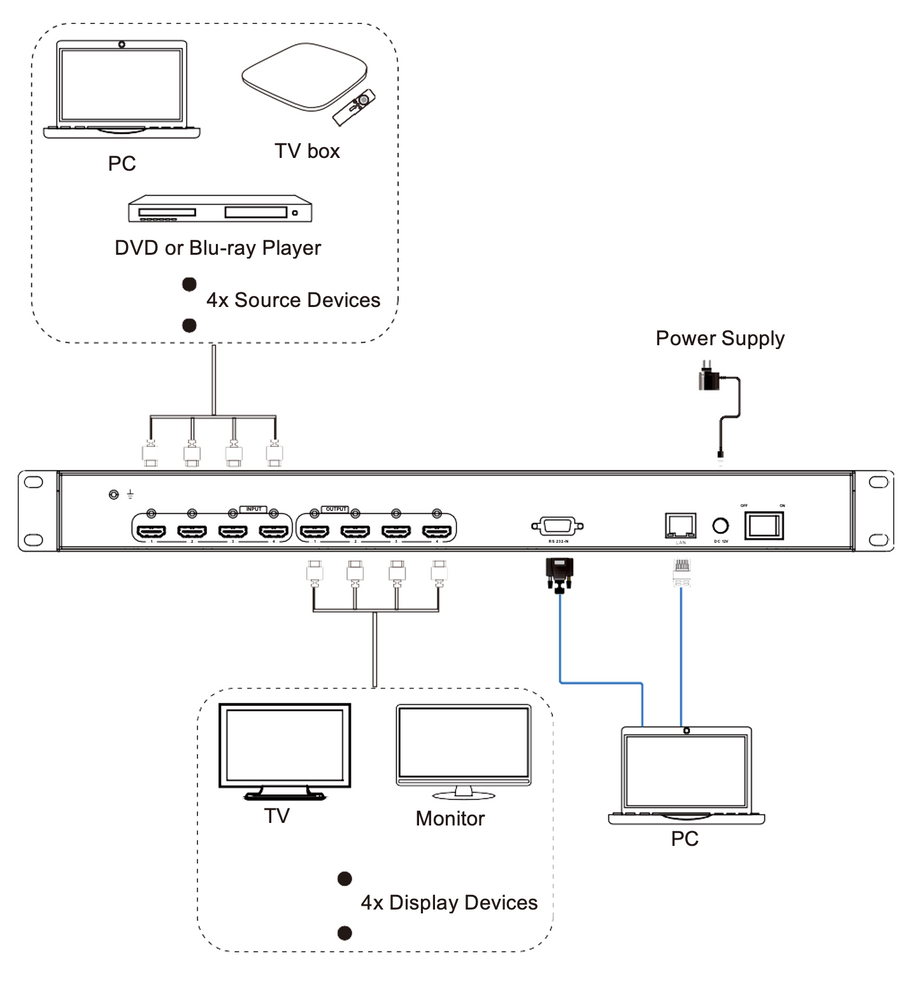

This 4K60 HDMI™ Matrix is a perfect solution for video transmission from four HDMI™
sources to four HDMI™ displays. 4 channel inputs support video resolution up to 4K60Hz.
4 channel outputs support independent resolution scaler mode (Bypass/4K->1080P/Auto).
This matrix supports up to 4 scene presets, which can be saved, recalled or cleared.
Advanced EDID management is supported.
This matrix can be controlled through the front panel buttons, IR remote control, RS-232
commands and Web GUI.
Features
☆ 4x4 matrix switching
☆ HDCP 2.2 compliant
☆ Supports 18Gbps video bandwidth
☆ 4 channel inputs support video resolution up to 4K60Hz, as specified in HDMI™ 2.0
☆ 4 channel outputs support independent resolution scaler mode (Bypass/4K->1080P/Auto)
☆ HDMI™ audio formats: LPCM 2.0/5.1/7.1CH, Dolby Digital, DTS 5.1, Dolby Digital+,
Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos, DTS:X
☆ Advanced EDID management, supporting preset EDID, copy EDID, custom EDID (upload)
☆ Up to 4 preset scenes, which can be saved, recalled or cleared
☆ 1U rack mounted design with front panel LCD display
☆ Control via the front panel buttons, IR remote control, RS-232 commands and Web GUI
Package Contents
① 1x 4K60 4x4 HDMI™ Matrix
② 1x IR Remote
③ 1x 12V/2.5A Multinational Power Supply (Locking)
④ 1x User Manual
