Model : CAD-MXC44A
Introduction
The 48Gbps 4x4 HDMI Matrix supports the transmission of high resolution video (up to 4K2K@120Hz 4:4:4 12bit and 8K4K@60Hz 4:2:0 12bit) and multi-channel digital audio from 4 HDMI sources to 4 HDMI displays. Resolution downscaling and HDR conversion for each HDMI output are also supported.

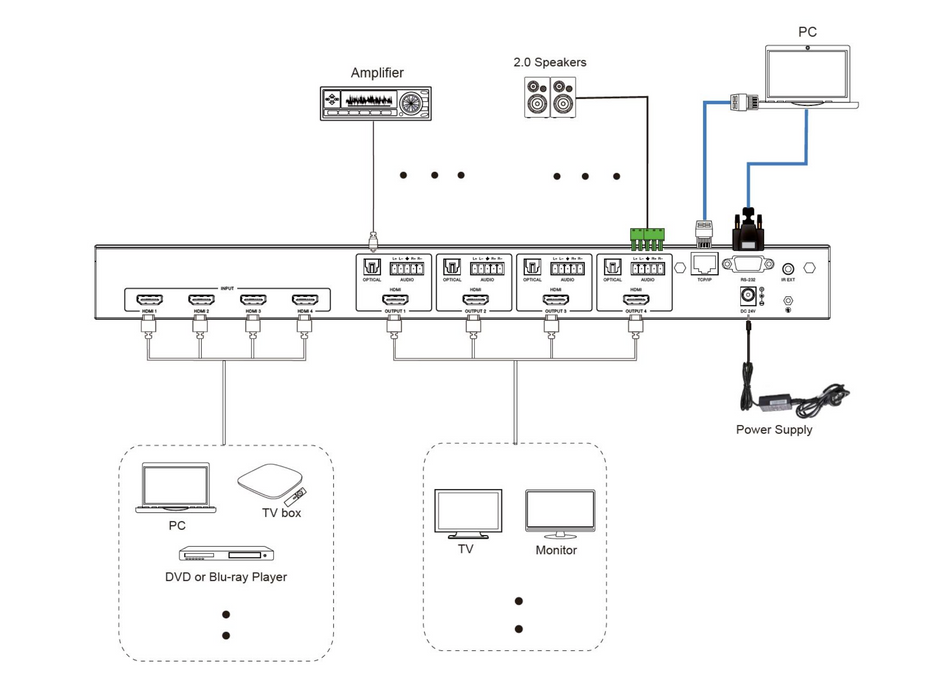

It works with Blue-Ray players, Set-Top boxes, Home Theater PCs, and game consoles which connect to an HDMI display, and can be controlled via front panel buttons, IR remote, RS-232, and Web GUI.
Features
☆ HDCP 2.3 compliant
☆ 4 × HDMI inputs can be independently routed to 4 × HDMI outputs
☆ Video resolution is up to 8K60Hz 4:2:0, 8K30Hz 4:4:4 and 4K120Hz 4:4:4, as
specified in HDMI 2.1
☆ Support 48Gbps video bandwidth
☆ HDR, HDR10, HDR10+, Dolby Vision pass-through

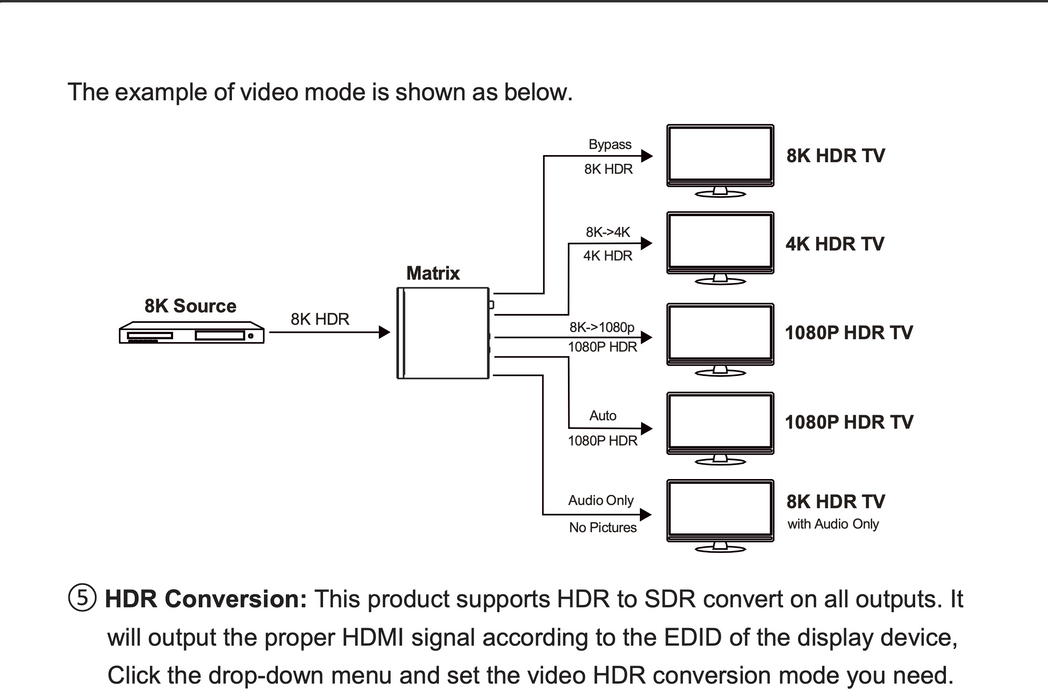

☆ Support resolution downscaling and HDR conversion for each output port
☆ VRR, ALLM, QMS, QFT, SBTM are supported
☆ Support optical audio and balanced analog audio output
☆ Advanced EDID management

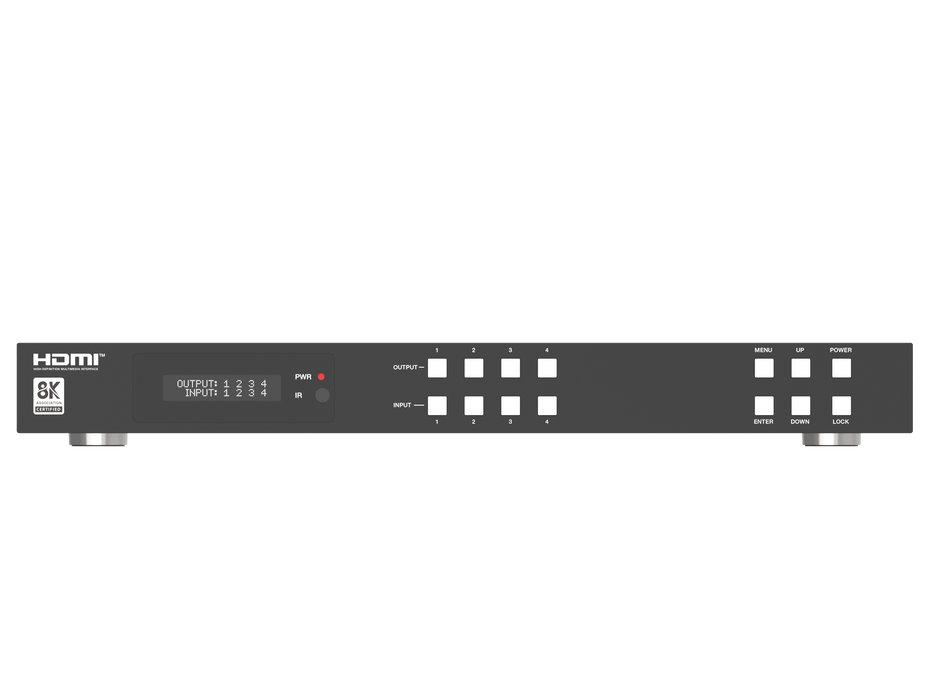

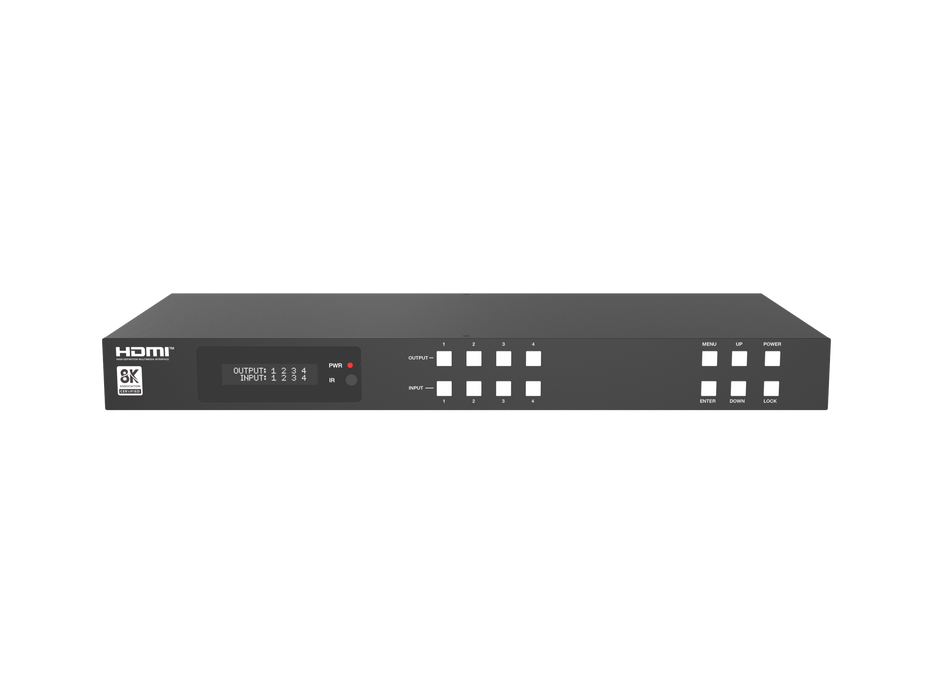

☆ Control via front panel buttons, IR remote, RS-232, and Web GUI
Package Contents
① 1 × 48Gbps 4×4 HDMI Matrix
② 1 × 24V/2.7A Locking Power Adapter
③ 1 × IR Remote
④ 1 × IR Wideband Receiver Cable (12V, 1.5m)
⑤ 1 × AC Power Cord (1.5m)
⑥ 1 × RS-232 Serial Cable (1.5m, male to female head)
⑦ 4 × 5pin-3.81mm Phoenix Connector
⑧ 8 × Machine Screw (KM3*6)
⑨ 2 × Mounting Ear
⑩ 1 × User Manual
