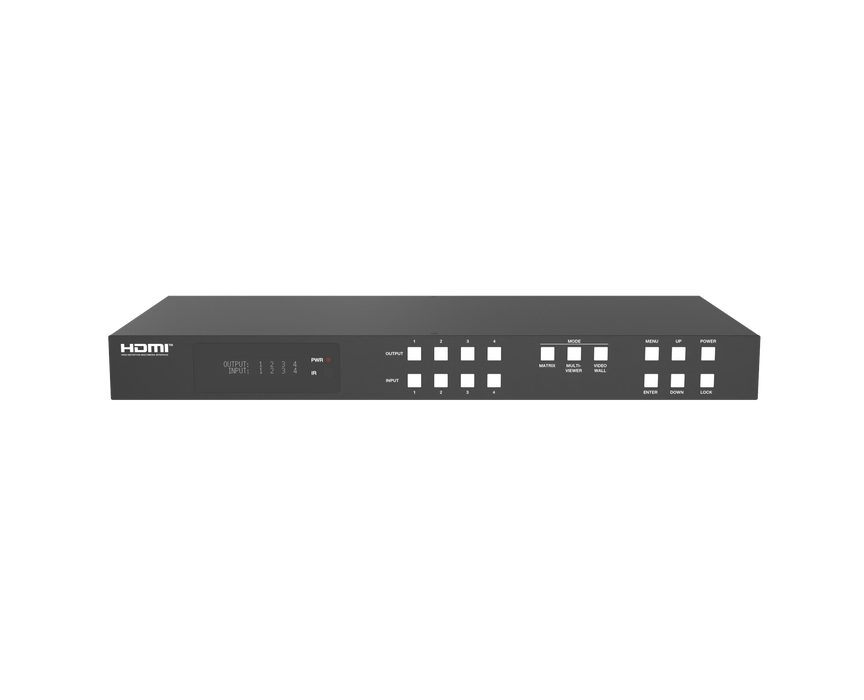

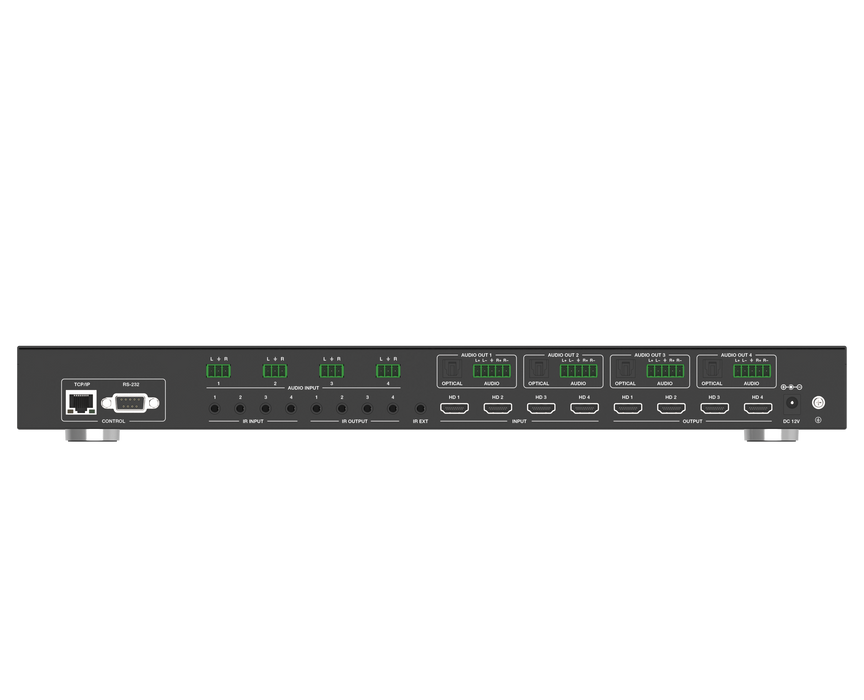

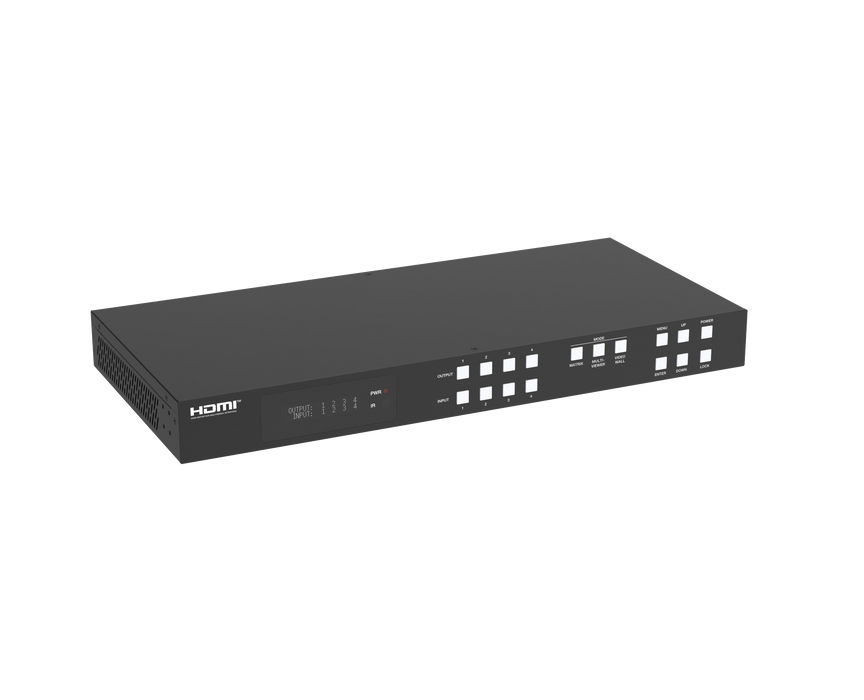

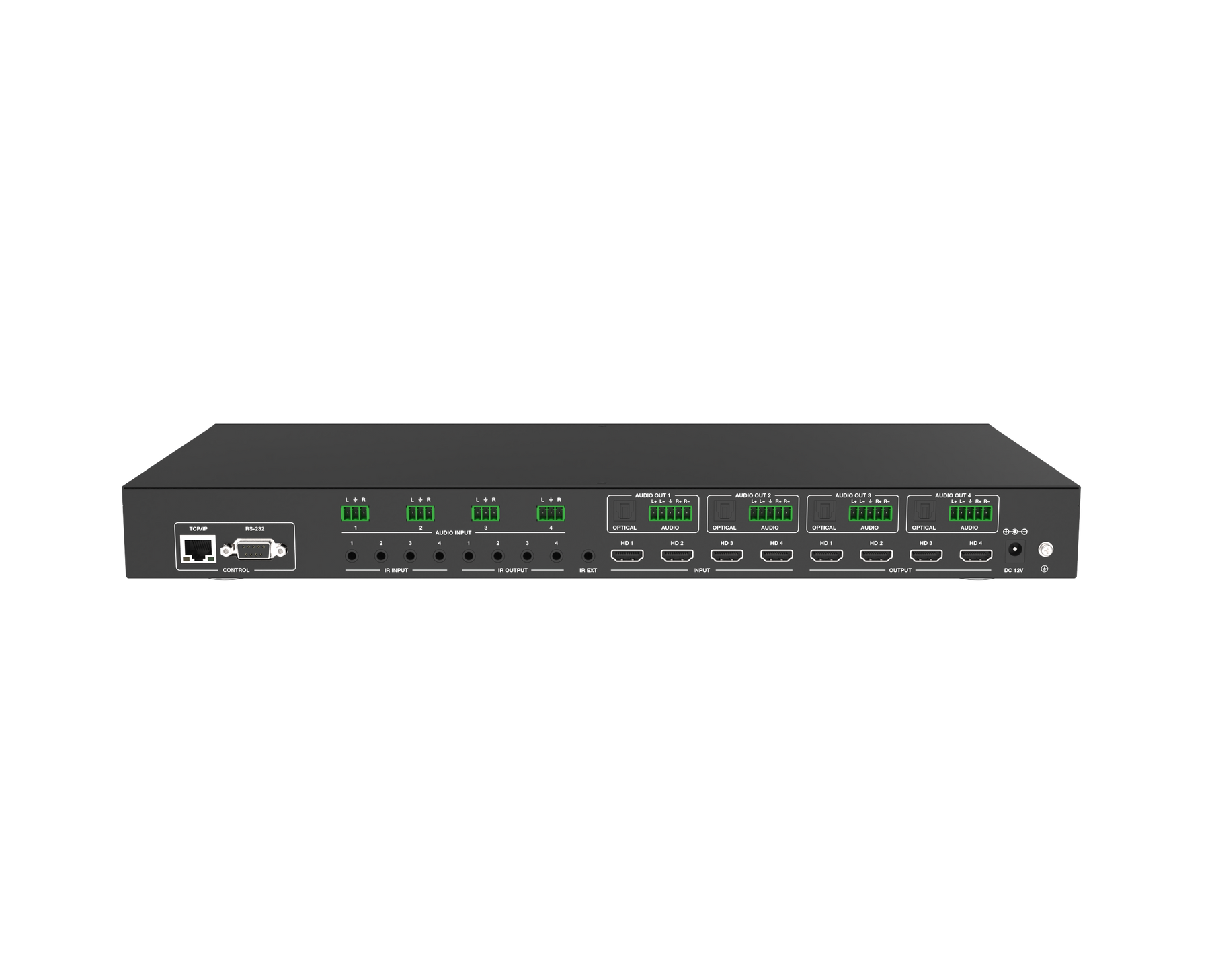

Model : CAD-MXB44VW
Introduction

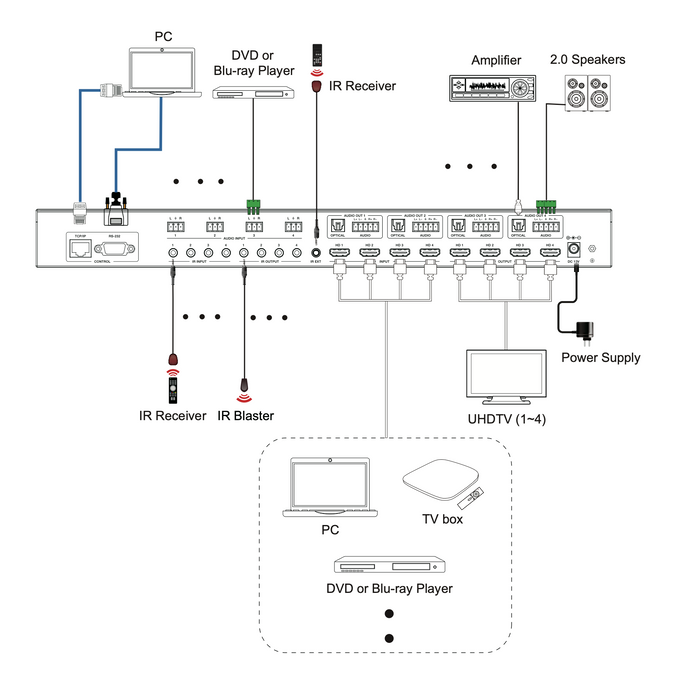

The 18Gbps 4x4 Seamless Matrix is a perfect solution for video transmission from
4 HDMI sources to 4 HDTV displays. It has video wall and multi-viewer functions
with multiple display modes. 4x4 IR matrix, audio embedded and de-embedded are
also supported. Video resolution is up to 4K@60Hz 4:4:4. Each of the sources can
be individually scaled. And seamless switching ensures a smooth picture transition
without frame loss.

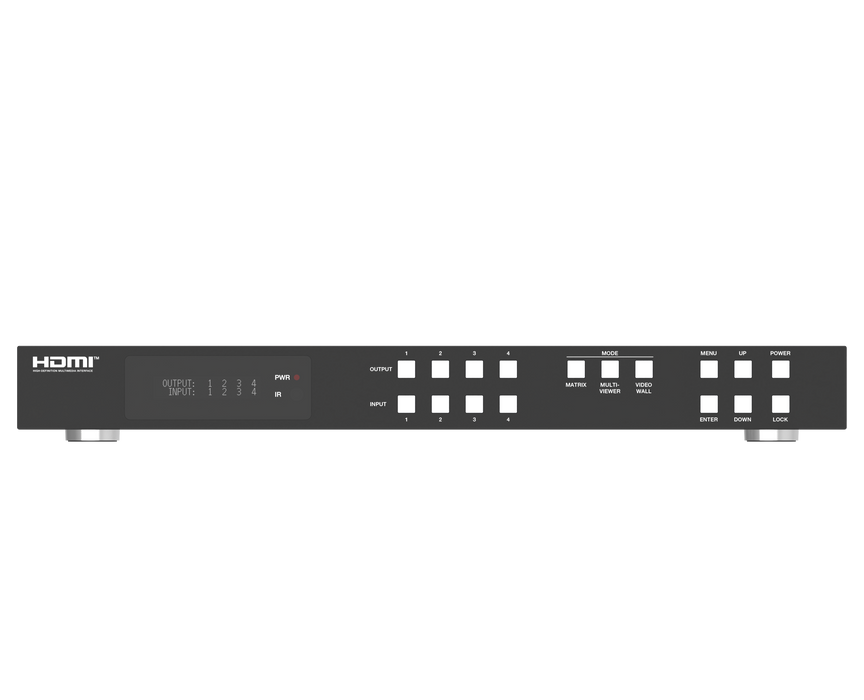

This matrix can be controlled via front panel buttons, IR remote, RS-232 and Web GUI.
Features
☆ HDCP 2.2 compliant
☆ Support video resolution up to 4K@60Hz 4:4:4and 18Gbps video bandwidth, as
specified in HDMI 2.0
☆ Support 12 display categories in multi-viewer mode, and 9 splicing modes in
video wall mode
☆ HDMI audio format: LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-
EX, DTS-96/24, DTS High Res, DTS-HD Master Audio
☆ Support CEC control, and multiple video resolution output
☆ Advanced EDID management
☆ Control via front panel buttons, IR remote, RS-232, and Web GUI
Package Contents
① 1 × 18Gbps 4x4 Seamless Matrix
② 1 × 12V/2.5A Locking Power Adapter
③ 5 × 12V IR Wideband Receiver Cable (1.5m)
④ 4 × IR Blaster Cable (1.5m)
⑤ 1 × RS-232 Serial Cable (1.5m, male to female head)
⑥ 4 × 5pin-3.81mm Phoenix Connector
⑦ 4 × 3pin-3.81mm Phoenix Connector
⑧ 8 × Machine Screw
⑨ 2 × Mounting Ear
⑩ 1 × User Manual
