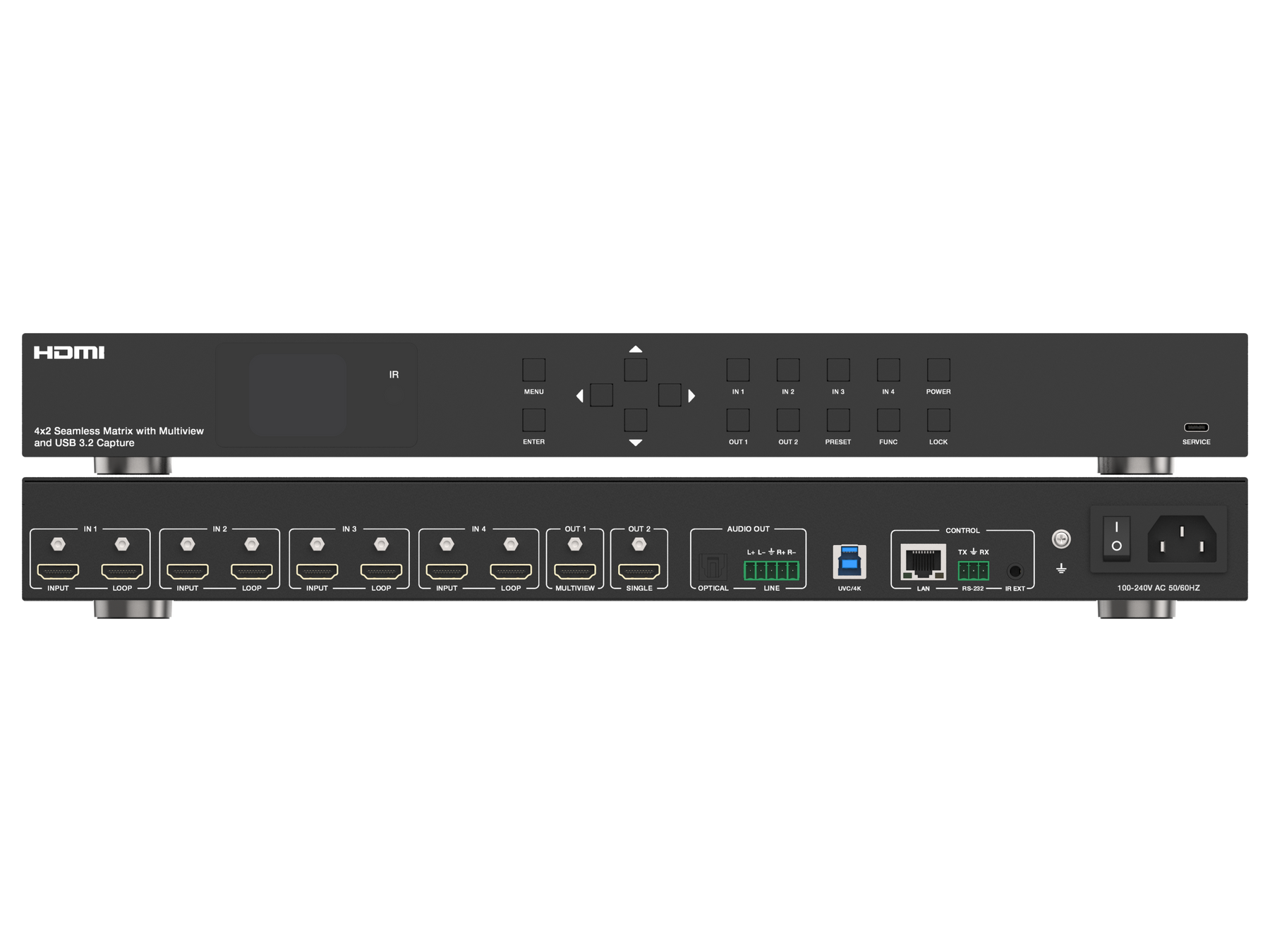

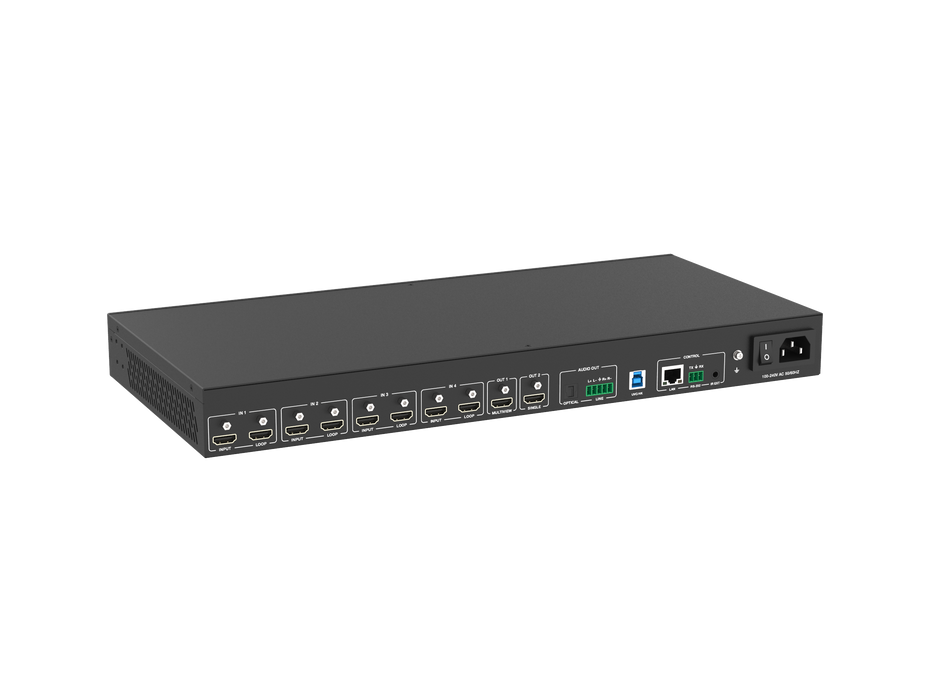

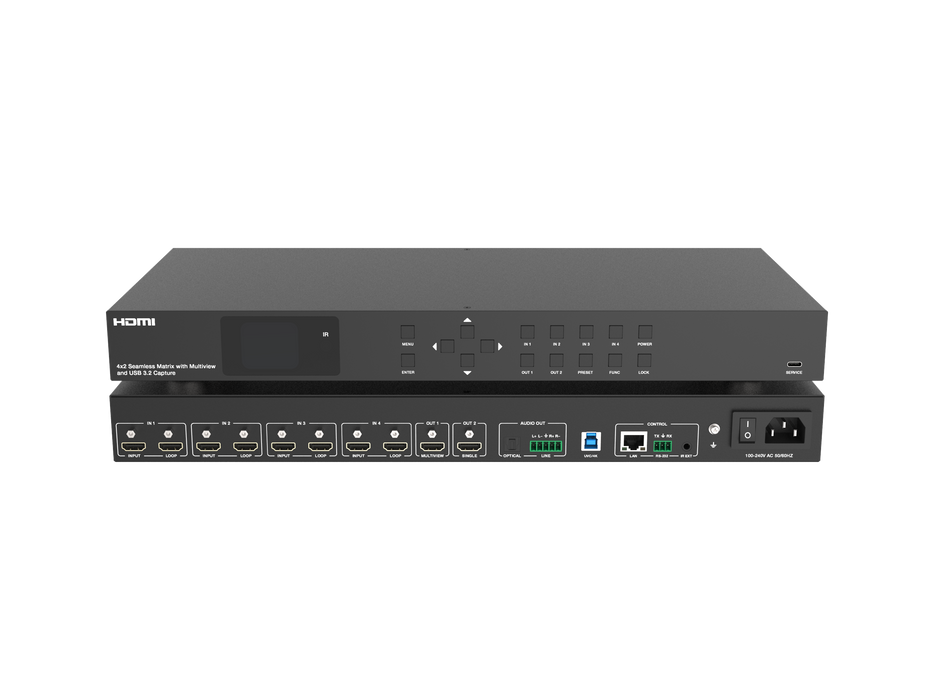

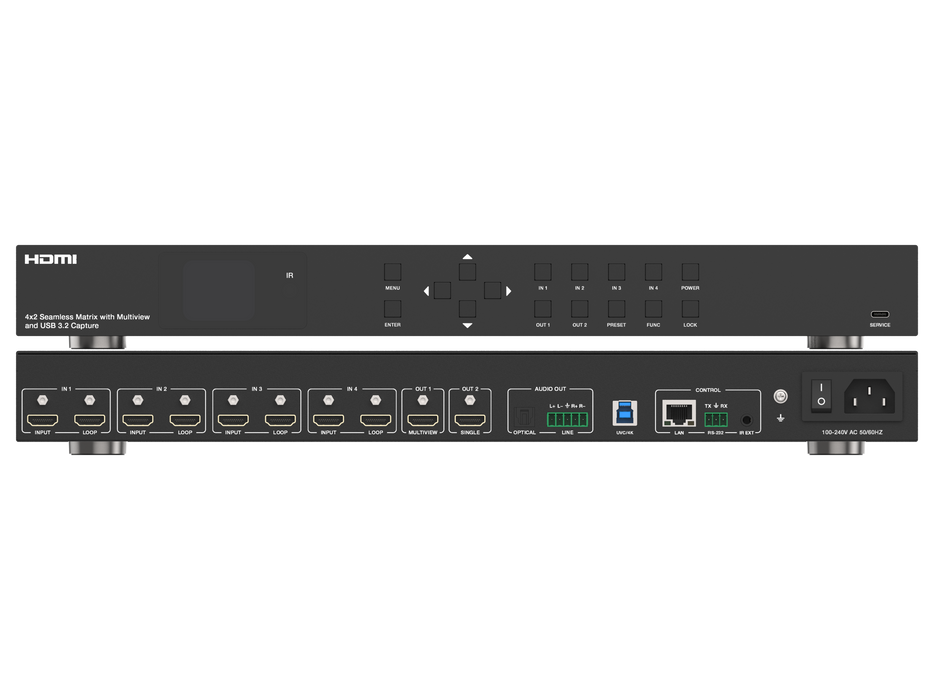

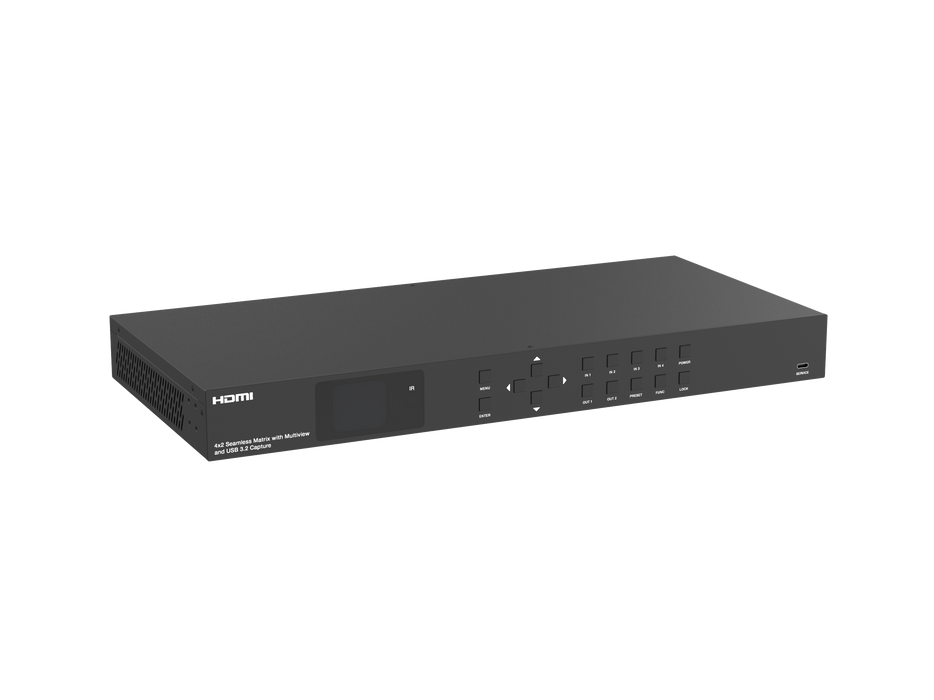

4x2 Seamless Matrix Switcher with Multiview and USB 3.2 Captur- CAD-MXB42LMVUC
MODEL: CAD-MXB42LMVUC
Introduction
The 4x2 seamless matrix switcher supports video resolutions up to 4K@60Hz 4:4:4 8bit deep
color and HDCP 2.2 and 1.x compliant, it features multi-view function for multi sources can
be displayed on single screen. This matrix switcher supports two HDMI™ outputs and one
USB 3.2 capture output.

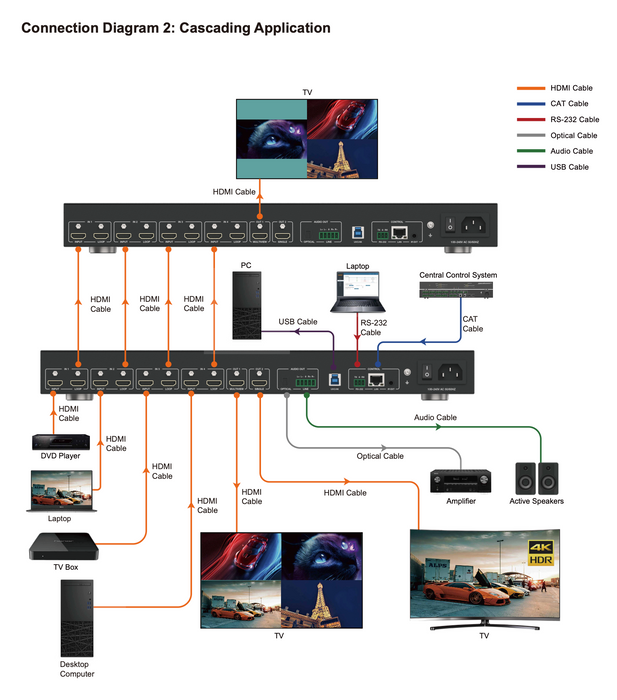

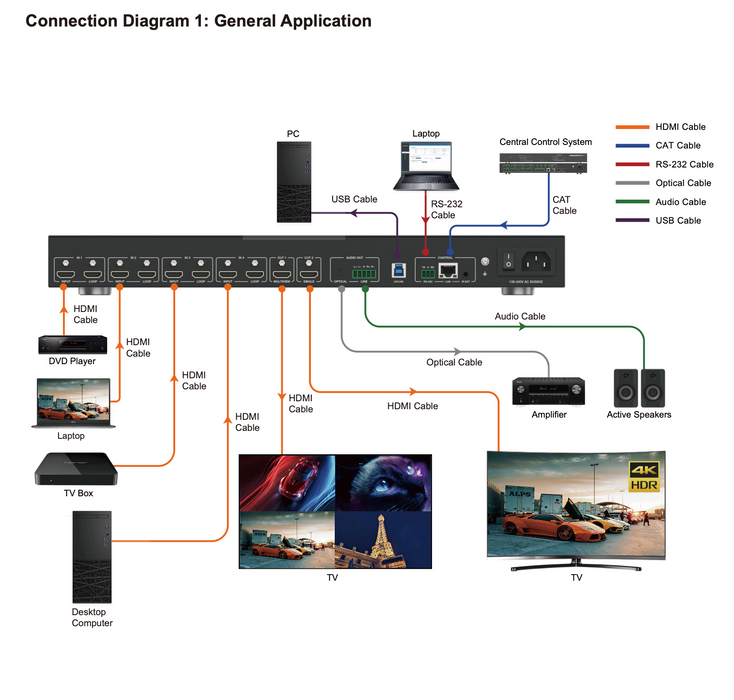

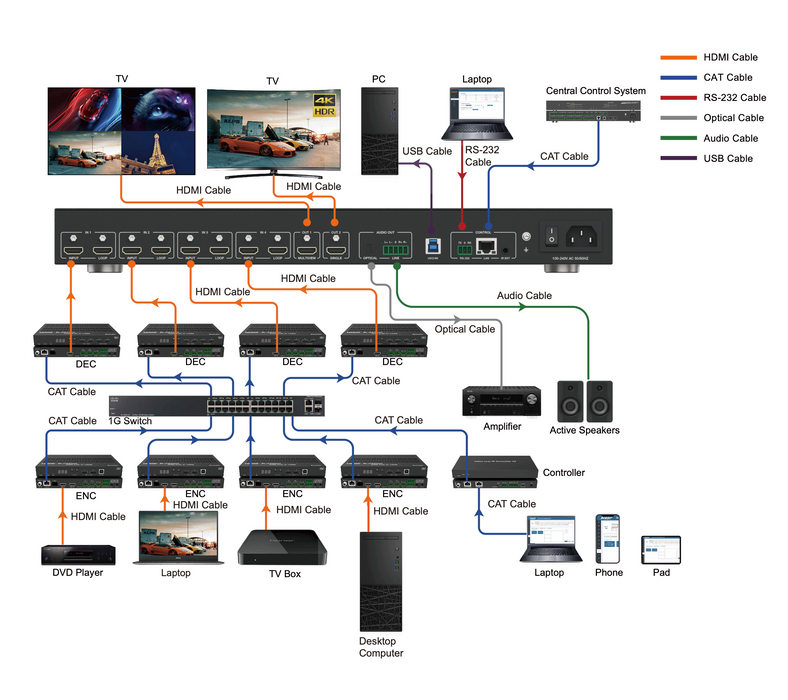

This matrix switcher features four HDMI™ inputs and each input with loop out port for
cascading connection. One local USB 3.2 host for UVC/UAC capture usage case.
This matrix switcher can be controlled via front panel buttons, remote control, API commands
using RS-232 or TCP/IP. A Web server / GUI is built in that features A/V control, and input
EDID management. The product is ideal for video conference rooms.
Features
☆ Video resolutions up to 4K@60Hz 4:4:4, as specified in HDMI™ 2.0b
☆ HDCP 2.2 and HDCP 1.x compliant
☆ USB 3.2 Gen 1 up to 5Gbps
☆ 4x2 seamless switching (single screen) and fast switching (multiview) function
☆ 4K video capture over USB 3.2 Gen 1 with standard UVC/UAC protocol
☆ Seamless switching without black screen or tearing screen (matrix mode)
☆ Multiple multiview display modes: Auto/Single/PIP/PBP/Triple/Quad view and customized
layouts
☆ Supports HDR10, HDR10+, HLG and Dolby Vision pass-through
☆ Supports HDR to SDR conversion
☆ Auto or manual switching mode
☆ Input: 4x HDMI™, 1x USB 3.2 Gen 1 host
☆ Output: 4x HDMI™ loop, 2x HDMI™, 1x Optical audio, 1x Analog audio
☆ Audio de-embedded
☆ Advanced EDID management
☆ Flexible control via front panel buttons, IR remote, RS-232, TCP/IP or Web GUI
Package Contents
① 1x 4x2 Seamless Matrix Switcher
② 1x IR Remote Control
③ 1x USB 3.0 Host Cable (USB-A to USB-B, 0.5m)
④ 1x IR Wideband Receiver Cable (1.5m)
⑤ 1x 3pin-3.5mm Phoenix Connector (male)
⑥ 1x 5pin-3.5mm Phoenix Connector (male)
⑦ 2x Mounting Ear
⑧ 8x Machine Screw
⑨ 1x Multinational AC Power Cord (1.5m, optional)
⑩ 1x User Manual
