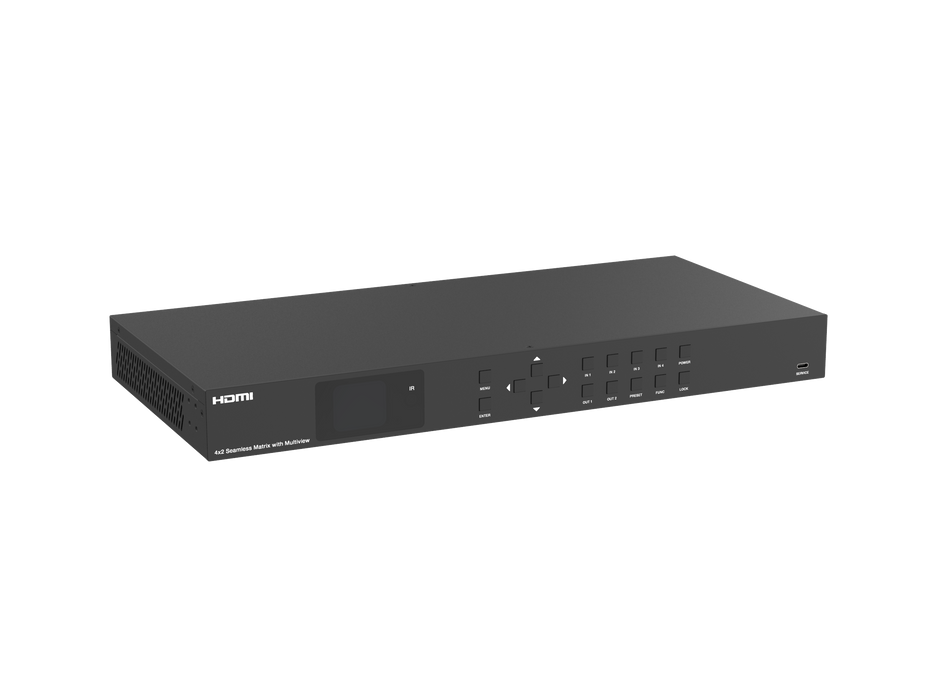

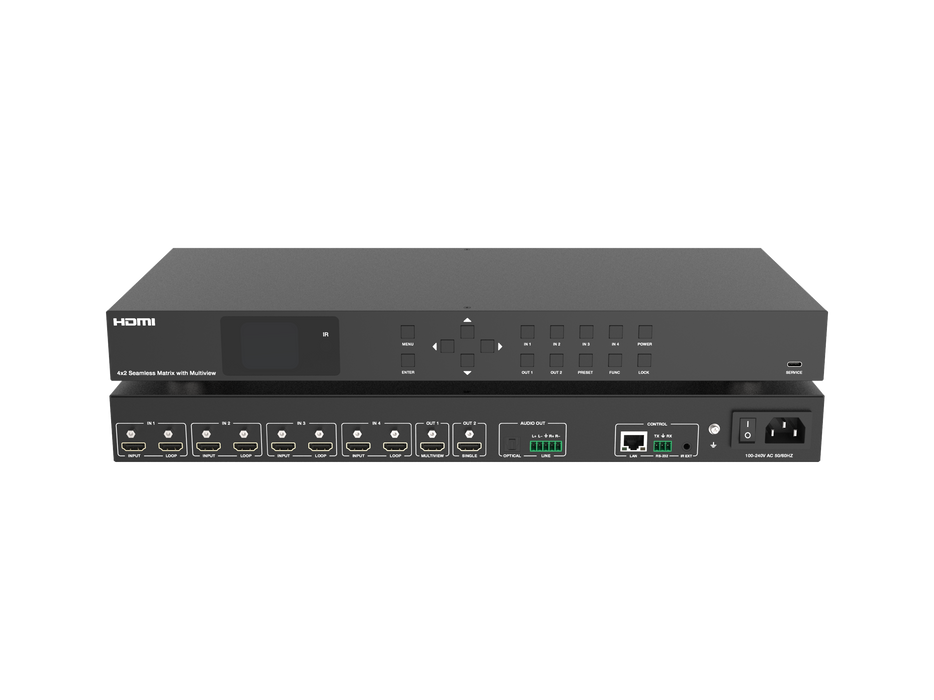

MODEL: CAD-MXB42LMV
. Introduction

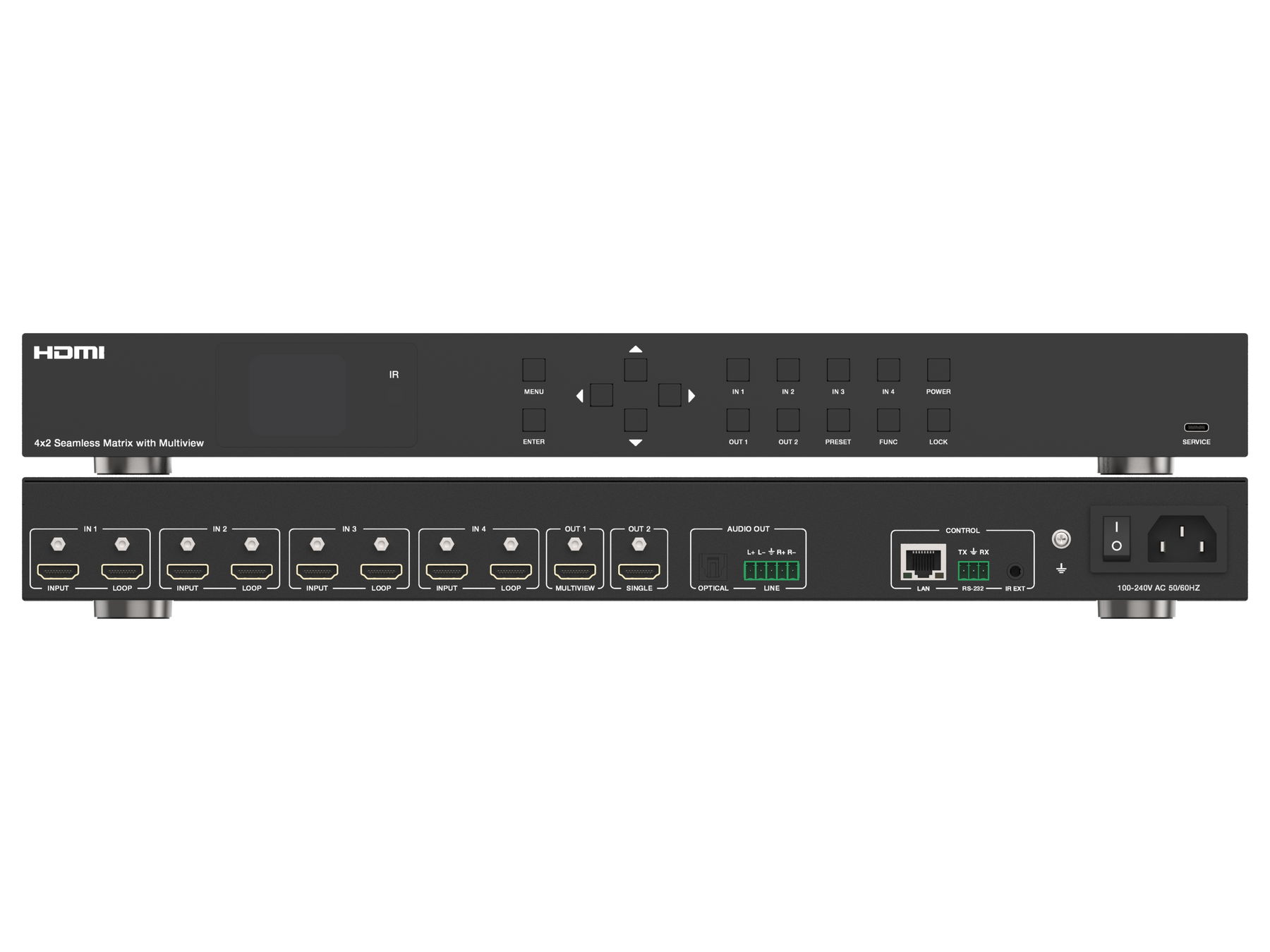

The 4x2 seamless matrix switcher supports video resolutions up to 4K@60Hz 4:4:4 8bit deep
color and HDCP 2.2 and 1.x compliant, it features multi-view function for multi sources can
be displayed on single screen. This matrix switcher supports two HDMI™ outputs.

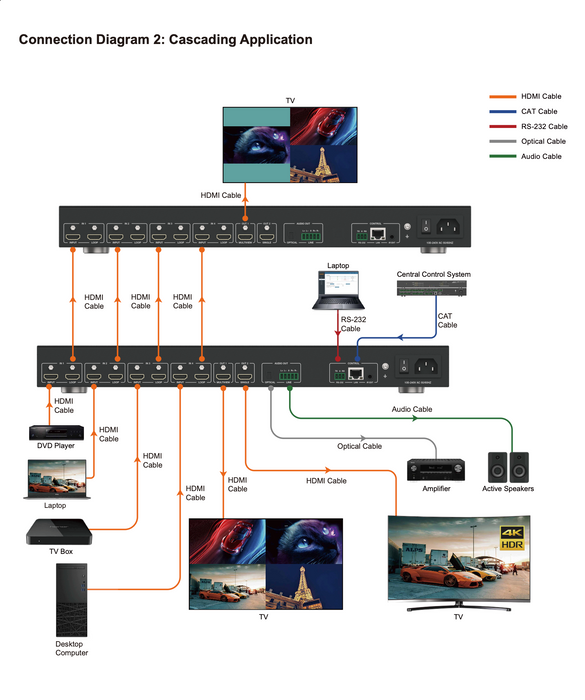

This matrix switcher features four HDMI™ inputs and each input with loop out port for
cascading connection.

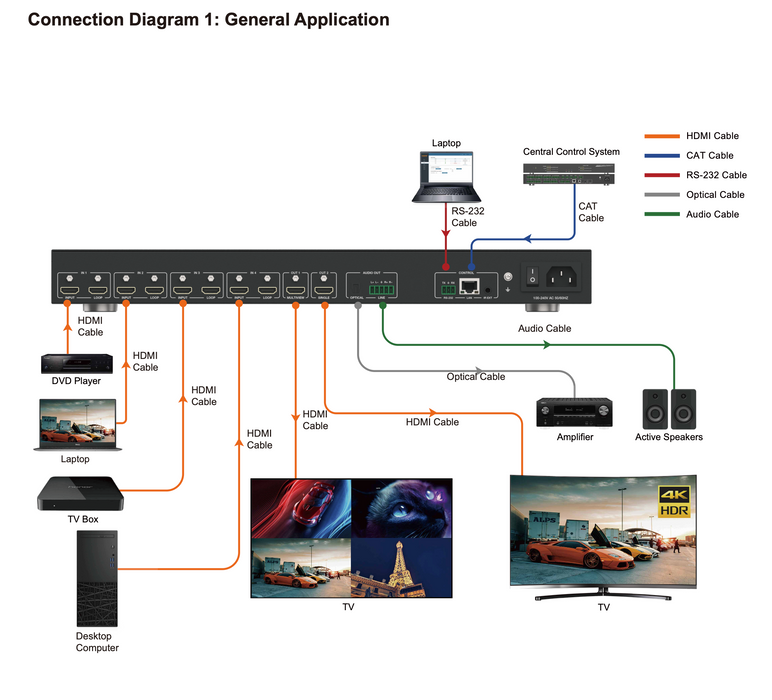

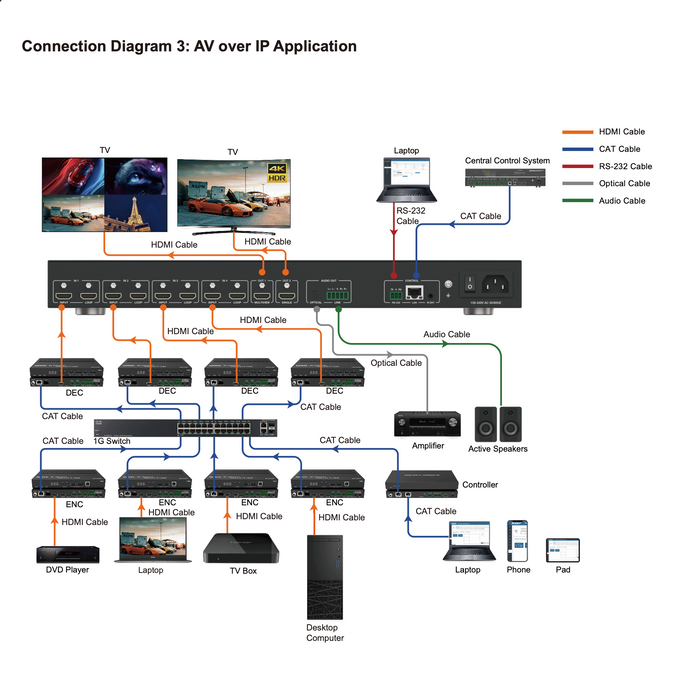

This matrix switcher can be controlled via front panel buttons, remote control, API commands
using RS-232 or TCP/IP. A Web server / GUI is built in that features A/V control, and input
EDID management. The product is ideal for video conference rooms.
Features
☆ Video resolutions up to 4K@60Hz 4:4:4, as specified in HDMI™ 2.0b
☆ HDCP 2.2 and HDCP 1.x compliant
☆ 4x2 seamless switching (single screen) and fast switching (multiview) function
☆ Seamless switching without black screen or tearing screen (matrix mode)

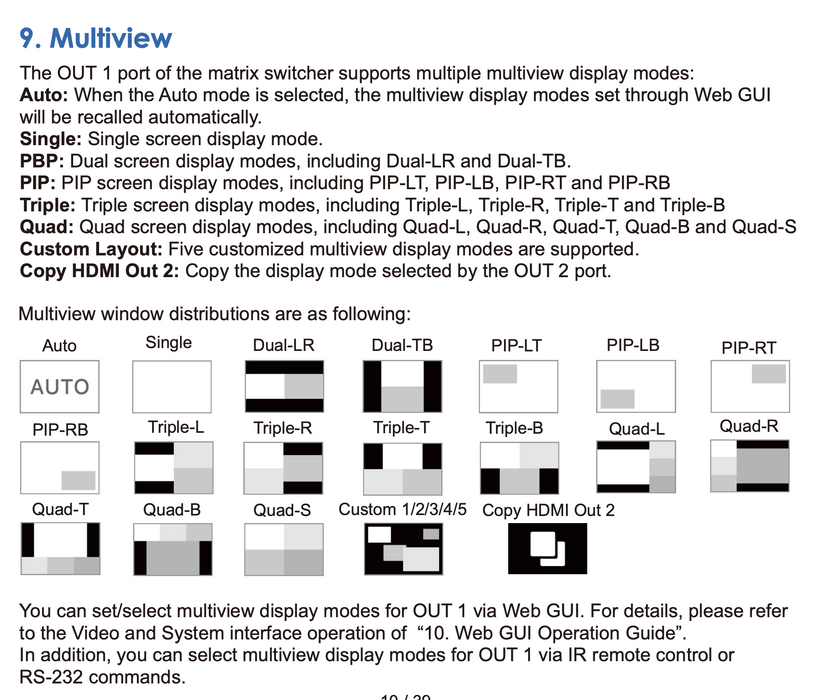

☆ Multiple multiview display modes: Auto/Single/PIP/PBP/Triple/Quad view and customized
layouts
☆ Supports HDR10, HDR10+, HLG and Dolby Vision pass-through
☆ Supports HDR to SDR conversion
☆ Auto or manual switching mode

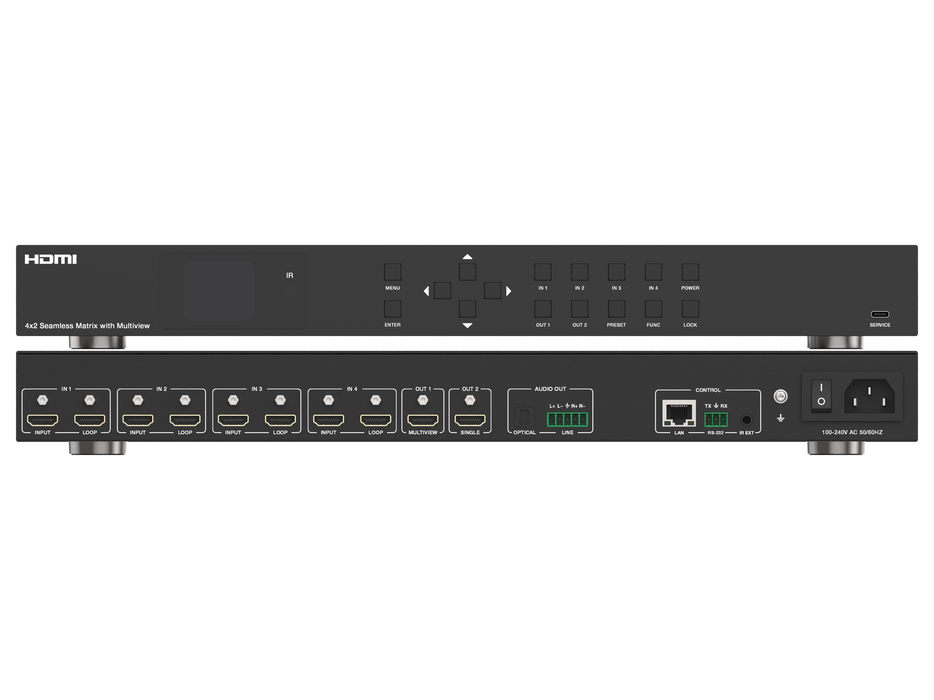

☆ Input: 4x HDMI™

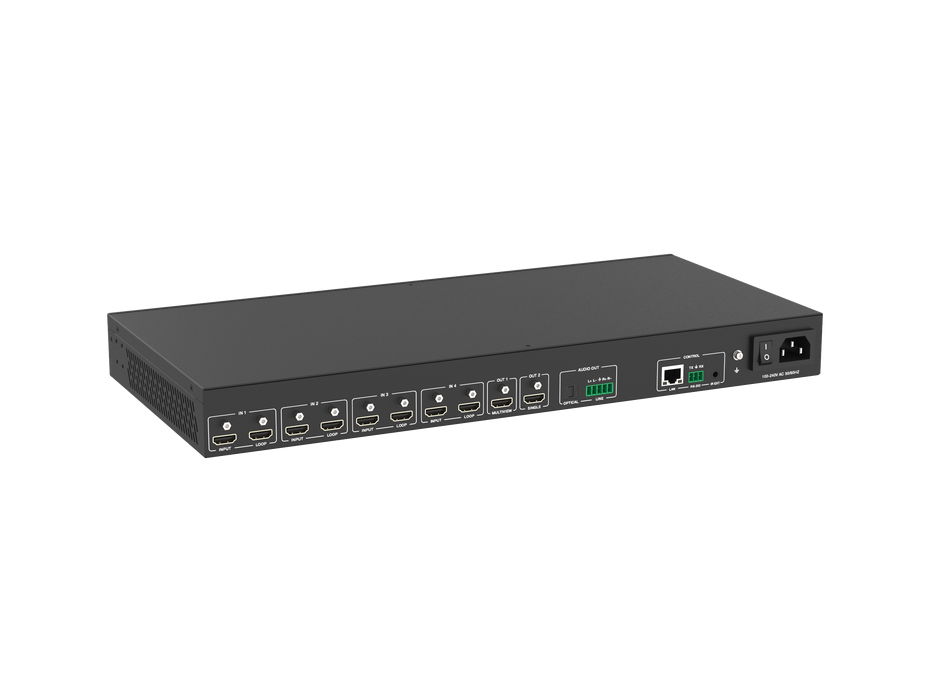

☆ Output: 4x HDMI™ loop, 2x HDMI™, 1x Optical audio, 1x Analog audio
☆ Audio de-embedded
☆ Advanced EDID management
☆ Flexible control via front panel buttons, IR remote, RS-232, TCP/IP or Web GUI
Package Contents
① 1x 4x2 Seamless Matrix Switcher

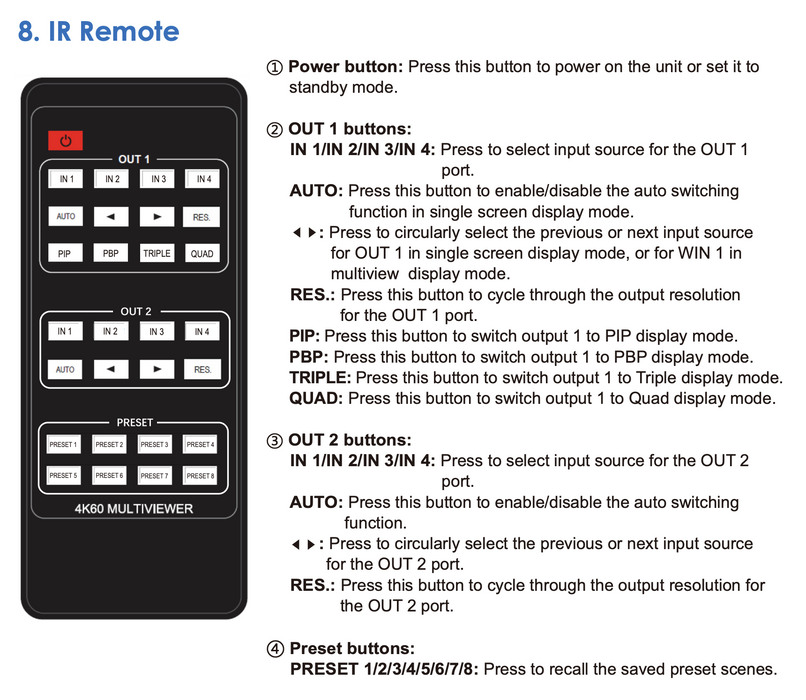

② 1x IR Remote Control
③ 1x IR Wideband Receiver Cable (1.5m)
④ 1x 3pin-3.5mm Phoenix Connector (male)
⑤ 1x 5pin-3.5mm Phoenix Connector (male)
⑥ 2x Mounting Ear
⑦ 8x Machine Screw
⑧ 1x Multinational AC Power Cord (1.5m, optional)
⑨ 1x User Manual
