Model : CAD-HDPWP3100CB

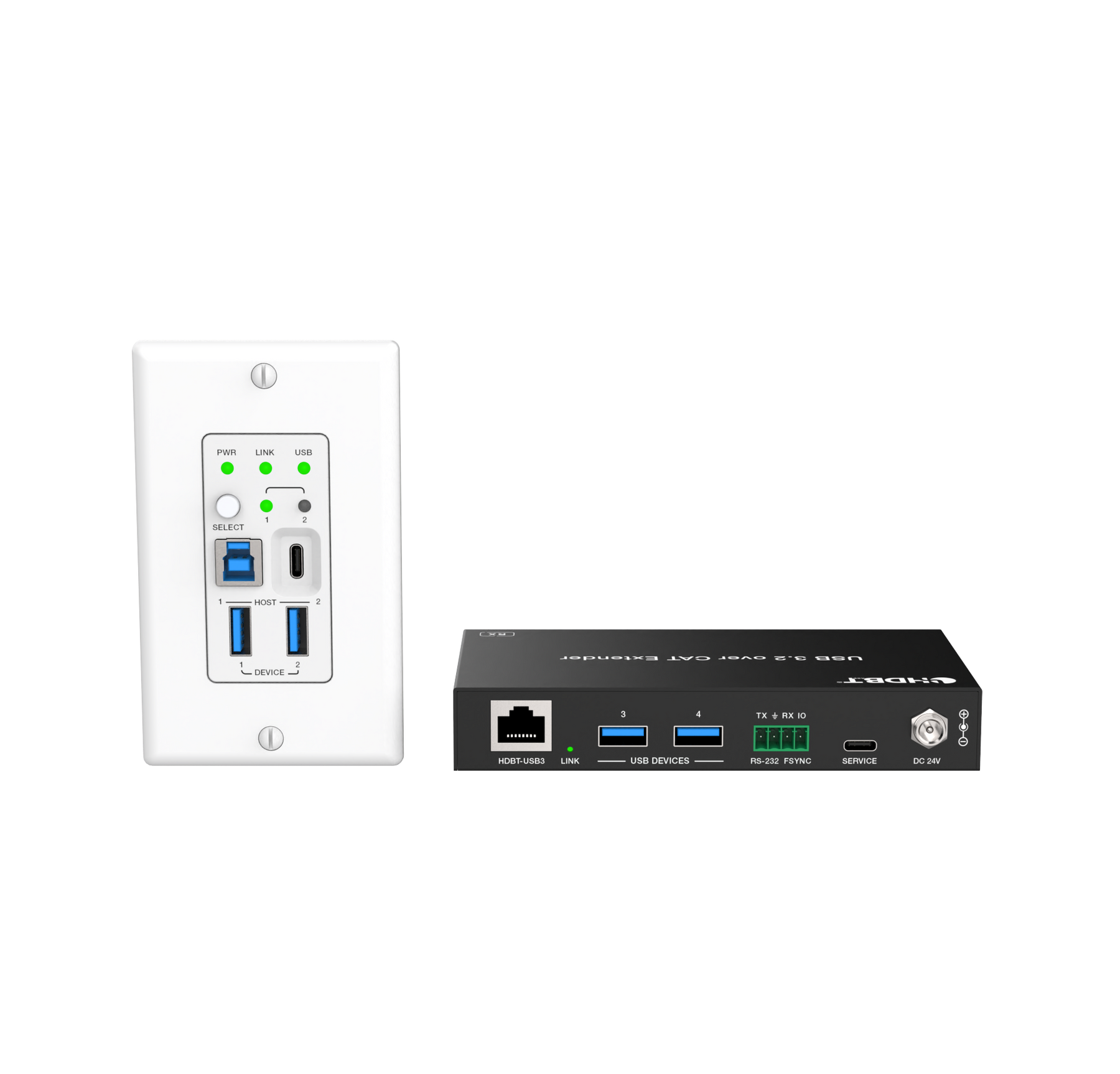

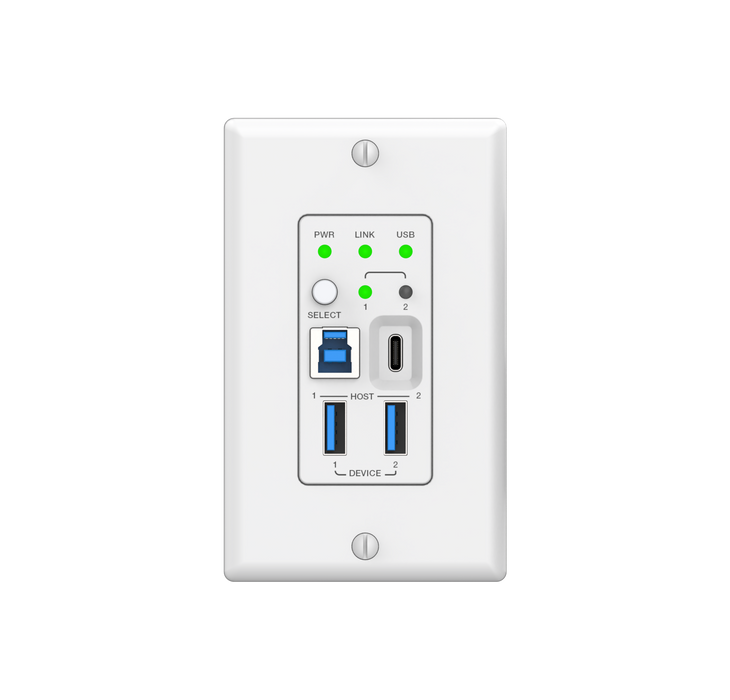

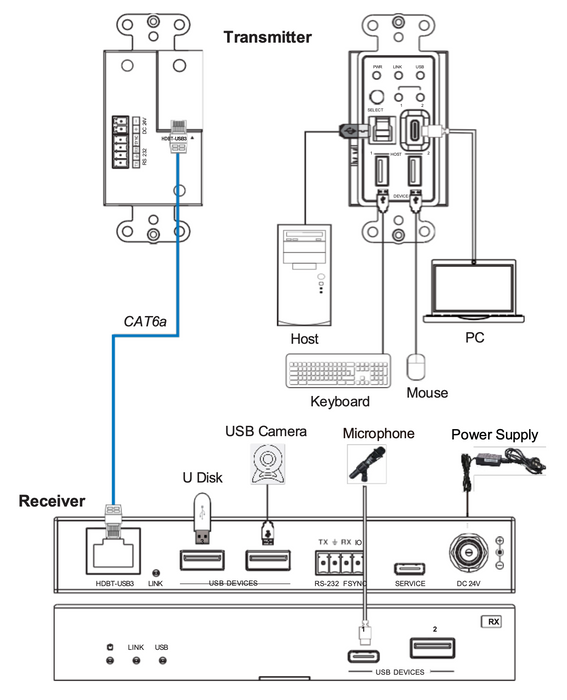

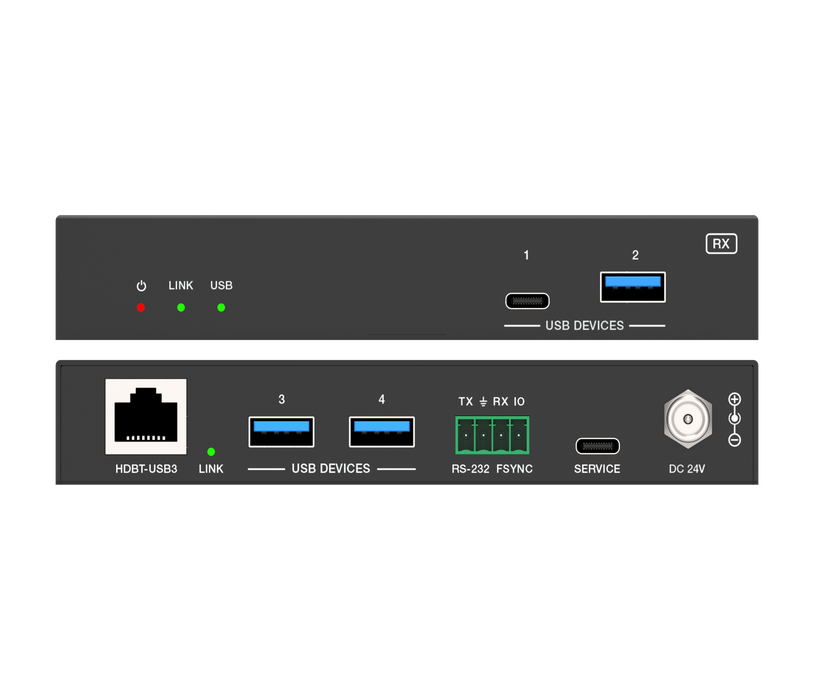

This USB 3.2 Gen 1 extender wall plate supports high-speed 5Gbps data transmission over a single CAT6a cable up to 100m (328ft). The transmitter wall plate includes selectable USB-C and USB-B input ports plus two USB-A loop out ports, while the receiver box offers one USB-C and three USB-A device ports. Featuring bi-directional 24V Power over Cable (PoC), it requires power supply at only one end. Ideal for extending USB connections to devices such as webcams, PTZ cameras, keyboards, mice, microphones, flash drives, printers, scanners, and touch panels over long distances.

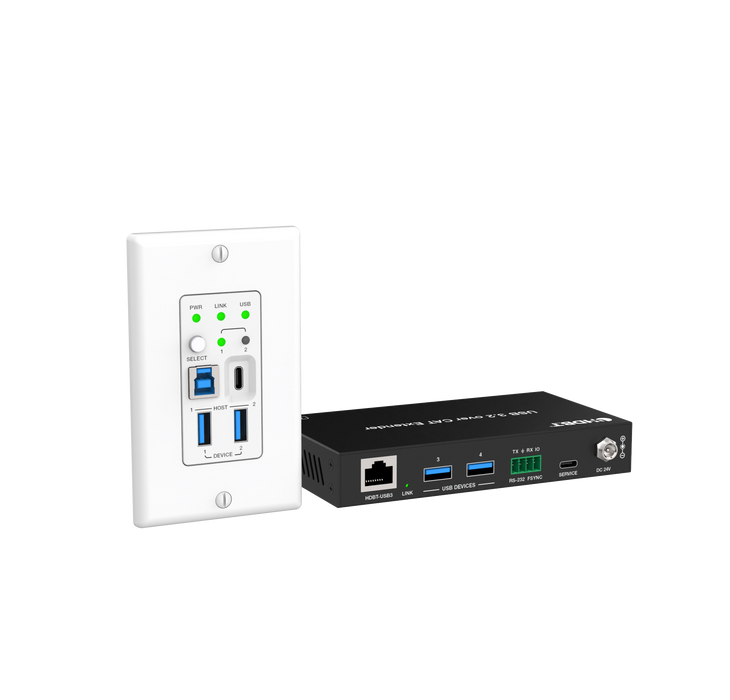

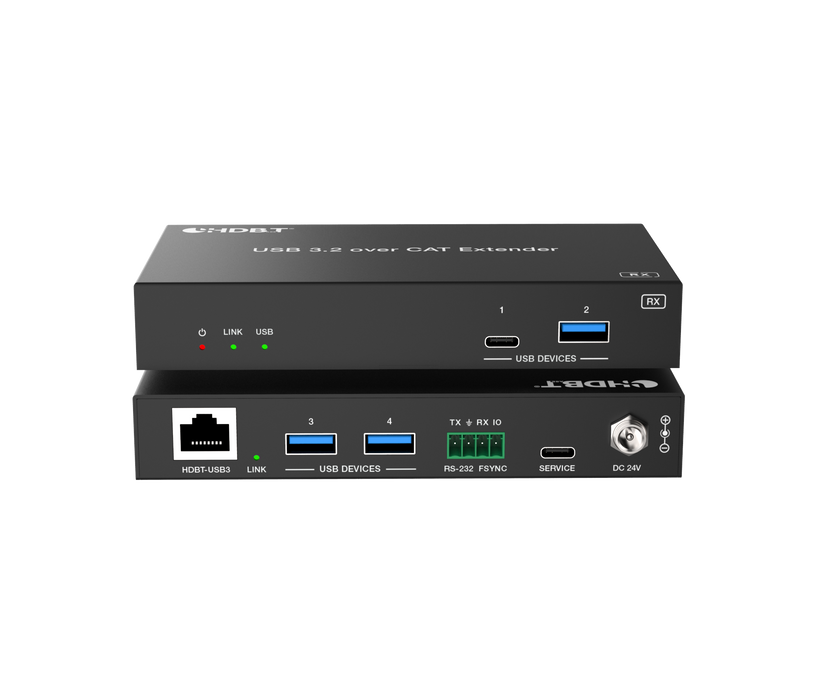

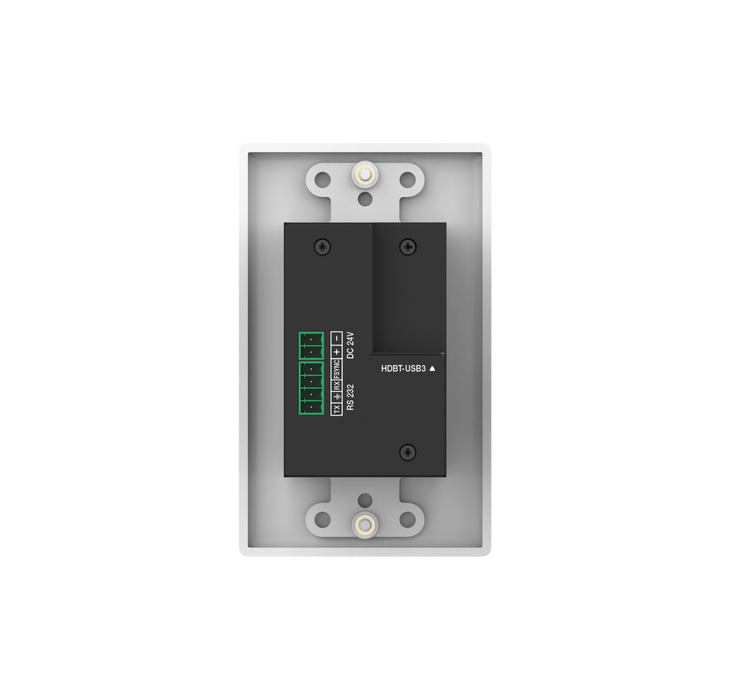

This USB 3.2 Gen 1 extender kit includes a wall plate transmitter and a receiver box, allowing USB signals to extend up to 100 meters over CAT6a cable. It supports fast data transfer speeds up to 5Gbps and works with older USB versions. The transmitter has USB-B and USB-C inputs with automatic or manual switching. The receiver offers multiple USB outputs with power support. Features include RS-232 pass-through, firmware updates, and plug-and-play setup without extra drivers. It also supports power delivery over the cable, so only one end needs an external power source.
The USB 3.2 Gen 1 Extender 100m package includes everything needed for a complete installation and reliable long-distance USB extension. It contains one wall-plate extender (transmitter) and one box extender (receiver) to facilitate USB signal transmission up to 100 meters. A 24V/3.75A power supply is provided to ensure stable operation. The package also includes a 2-pin and two 4-pin 3.5mm Phoenix connectors (male) for secure wiring connections. For mounting, two mounting ears and a set of machine screws (four KM3*4 and two 6#-32*3⁄4) are included, along with a top panel to complete the assembly. A detailed user manual guides through setup and usage, making installation straightforward for professional environments.
