Model : CAD-MXC22A
Introduction

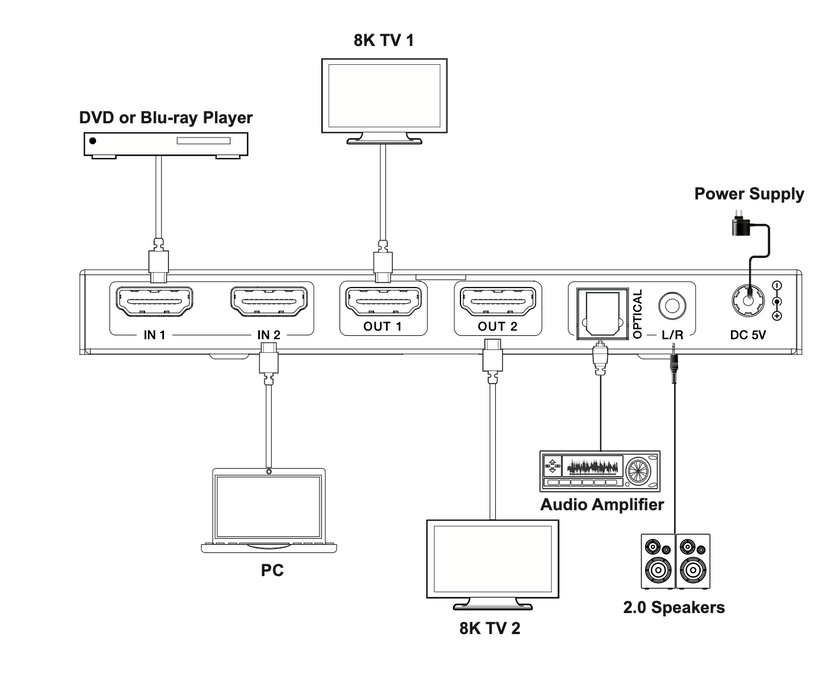

This 8K HDMI 2x2 Matrix Switcher can not only switch any of the two HDMI input signals, but also distribute it to two displays simultaneously. It supports video resolution up to 8K@60Hz 4:2:0. It supports advanced EDID manage- ment and audio de-embedding function (output through the optical and analog port). As able to be used either as a splitter or a switcher, this multi-functional product can be widely applied in scenarios of demonstration, video conference, multimedia teaching and other occasions requiring for big-screen demon- stration.
Features
☆ HDMI 2.1 and HDCP 2.3 compliant
☆ Support 40Gbps video bandwidth
☆ Support video resolution up to 8K@60Hz 4:2:0 10bit, 8K@30Hz 4:4:4
10bit, 4K@120Hz 4:4:4 10bit
☆ VRR, FVA, ALLM supported
☆ Support HDR, HDR10, HDR10+, Dolby Vision, HLG pass through
☆ Support HDMI audio formats: LPCM, Dolby Digital/Plus/EX, Dolby True HD,
DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD
☆ Built-in Equalizer, Retiming and Driver
☆ Advanced EDID management
☆ Support audio de-embedding function (output through the optical and
analog port)

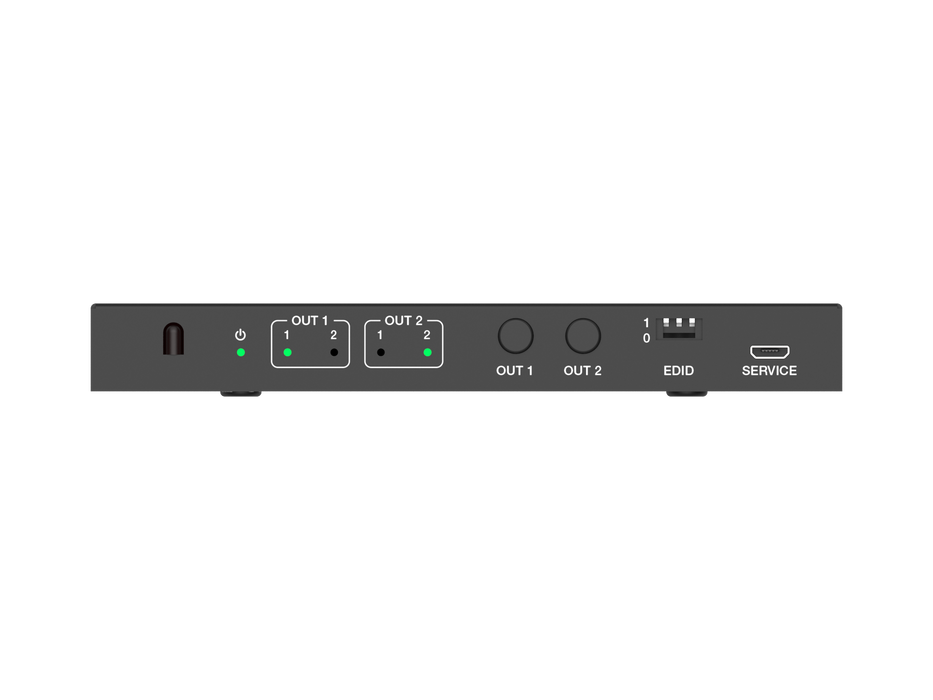

☆ Support IR remote control and front panel button switching
☆ Compact design for easy and flexible installation
Package Contents
① 1 × 8K HDMI 2x2 Matrix Switcher
② 1 × IR Remote
③ 1 × 5V/2A Multinational Power Supply
④ 1 × User Manual
