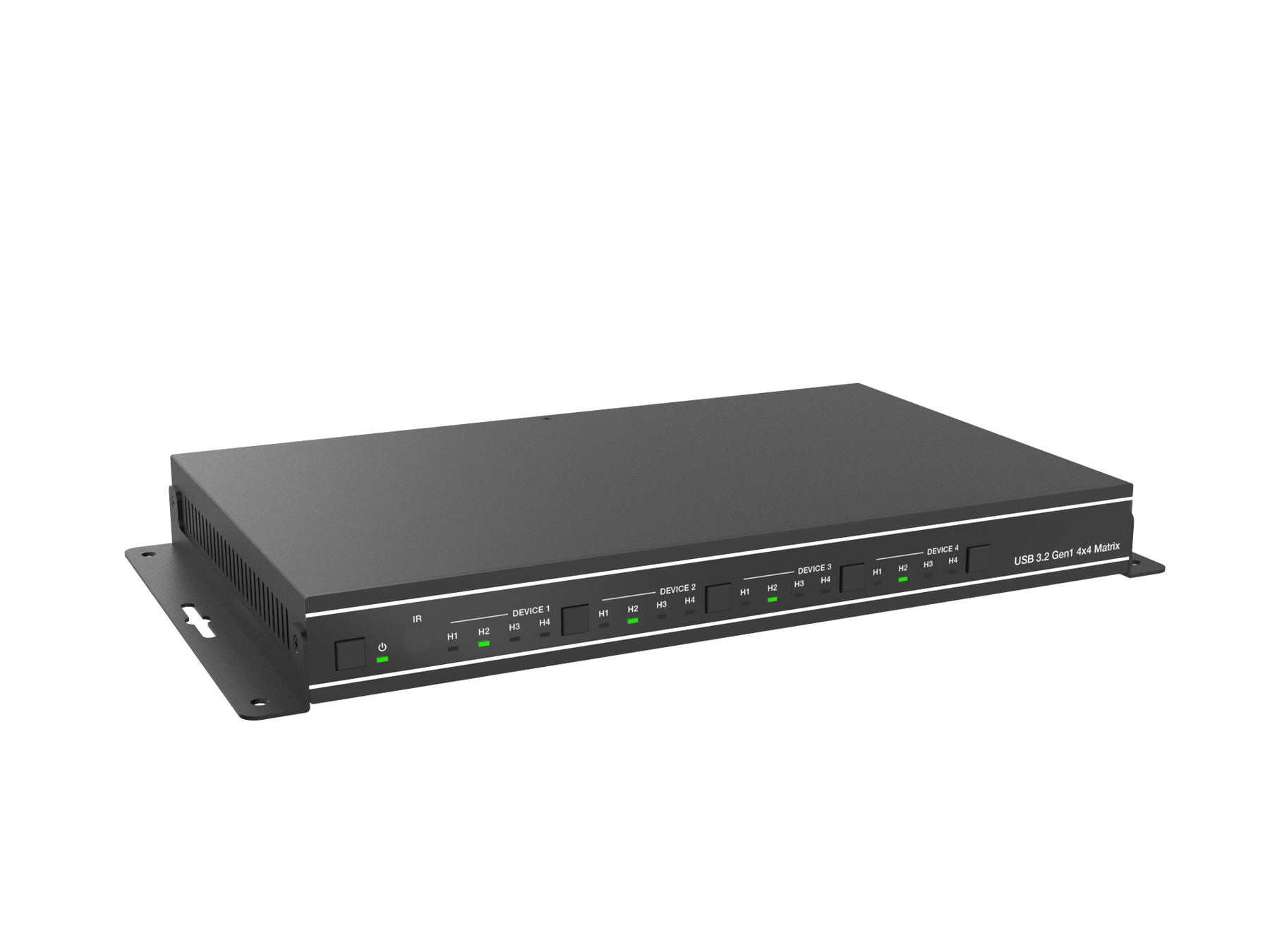

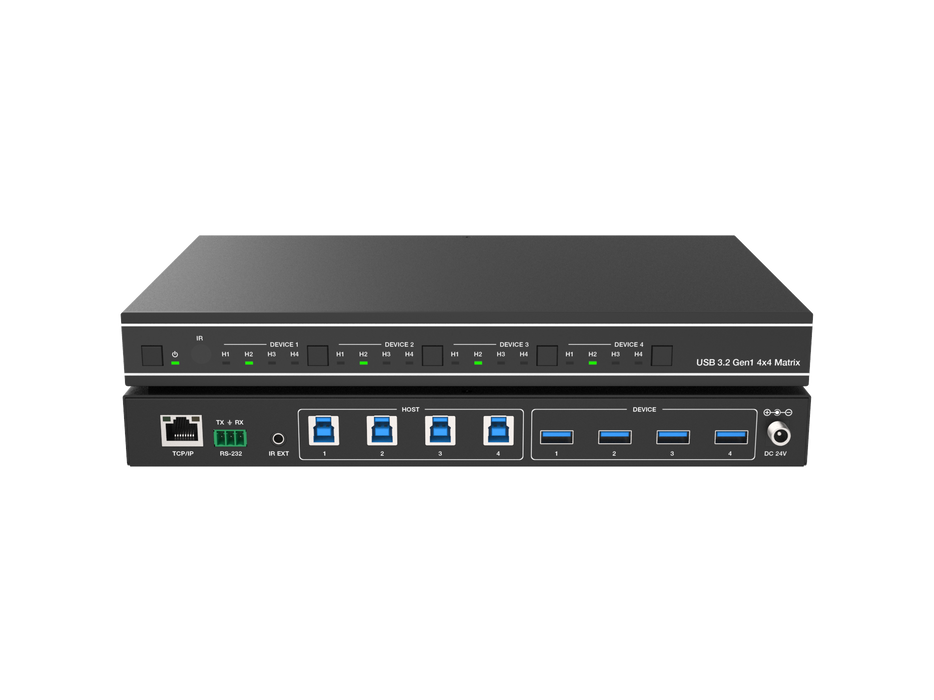

Model : CADMX44U3PRO
Download Product PDF
Introduction

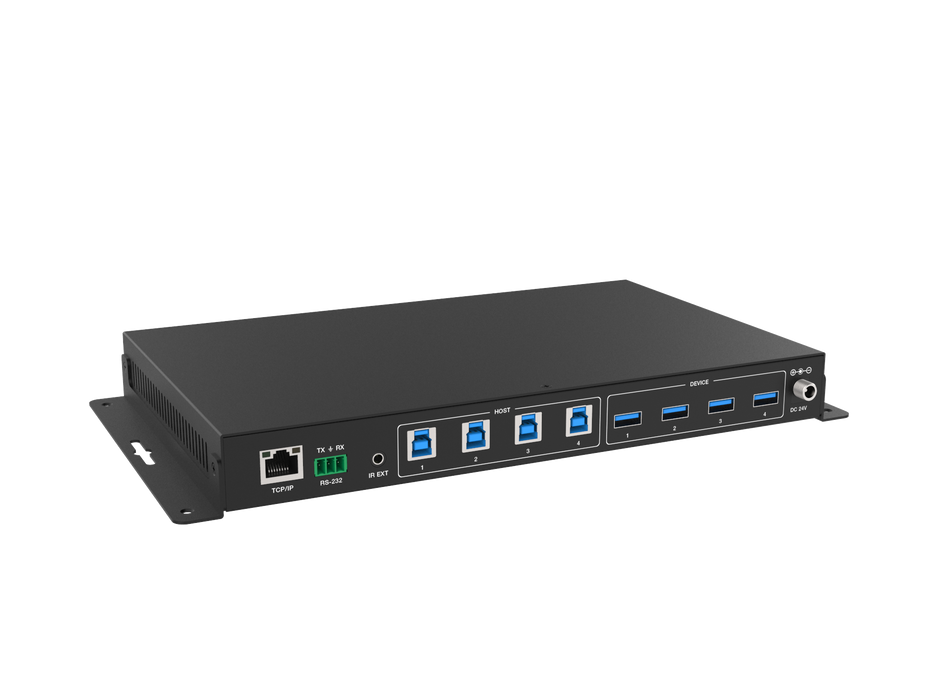

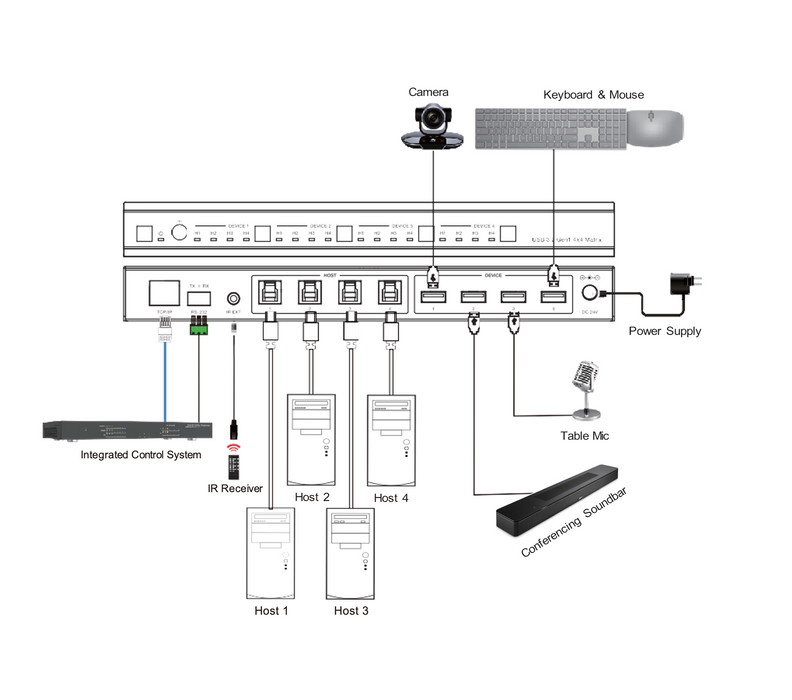

This is a 4x4 matrix allowing 4 USB devices to be shared between 4 host computers. It supports plug-and-play, and allows for a neat and tidy installation - the connecting cables are bundled to save the extra cost of purchasing USB cables. It is USB 3.2 Gen 1 compliant, which can support data transfer rate up to 5Gbps and backwards compatible with USB 2.0 and USB 1.1. It is perfect for high-bandwidth devices, such as USB docking stations or HD cameras. In addition, It also features TCP/IP port, RS-232 command port and select buttons, which can simplify desktop layout and allow the desired routes to be selected manually. With its compact and all-in-one design, you can create a space saving, convenient and productive work environment.
Features
☆ Enables 4 computers to share 4 USB 3.2 Gen 1 devices
☆ USB 3.2 Gen 1 compliant, supporting data transfer rates of up to 5Gbps
☆ LED indicates which host is active
☆ Over-current protection
☆ 5V/1.5A output for USB device ports
☆ USB device ports compliant with USB 3.2 Gen 1, USB 2.0 and USB 1.1
☆ Support USB Multiple Transaction Translator architecture
☆ Plug and Play – no drivers or external power adapter needed
☆ Multiplatform support – Windows, Linux and Mac

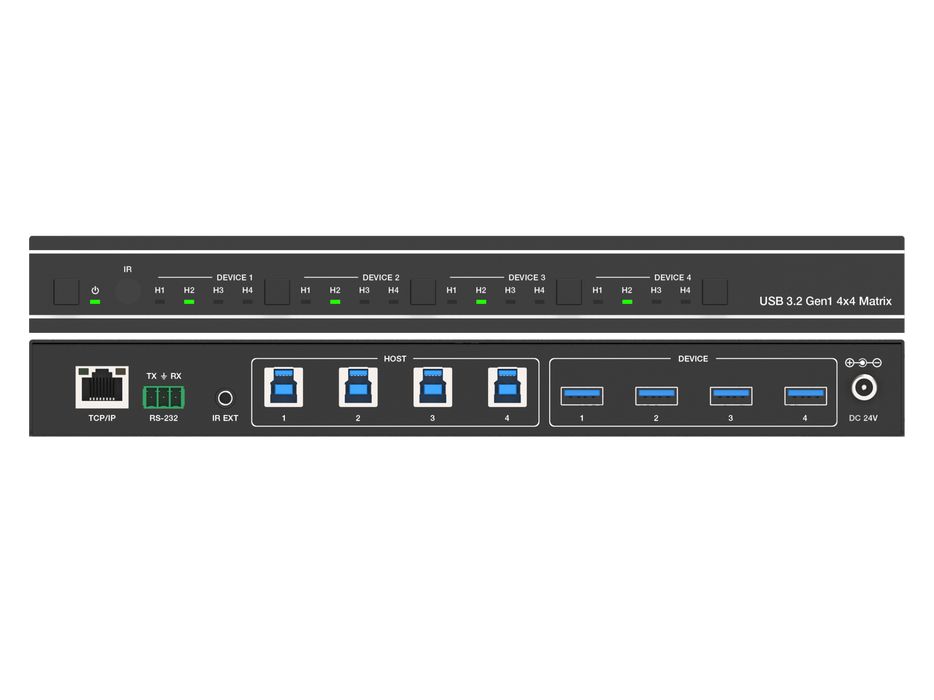

☆ Control via front panel buttons, IR remote, RS-232, and Web GUI
Package Contents
① 1 × 4x4 USB 3.2 Gen 1 Matrix
② 1 × 24V/2A Multinational Locking Power Supply
③ 1 × IR Remote
④ 1 × IR Wideband Receiver Cable (1.5m)
⑤ 4 × USB Cable (USB 3.0 Type A to Type B, 1.8m)
⑥ 1 × 3pin-3.81mm Phoenix Connector
⑦ 4 × Machine Screw (KM3*4)
⑧ 2 × Mounting Ear
⑨ 1 × User Manual
