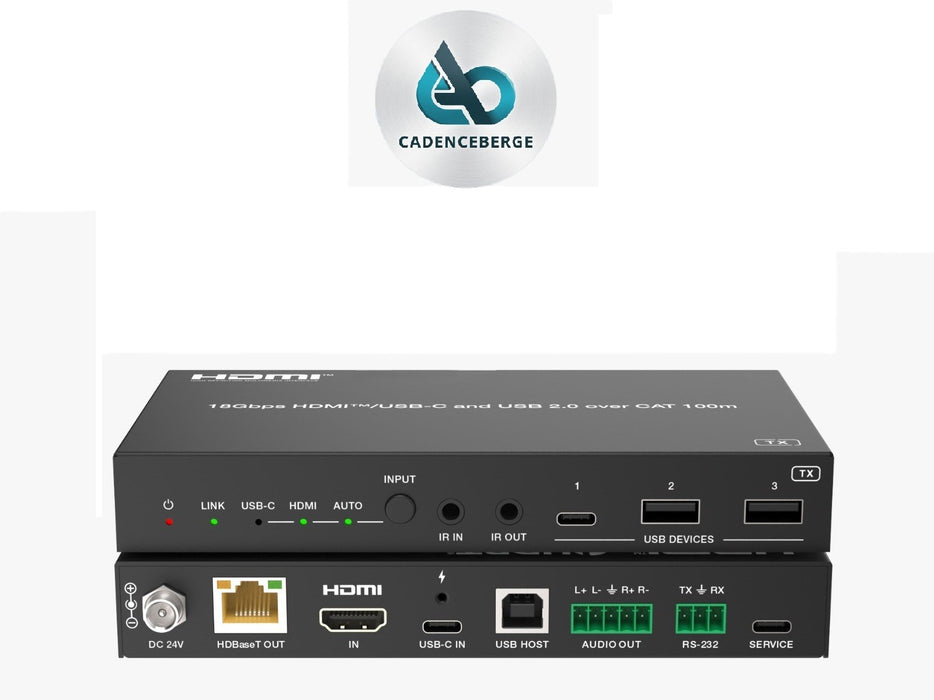

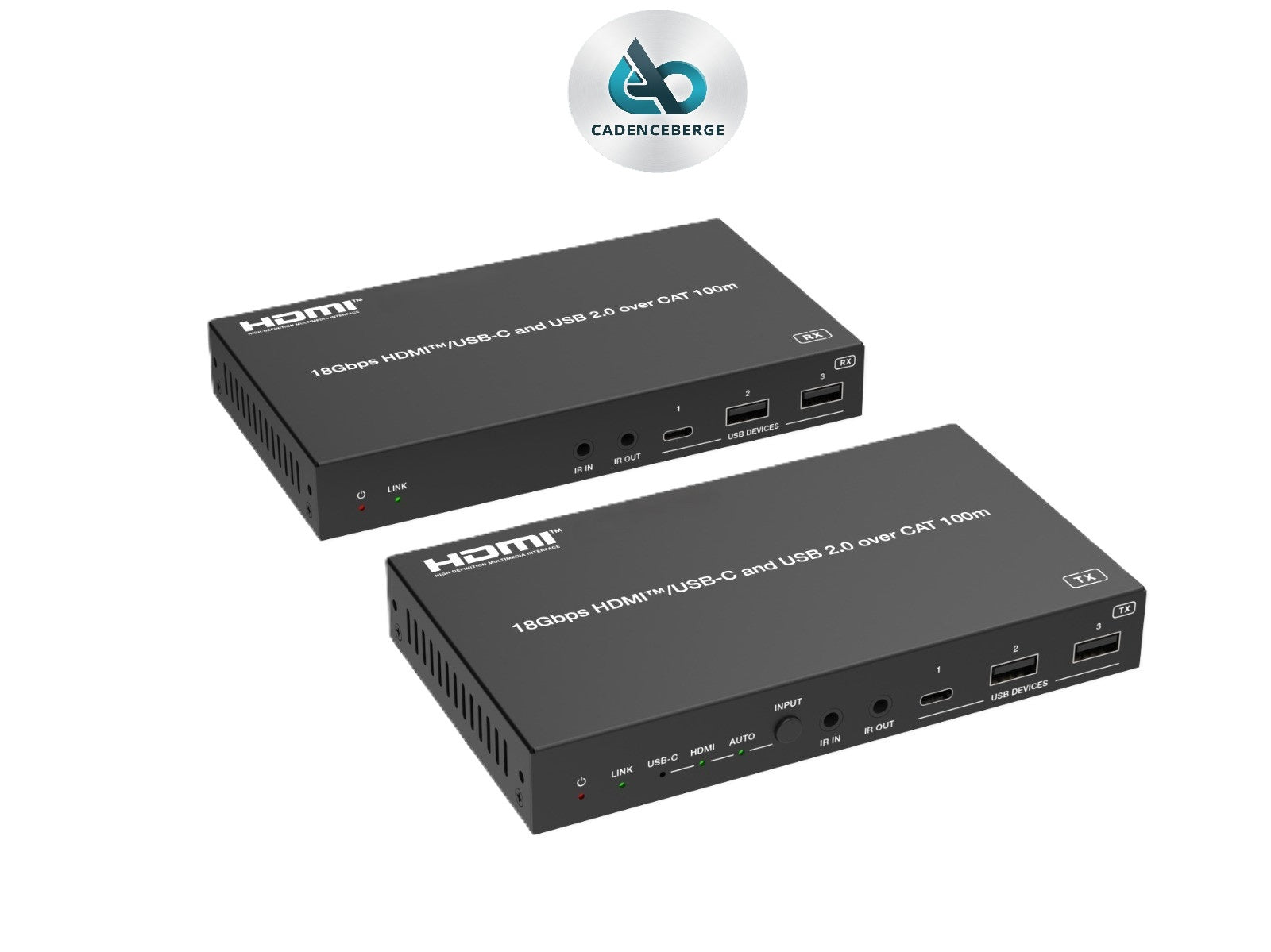

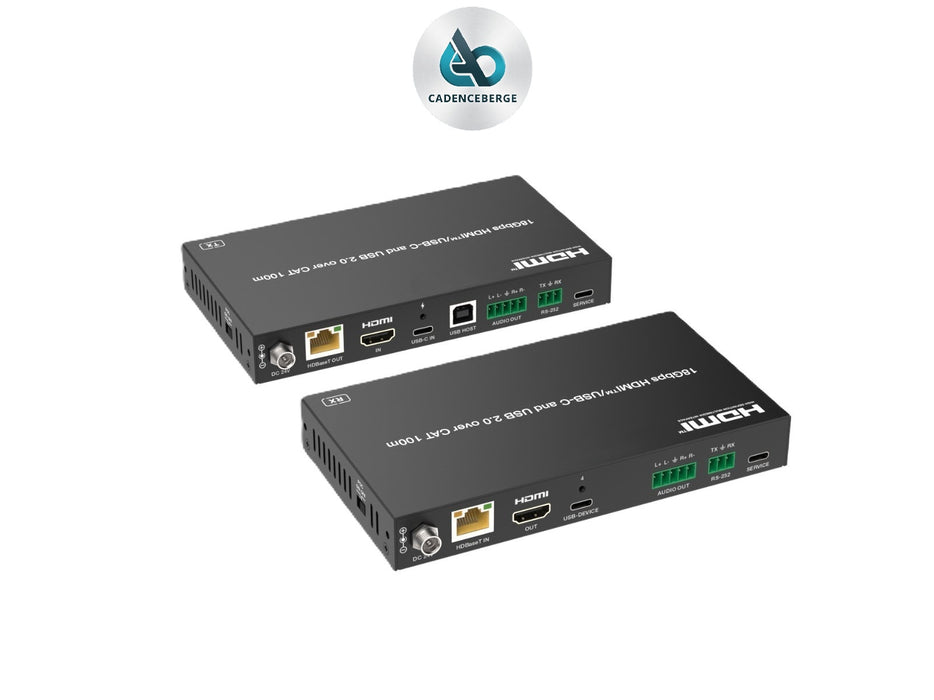

4K60 HDBaseT 2.0 Extender (100m) with HDMITM/USB-C Dual Inputs - CADHPEHB100HCU2K
High-Performance 4K60 HDBaseT 2.0 Extender Set with USB-C & Power Delivery
Streamline high-definition signal distribution with this professional-grade 4K60 HDBaseT 2.0 Extender Set. Designed to deliver uncompressed 4K@60Hz (4:4:4) HDMI and USB-C video signals alongside USB 2.0 data up to 328 feet (100 meters) over a single CAT6/6A cable, this kit is the ultimate solution for corporate conference rooms, higher education classrooms, and advanced residential AV systems.

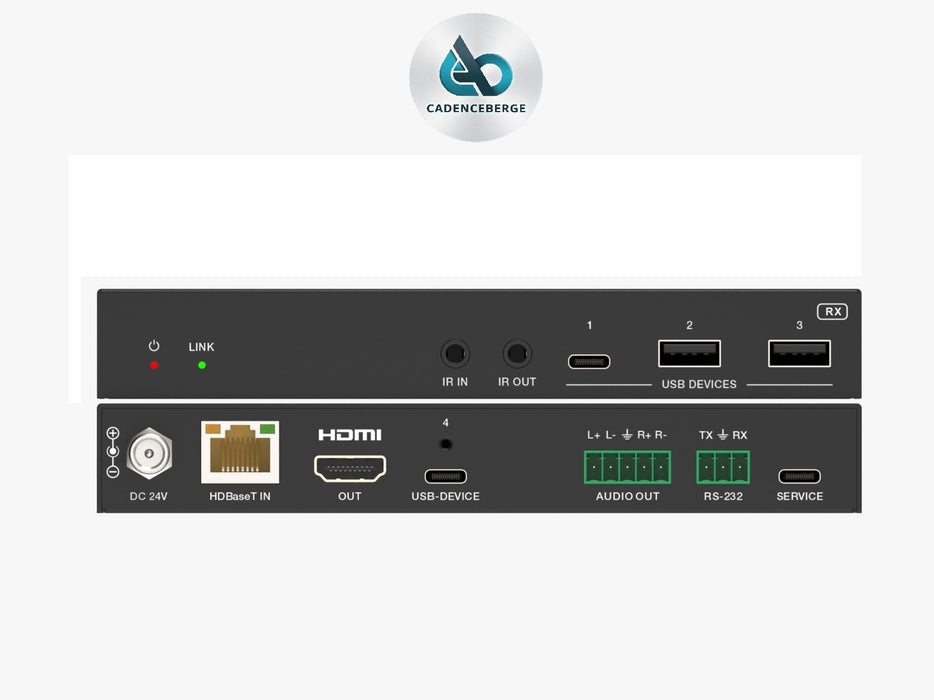

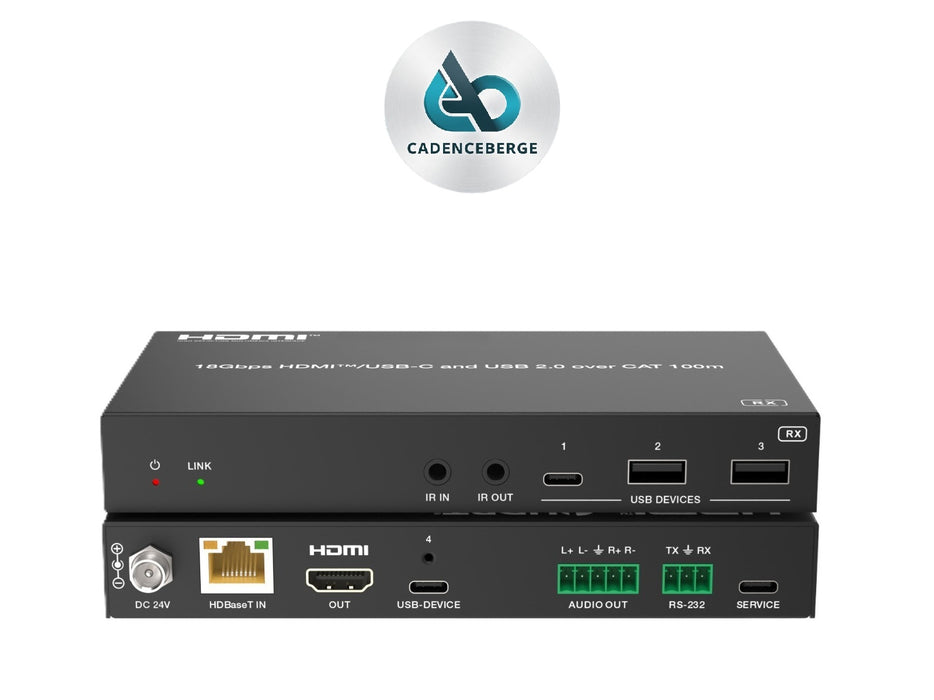

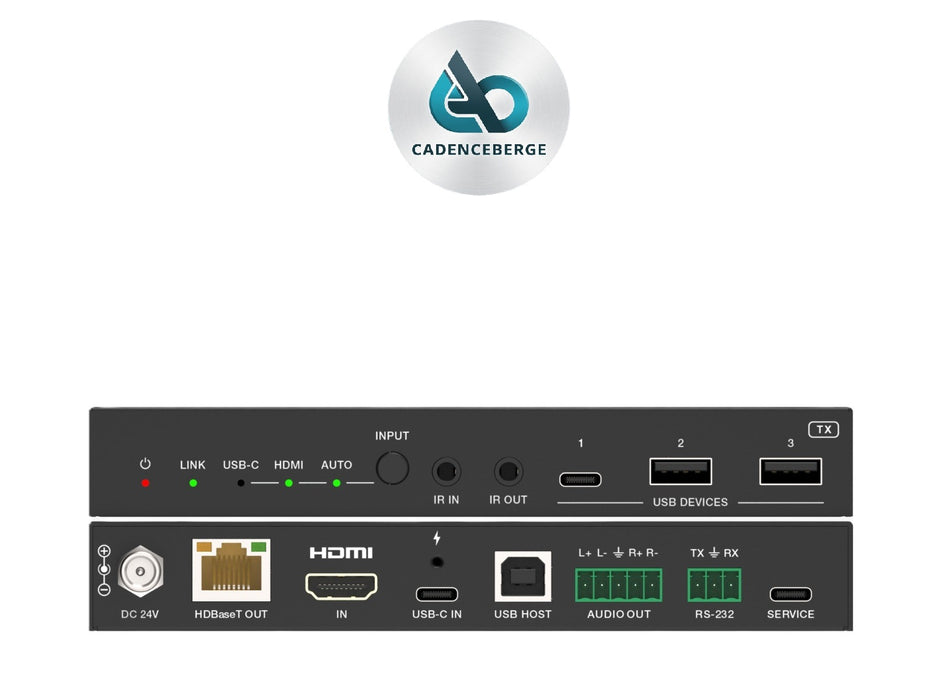

The transmitter features dual HDMI and USB-C inputs with intelligent auto/manual switching modes, allowing seamless presentation sharing. With DisplayPort Alt Mode support, the USB-C port provides video, ultra-fast USB 2.0 data transmission (up to 255Mbps), and up to 60W Power Delivery to charge laptops directly through the cable. The receiver expands control with 4× USB 2.0 device ports, dual audio de-embedding, bi-directional IR, RS-232 pass-through, and flexible bi-directional 24V PoC (Power over Cable).
Key Features
- Uncompromised 4K Extension: Delivers 4K60 4:4:4 HDMI 2.0b and DisplayPort 1.2a signals up to 328ft (100m) over a single CAT6/6A cable using HDBaseT 2.0 technology with 18Gbps bandwidth.
- Full-Featured USB-C Port: Supports DP-Alt Mode, high-speed USB 2.0 data, and up to 60W host device charging via local power supply.
- Smart Auto-Switching: Dual inputs (HDMI & USB-C) feature auto and manual switching modes, automatically detecting active signal and 5V source connections.
- Integrated USB Hub: Receiver features 4× USB 2.0 ports with up to 255Mbps bandwidth for KVM control, webcams, touchscreens, and peripheral routing.
- Advanced Audio Processing: Independent balanced and unbalanced analog audio de-embedding on both transmitter and receiver units.
- Complete Control Pass-Through: Supports bi-directional IR (with learning), RS-232 pass-through, CEC control, display ON/OFF command routing, and EDID management.
- Bi-Directional 24V PoC: Flexible power routing allows either unit to power the other over the single CAT cable (Note: 60W USB-C charging requires direct local power to the transmitter).
What's in the Box
- 1× 4K60 HDBaseT 2.0 Transmitter Unit
- 1× 4K60 HDBaseT 2.0 Receiver Unit
- 2× 3-Pin 3.5mm Phoenix Connectors (Male)
- 2× 5-Pin 3.5mm Phoenix Connectors (Male)
- 4× Mounting Ears & 8× Machine Screws
- 1× IR Blaster Cable (1.5m)
- 1× IR Receiver Cable (1.5m)
- 1× 24V/5A Desktop Power Supply
- 1× User Manual
