18Gbps HDMITM Extender (70m) with KVM- CADHDCEDB70SKP

18Gbps HDMITM Extender (70m) with KVM

PRODUCT MANUAL PDF

1. Overview

   The HDMI HD signal can be extended with this 18Gbps HDMI Extender up to
   to 230 feet/70 meters using a single CAT6/6a cable, which has zero latency,
   transmission over a long distance without compression between the transmitter and
   receiver. Up to 4K2K@60Hz video resolution is available. The Extender is compatible with
   KVM signal pass-through, which enables remote control of the display's source device
   apparatus. The EDID copy pass-through function between the source and
   device as well as a display device. The POC function is supported.
   This extender is widely applicable in TVs and multi-media conference rooms.
   large-screen displays and instruction.

   • Features

   •
   Compliant with HDCP 2.2
   ■ 18Gbps video bandwidth is supported.
   Up to 4K2K@60Hz RGB/YCBCR 4:4:4 video resolution is supported, as
    HDMI 2.0b specifies
   Up to 230 feet/70 meters can be added to the transmission distance using a
    CAT6/6a cable alone
   Support for Dolby Vision, HLG, HDR, HDR10, and HDR10+
   LPCM 2.0/2.1/5.1/6.1/7.1, Dolby Digital, Dolby TrueHD, and other audio formats
    Dolby Digital Plus (DD+)

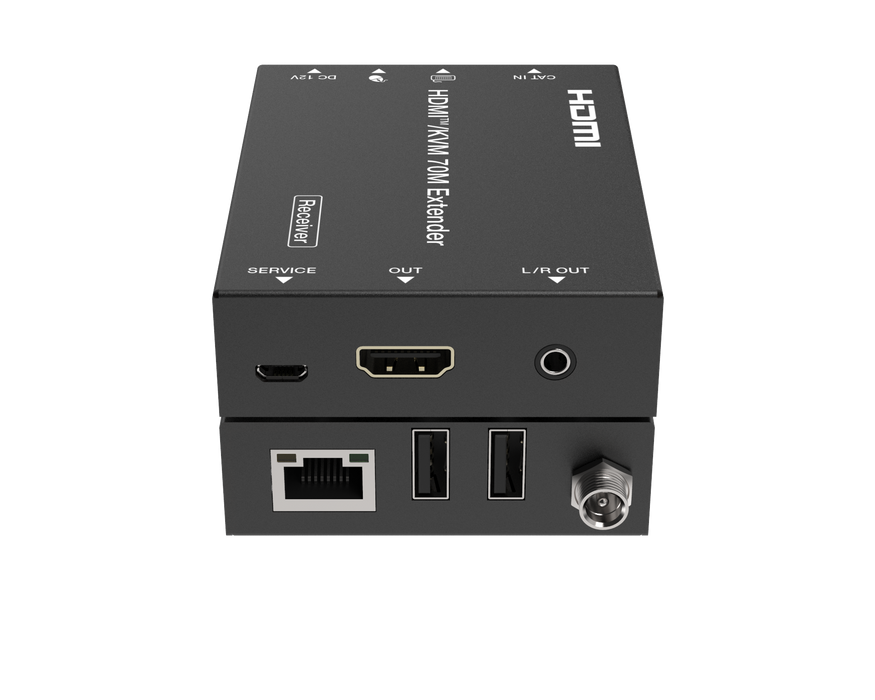

   ■ 3.5mm analog audio de-embedding is supported; audio is output via the
    The receiver's L/R OUT port
   The function of EDID copy pass-through between the source device and
    display apparatus
   ■ Encourage two-way POC (Power over Cable) functionality
   ■ Compliant with USB1.1, supporting USB KVM pass-through
    Keyboard and mouse remote control
   ■ Small size for simple and adaptable installation


   3. Contents of the Package

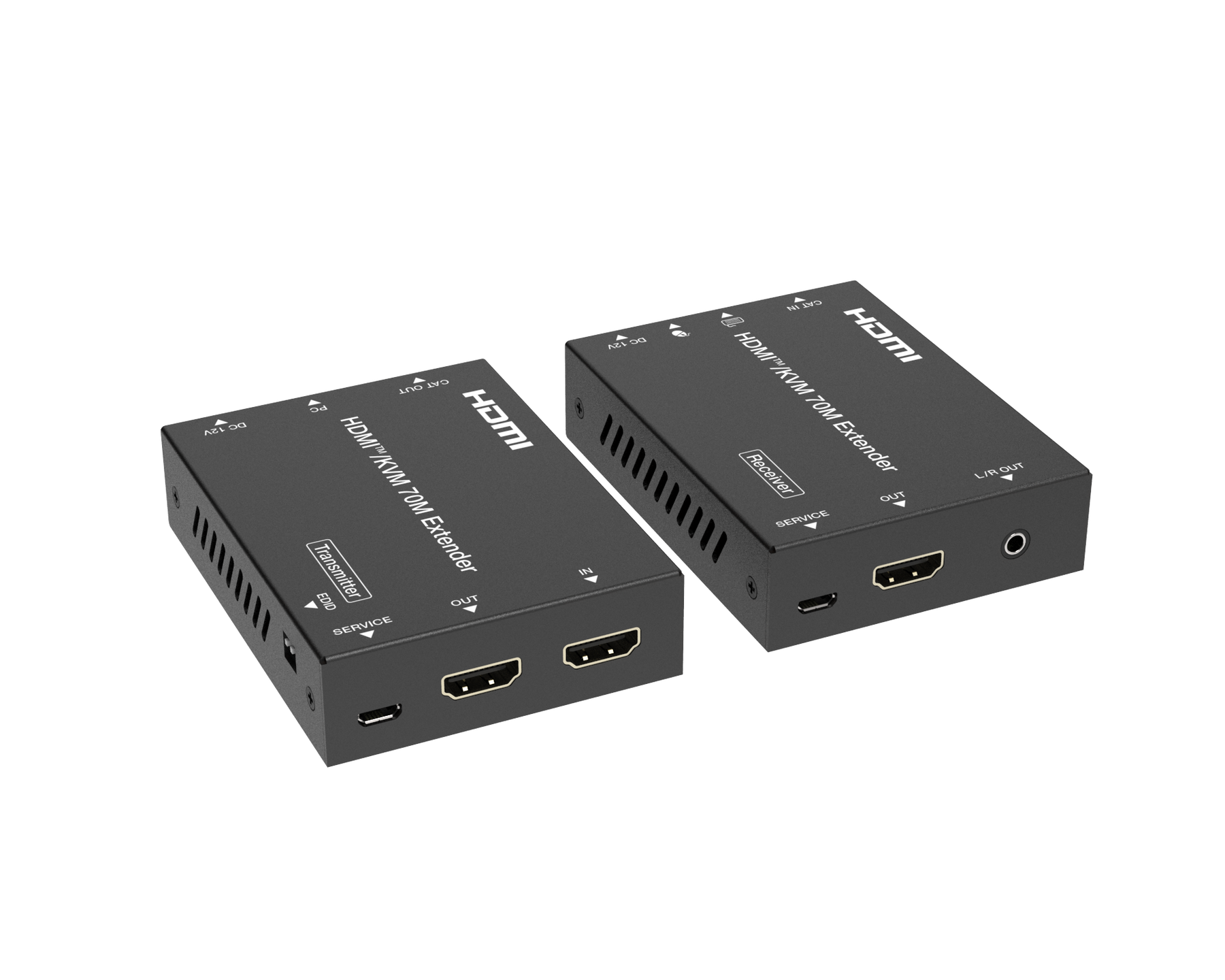

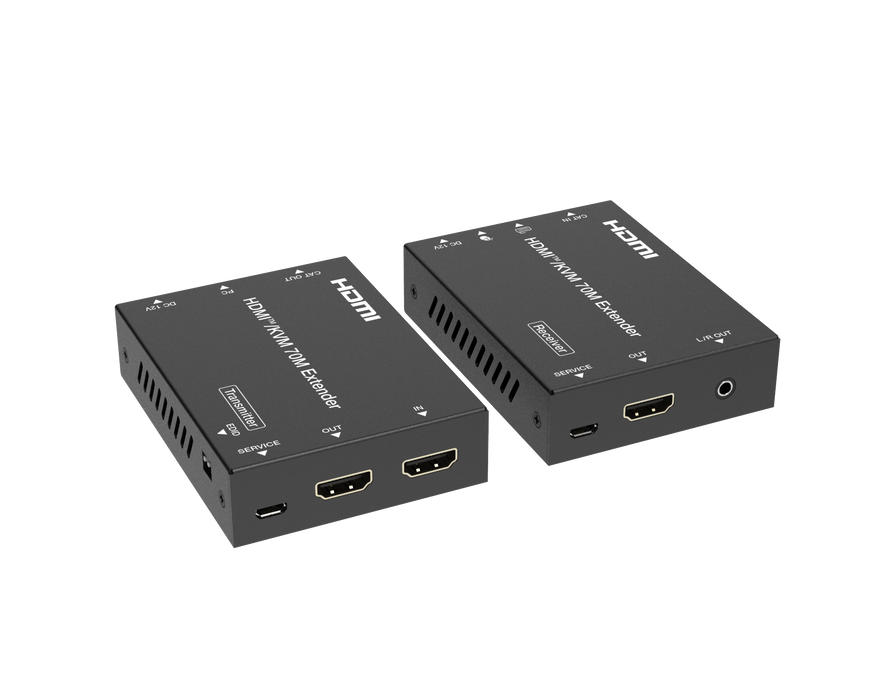

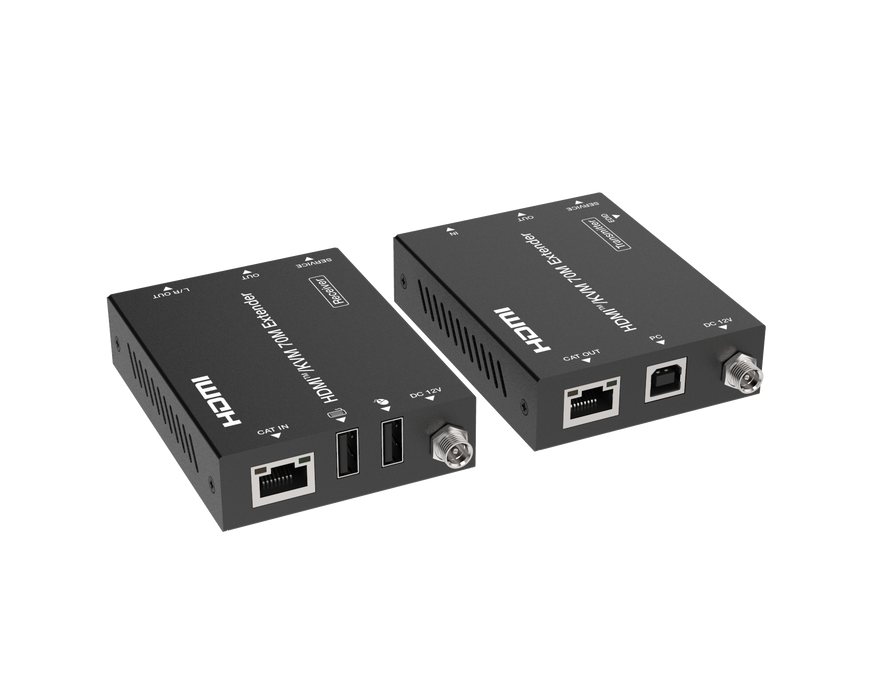

   ① 1 x 18Gbps HDMI Extender (Transmitter)
   ② 1 x 18 Gbps HDMI Receiver (Extender)
   ③ One 1.5-meter USB-A to USB-B cable
   ④ 4× Mounting Ears
   ⑤ 8× Machine Screws (KM3*4)
   ⑥ 1× 12V/1A Adapter for Locking Power
   ⑦ 1× User Guide
