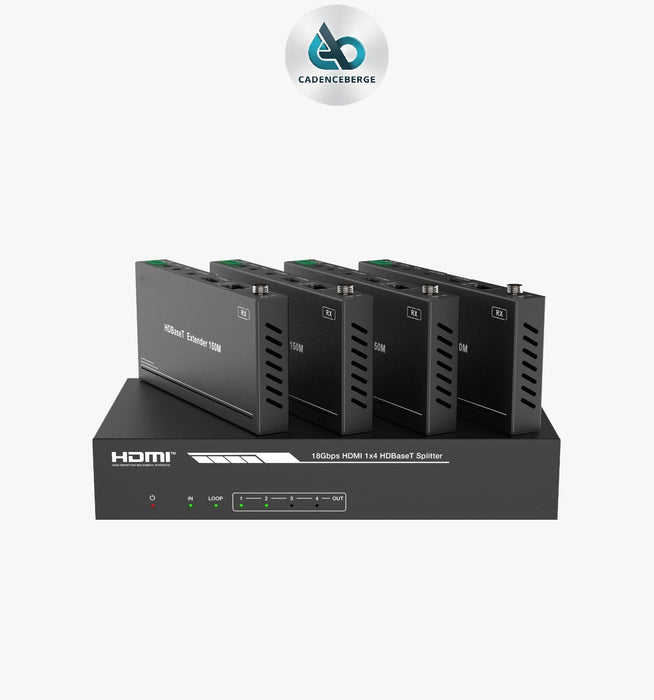

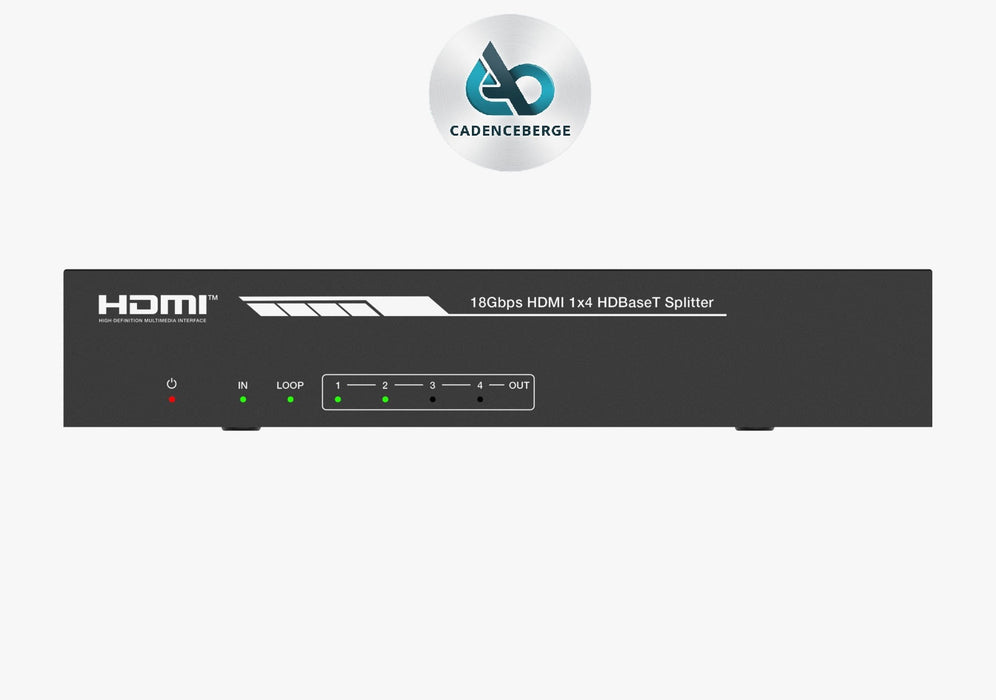

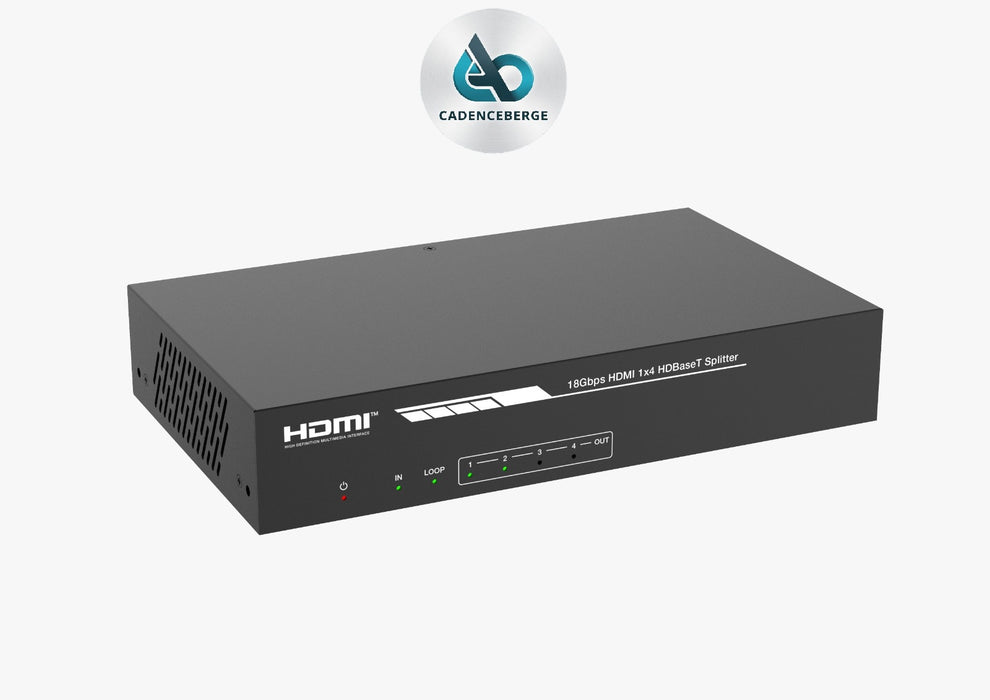

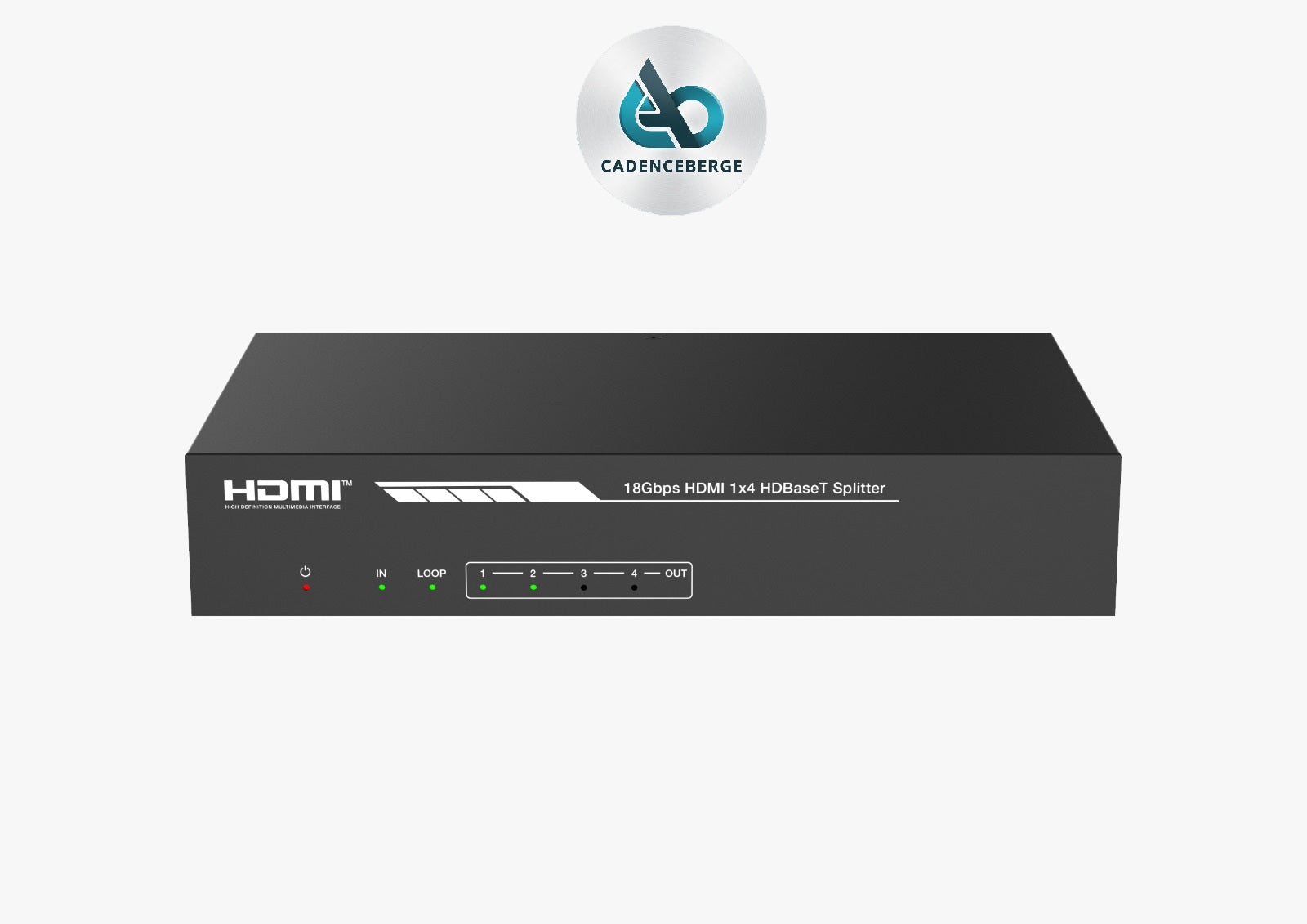

18Gbps HDMI 1×4 HDBaseT Splitter - MODEL CAD-HCSPB14H150

MODEL NO: CAD-HCSPB14H150

1. Introduction

This 18Gbps HDMI 1x4 HDBaseT Splitter can distribute 1 source signal to any 4 display devices. Support video resolution up to 4K2K@60Hz 4:4:4. It is designed with 1 HDMI loop output and 4 HDBaseT outputs. The HDMI signal transmission distance can be extended up to 120 meters at the resolution of 4K2K@60Hz, or 150 meters at 1080P@60Hz via a single CAT6/6a/7 cable. The product supports IR and RS-232 signal pass-through, audio extract function and advanced EDID management.

2. Features

• HDMI 2.0b, HDCP 2.2 and HDCP 1.x compliant
• Support 18Gbps video bandwidth
• Support video resolution up to 4K2K@60Hz 4:4:4
• Support HDR, HDR10+, HLG and Dolby vision
• Support up to 7.1CH HD audio pass-through
• Support digital and analog audio de-embedded output
• Extend the signal transmission distance up to 120 meters at the resolution of 4K2K@60Hz, 150 meters at 1080P@60Hz via a single CAT6/6a/7 cable

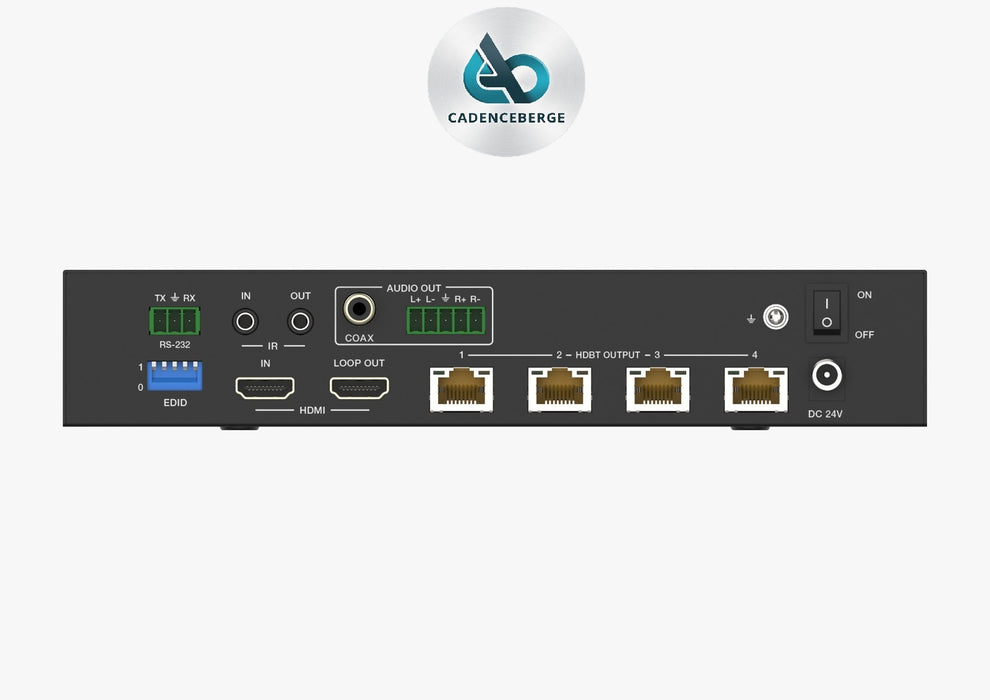

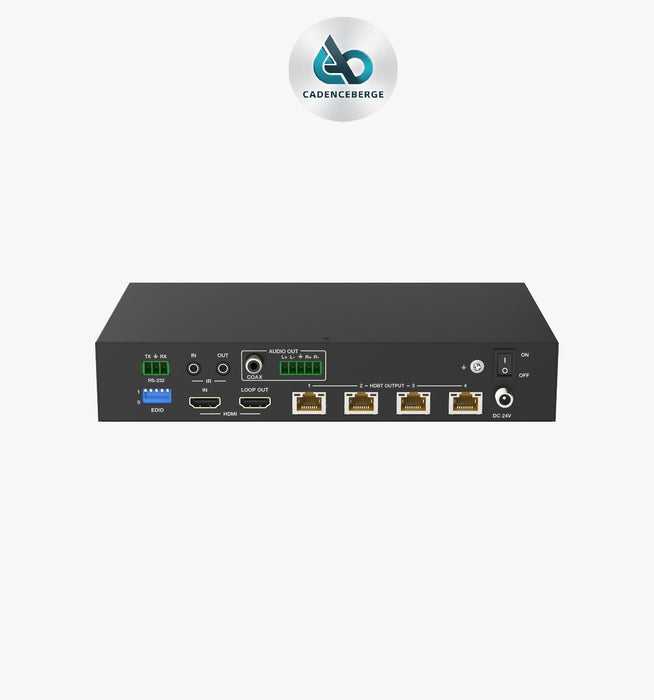

• Support 1 HDMI input, 1 HDMI loop output and 4 HDBaseT outputs.
• IR, RS-232 routed to HDBaseT output
• Advanced EDID management
• Support one-way POC function (only from transmitter to receiver)
• Compact design for easy and flexible installation

3. Package Contents

1. 1 × 18Gbps HDMI 1×4 HDBaseT Splitter
2. 4 × HDBaseT Receiver
3. 5 × IR Blaster Cable (1.5 meters)
4. 5 × 20K~60KHz IR Receiver Cable (1.5 meters)
5. 5 × 3-pin Phoenix Connector
6. 1 × 5-pin Phoenix Connector
7. 10 × Mounting Ear
8. 1 × 24V/2.7A DC Locking Power Adapter
9. 1 × User Manual
