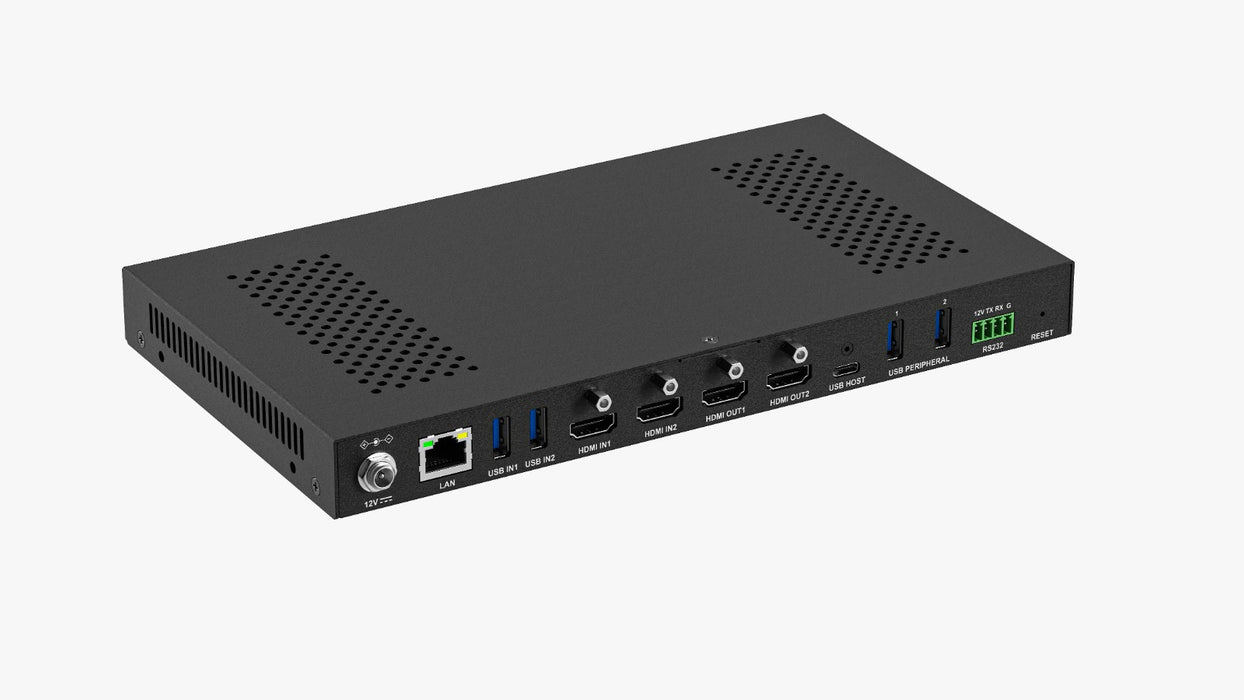

Model No: CAD-SW100
Product PDF
The CAD-SW100 is a multi-camera switcher that combines up to four local video sources into HDMI and USB output streams. It supports two HDMI inputs and two USB cameras (UVC/UAC) up to 4K@30Hz, and offers flexible multi-view layout options such as quad view, picture-in-picture, and more.
Simultaneous video output is available via HDMI and USB (UVC), with the USB HOST port mirroring the HDMI OUT2, while HDMI OUT1 delivers a dedicated full-screen output. Built-in analog audio input and output, along with a configurable audio matrix, allow flexible audio routing and mixing.
The device also supports up to four NDI inputs and one mirrored NDI output (video only), enabling smooth integration into IP-based video workflows.
Featuring seamless switching, an OLED screen and control buttons on the front panel, and versatile control via LAN (web UI & Telnet API) or RS-232, the switcher delivers reliable performance and streamlined operation. It is ideal for PC-based video recording, conferencing, lecture capture, and more.
Features
-Supports four local video inputs up to 4k@30Hz: two USB (UVC/UAC) and two HDMI (camera and non-camera input sources supported)

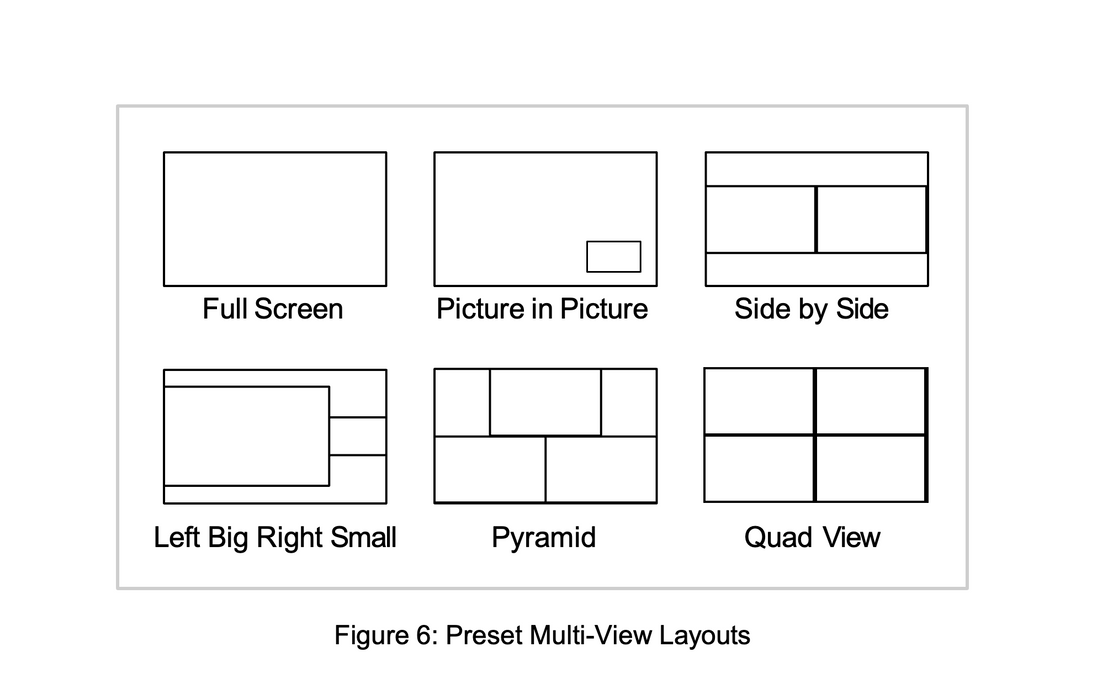

-Offers multiple multi-view layouts, including quad view, picture-in-picture, and more

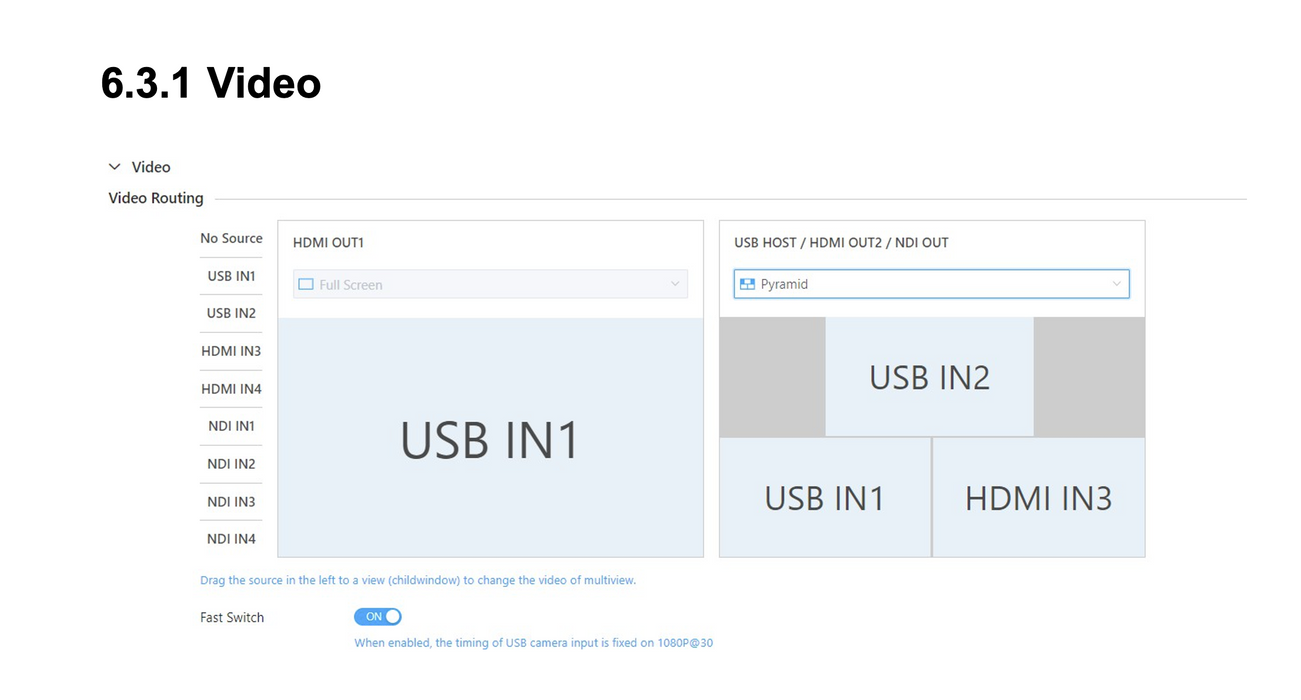

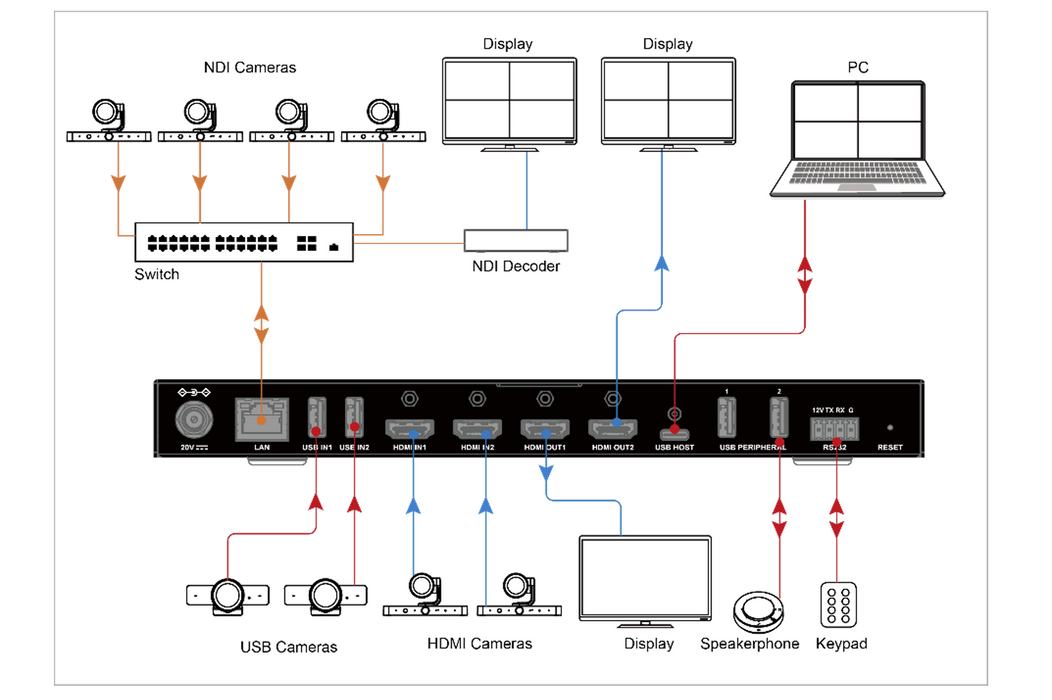

-Provides three video outputs: HDMI OUT1, HDMI OUT2 and USB HOST (UVC/UAC), with USB HOST mirroring HDMI OUT2
-NDI support:
-Up to four NDI inputs (video only, up to 4K@30Hz)
-One NDI output (video only), mirroring USB HOST and HDMI OUT2
-Seamless, low-latency switching among video sources
-Two USB peripheral ports connect to the USB HOST through the built-in USB hub

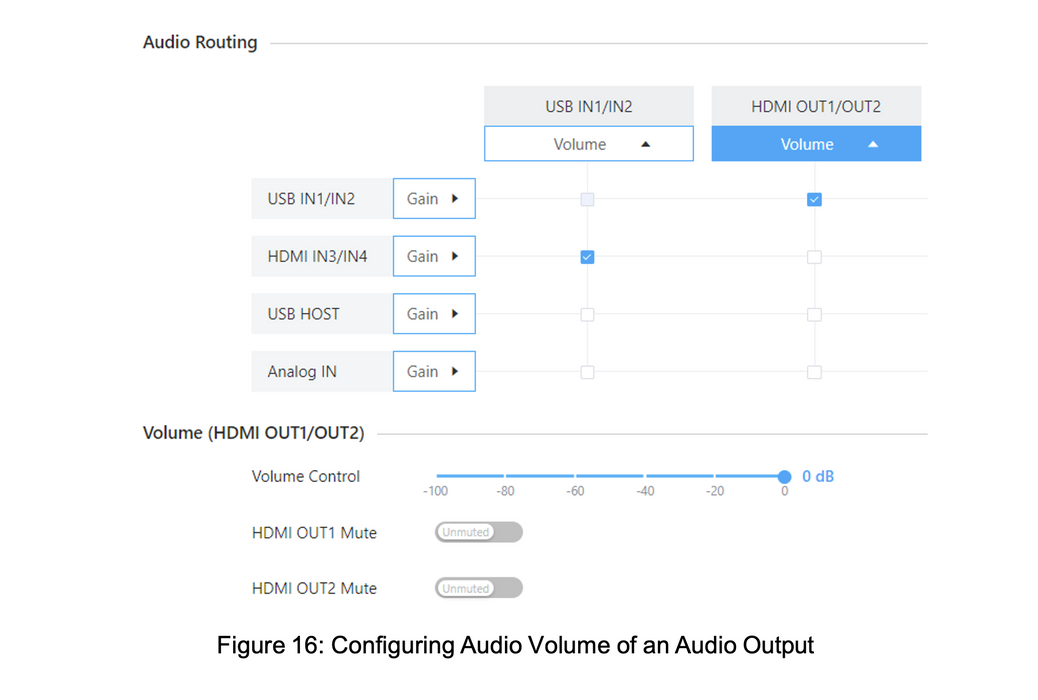

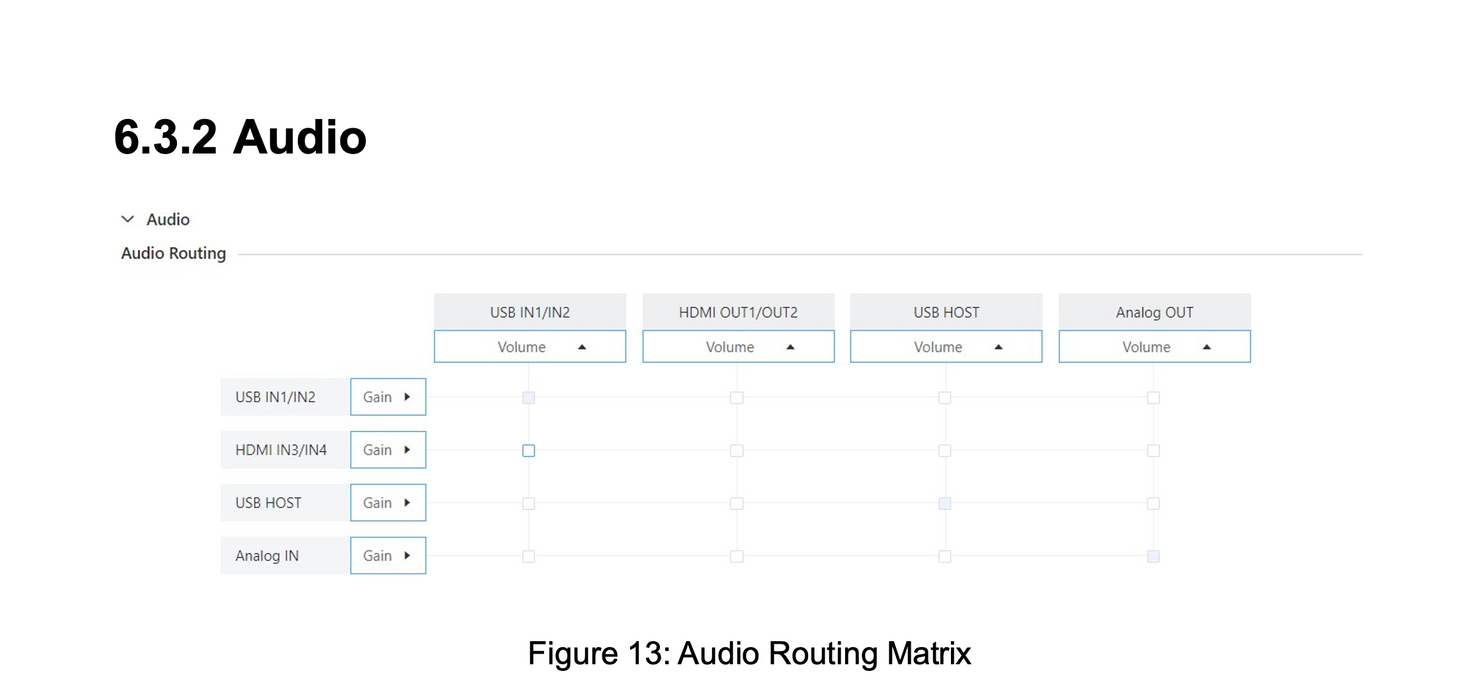

-Built-in audio matrix for flexible audio routing and mixing, with volume and mute control
- One analog audio input and one analog audio output for easy integration with third-party audio equipment
- Front panel OLED screen displays IP address and firmware version for easy setup and status monitoring

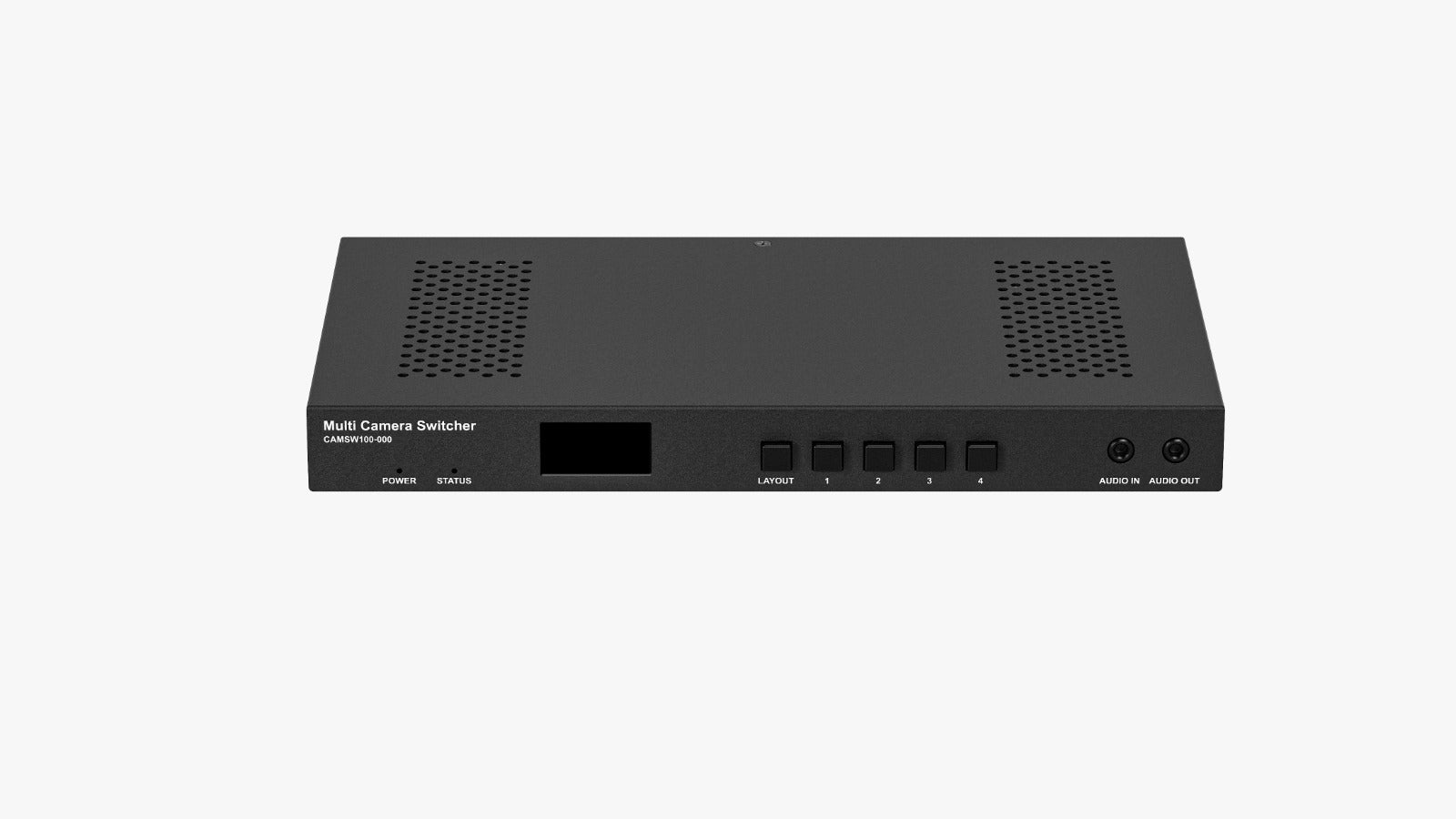

-Physical buttons on the front panel allow quick source switching and layout changes (for HDMI OUT2)
-Flexible control options, including LAN (web UI & Telnet API) and RS232 serial control
-Compatible with Windows and macOS systems
Package Contents
-1 x Switcher Unit
-1 x 3.5mm 4-Pin Phoenix Male Connector
- 1 x 20V DC 3A Power Adapter
- 1 x AC Power Cord (US Plug)
-4 x Mounting Brackets
