4K60 HDMI™ over IP Extender with USB 2.0 via CAT Cable Cadenceberge Model CADE6600CHDC
Model : CADE6600CHDC
1. Introduction
The HDMI™ over IP Extender adopts standard JPEG2000 encoding and decoding.
It can distribute one UHD signal to one UHD display device or multiple UHD display
devices over standard 1G network switch, and transmission distance is up to 100m
/328ft between encoder and decoder over a CAT5e/6 cable. It offers configurable
high quality video, and resolution is up to 4K@60Hz 4:4:4; It also supports USB 2.0
transmission and bi-directional IR signal transmission.

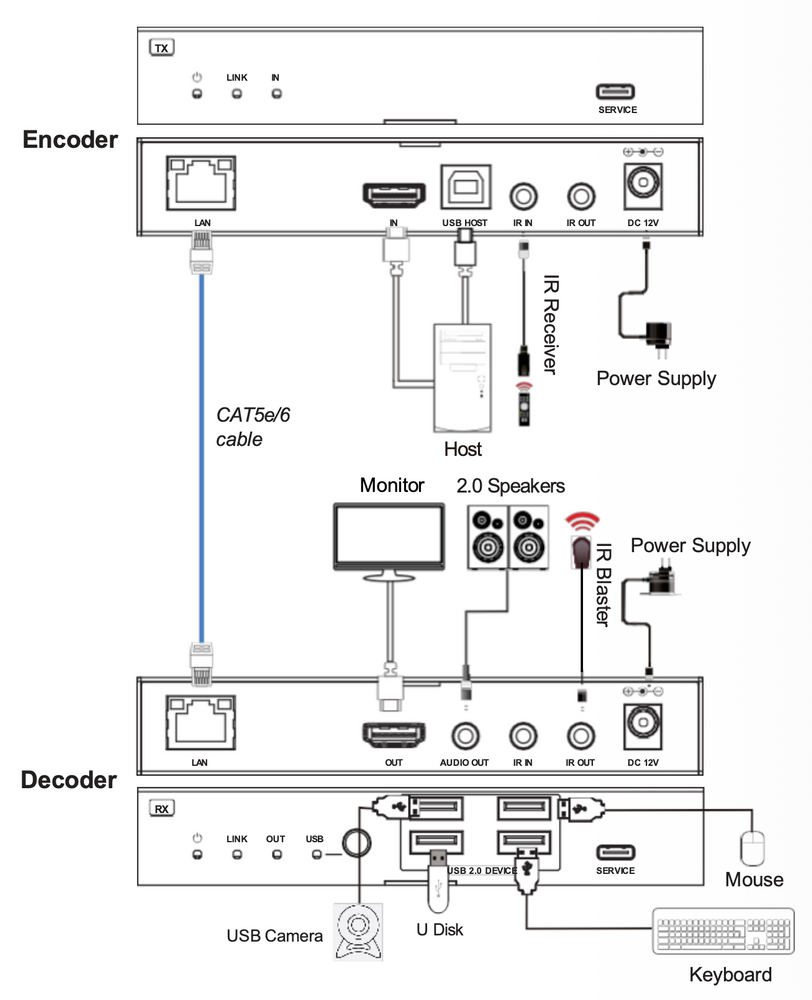

HDMI™ over IP Extender includes two units: Encoder and Decoder. Encoder is
responsible for obtaining HDMI™ signal for encoding, and then transmitting over a
CAT5e/6 cable. Decoder is responsible for signal decoding and outputting HDMI™
signal to UHD displays. The product offers the most convenient solution for HDMI™
extension over a CAT5e/6 cable and is the perfect solution for any application.
2. Features

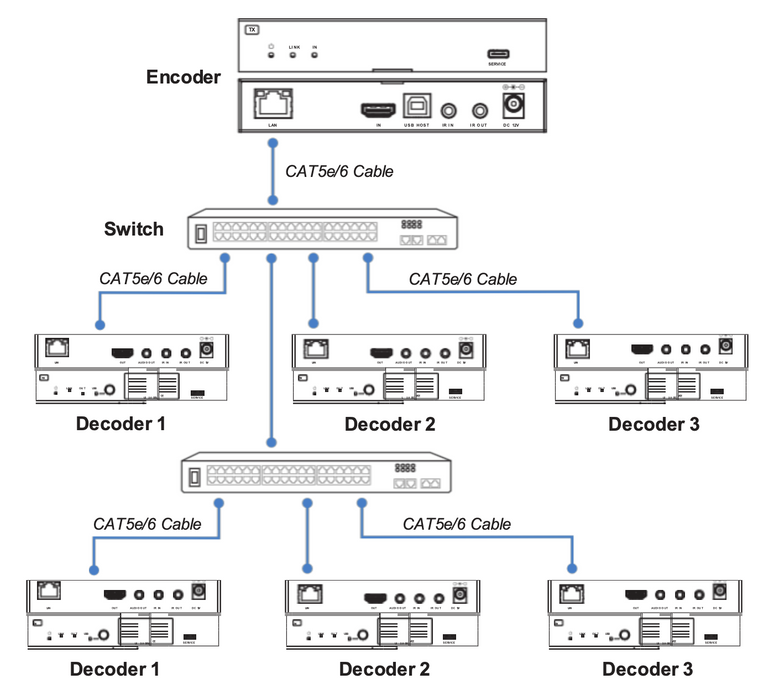

☆ One to one, one to multiple over standard 1G network switch
☆ Compliant with HDCP 2.3/2.2/1.x
☆ Video bandwidth is up to 18Gbps
☆ Video resolution is up to 4K2K@50/60Hz 4:4:4, as specified in HDMI™ 2.0b
☆ HDR10, HDR10+, Dolby Vision, HLG pass-through
☆ Support audio formats: LPCM 7.1CH, Dolby 5.1, Dolby True HD, Dolby Atmos,
DTS-HD Master, DTS:X Audio
☆ Transmission distance is up to 100m/328ft over a CAT5e/6 cable
☆ Support analog audio de-embedding on Decoder
☆ Bi-directional IR and USB 2.0 transmission
☆ Compact design for easy and flexible installation
1 / 93. Package Contents
For Encoder and Decoder:
① 1× 4K60 HDMI™ over IP CAT Extender (Encoder)
② 1× 4K60 HDMI™ over IP CAT Extender (Decoder)
③ 1× IR Blaster Cable (1.5m)
④ 1× IR Wideband Receiver Cable (1.5m)
⑤ 1× USB Cable (USB type A to type B, 1.5m)
⑥ 2× 12V/1A Locking Power Supply
⑦ 4× Mounting Ear
⑧ 8× Machine Screw (KM3*6)
⑨ 1× User Manual
For Encoder Only:
① 1× 4K60 HDMI™ over IP CAT Extender (Encoder)
② 1× IR Blaster Cable (1.5m)
③ 1× IR Wideband Receiver Cable (1.5m)
④ 1× USB Cable (USB type A to type B, 1.5m)
⑤ 1× 12V/1A Locking Power Supply
⑥ 2× Mounting Ear
⑦ 4× Machine Screw (KM3*6)
⑧ 1× User Manual
For Decoder Only:
① 1× 4K60 HDMI™ over IP CAT Extender (Decoder)
② 1× IR Blaster Cable (1.5m)
③ 1× IR Wideband Receiver Cable (1.5m)
④ 1× 12V/1A Locking Power Supply
⑤ 2× Mounting Ear
⑥ 4× Machine Screw (KM3*6)
⑦ 1× User Manual
