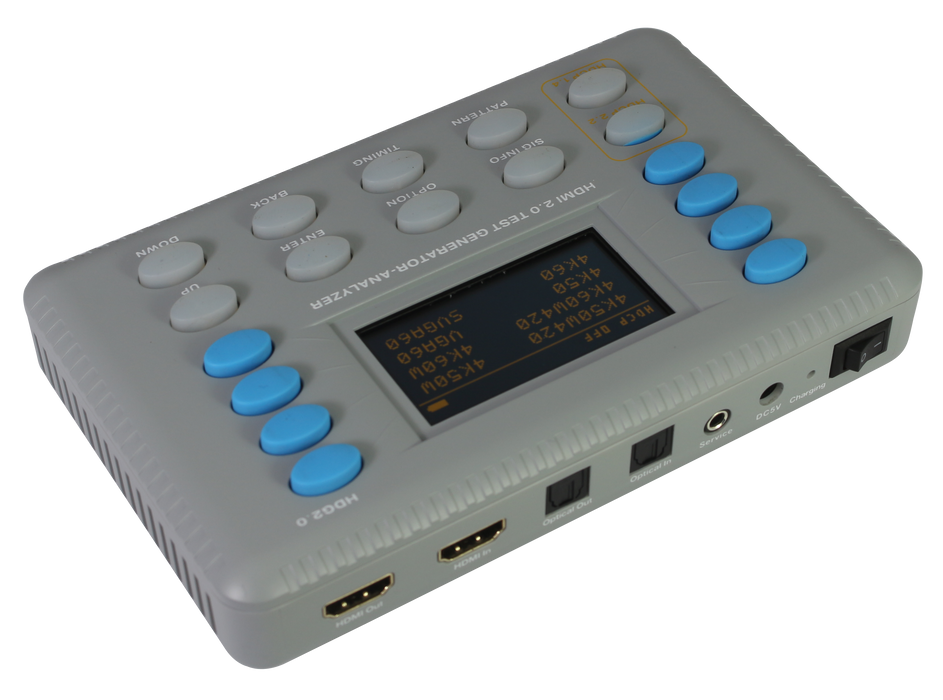

Introduction

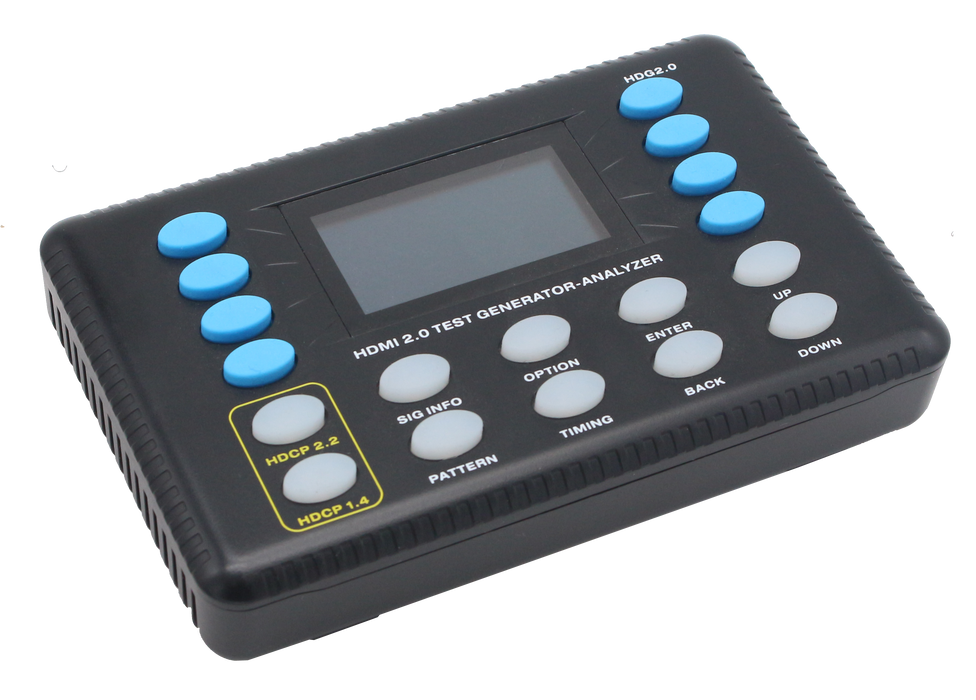

The HDMI 2.0 Test Generator-Analyzer is designed for the AV integration market to confirm HDMI 2.0 and HDCP 2.2 system at 18Gbps Level. It can generate and analyze HDMI signal for any HDMI systems to make it easy for system integration, project installation and debugging, cable manufactories, even for engineering and test laboratory.
Features
- HDMI 2.0b support, Maximum resolution 4K2K@50/60Hz(4:4:4) 18Gbps
- Up to 55 video resolutions and 31 patterns
- Color space supports RGB/YCbCr444/YCbCr422/YCbCr420
- Color depth supports 24, 30 and 36 bit per pixel
- Built-in HDMI 2.0b HDR (High-Dynamic Range) testing
- HDMI audio source can from internal, external S/PDIF or HDMI input audio
- Internal audio LPCM/2CH, sample rate 48kHz, bit width 16bits
- HDCP 2.2/1.4 Pass or Fail indicator
- EDID Read/Write functionality
- HDMI input Timing/Format/Info frame/HDCP analyzing
- CEC supports

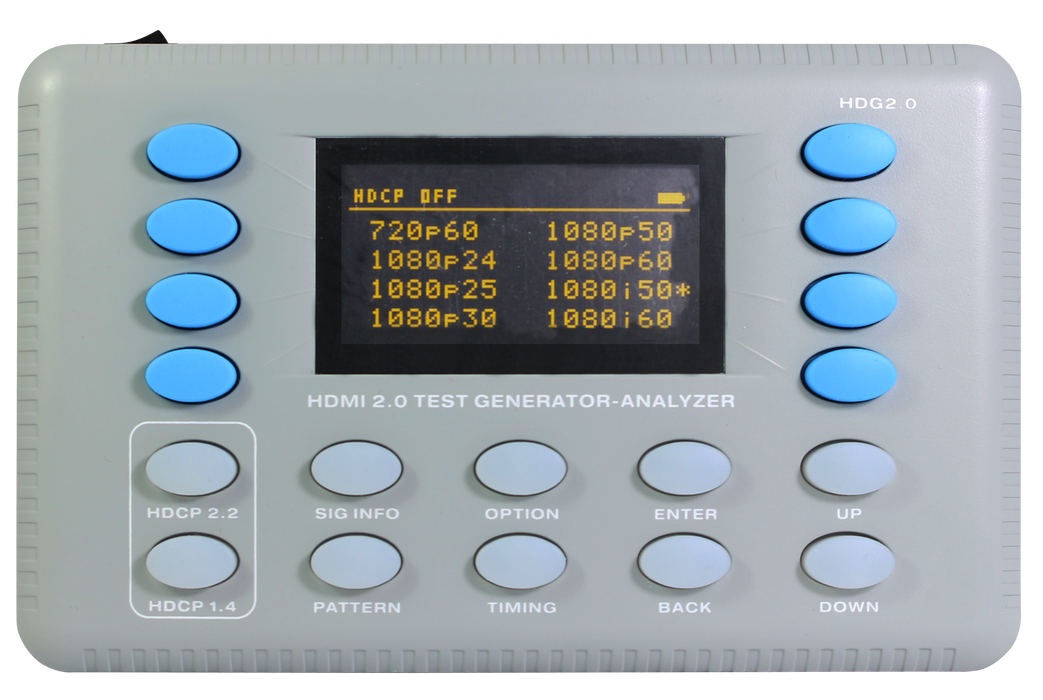

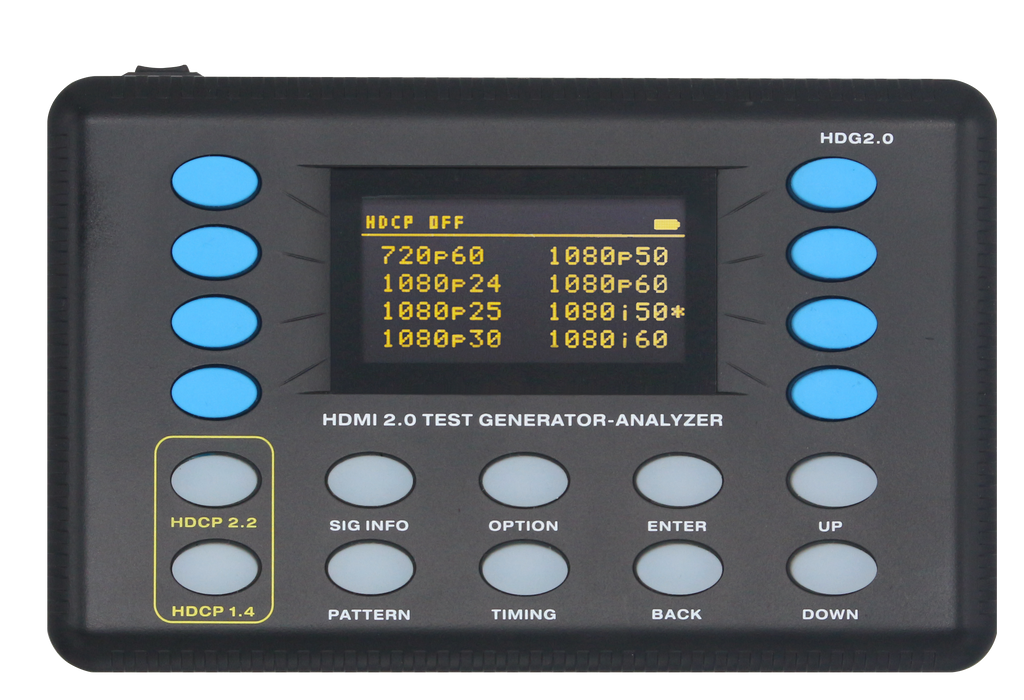

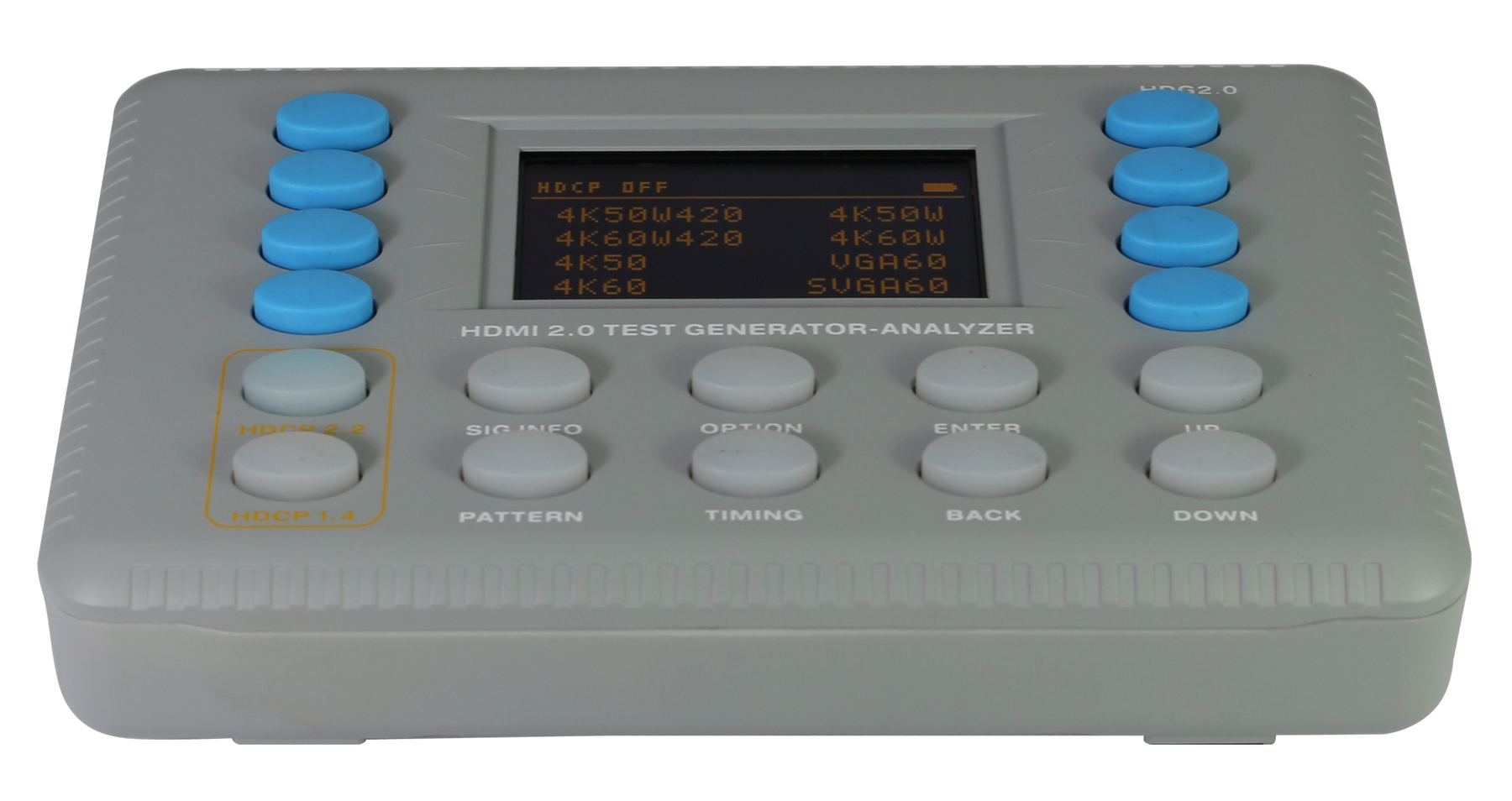

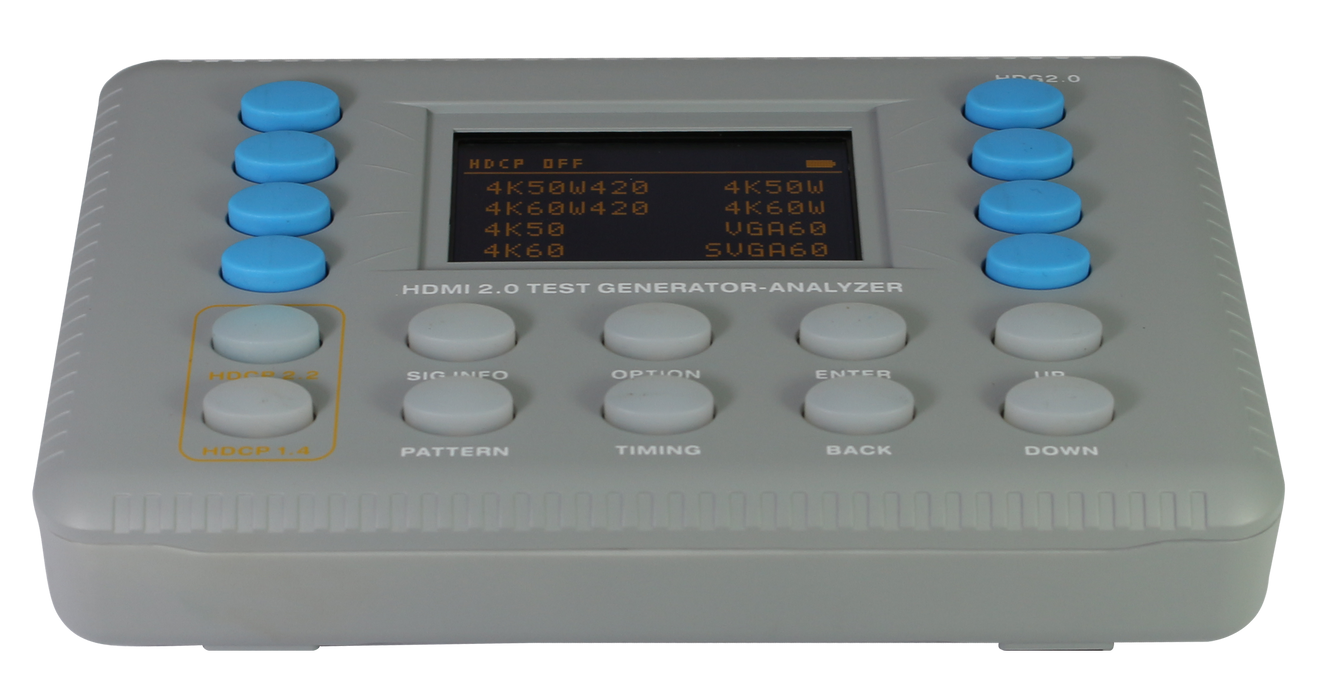

- Control via on panel button or RS-232(3.5mm Mini-jack)
- Portable/Battery Operated 3000mAh
Package Contents
- 1 x HDMI 2.0 Test Generator and Analyzer.
- 1 x 3.5mm to DB9 (Female) serial cable adapter (1 meter length).
- 1 x 5V/2A Power Adaptor.
- 1 x User Manual.
Specifications
|
Technical |
|
|
HDMI Compliance |
HDMI 2.0b |
|
HDCP Compliance |
HDCP 2.2 |
|
Video Bandwidth |
18 Gbps |
|
Video Resolutions |
up to 4K2K@50/60Hz(YUV4:4:4) |
|
Color Space |
RGB, YCbCr 4:4:4, YCbCr 4:2:2 |
|
Color Depth |
8-bit, 10-bit, 12-bit |
|
HDMI Audio Formats |
Internal: LPCM 2CH, 48kHz, 16bits External SPDIF: LPCM 2/5.1CH, Dolby Digital, DTS 5.1 HDMI Pass-through: LPCM 2/5.1/7.1CH, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos, DTS:X |
|
ESD Protection |
Human body model — ±8kV (air-gap discharge) & ±4kV (contact discharge) |
|

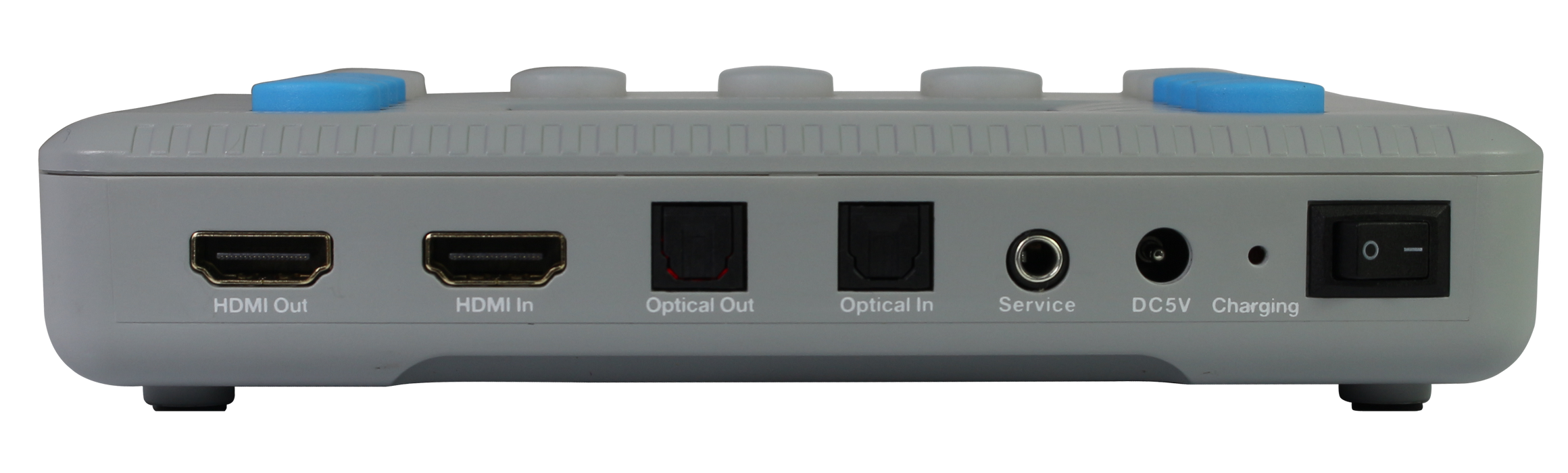

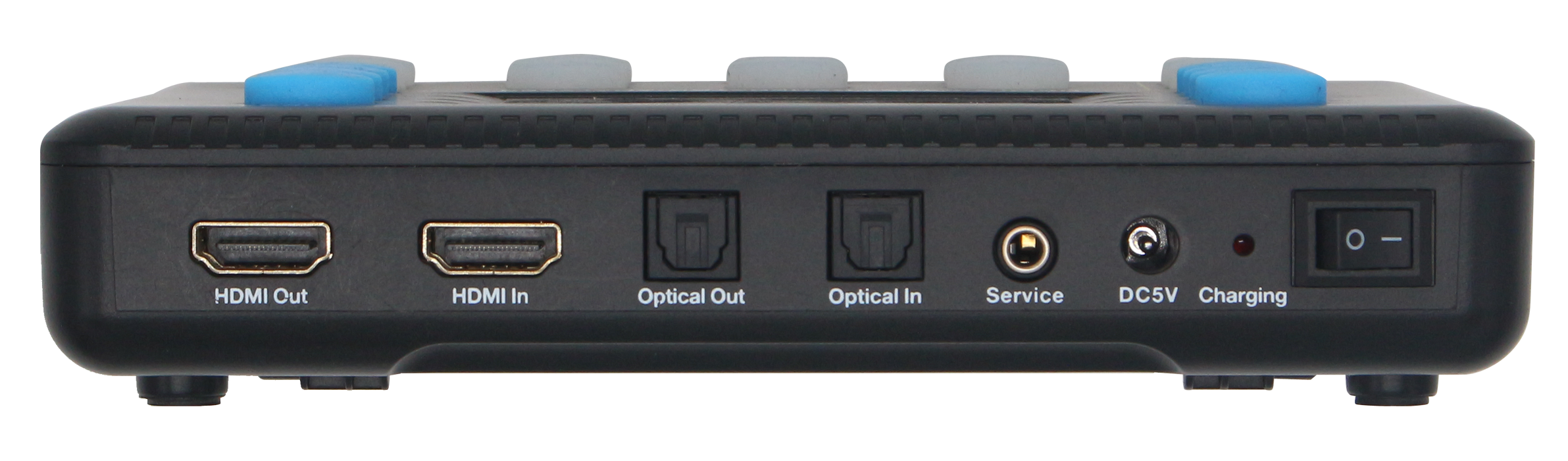

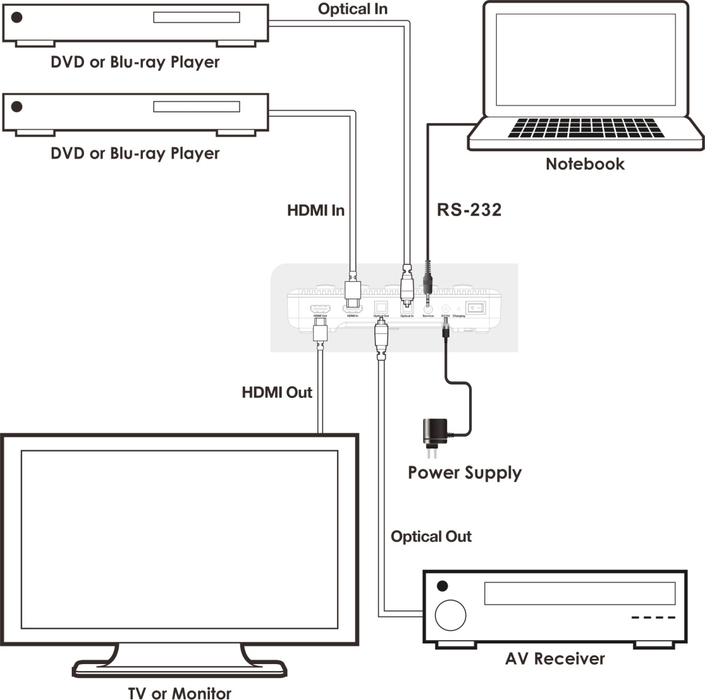

Connections |
|
|
Inputs |
1x HDMI Type A [19-pin female] 1x SPDIF In [Optical] 1x RS-232 [3.5mm Mini-jack] |
|
Outputs |
1x HDMI Type A [19-pin female] 1x SPDIF Out [Optical] |
|
Mechanical |
|
|
Housing |
Plastic Enclosure |
|
Color |
Black |
|
Dimensions |
165mm [W] x 103mm [D] x 37.4mm [H] |
|
Weight |
363g |
|

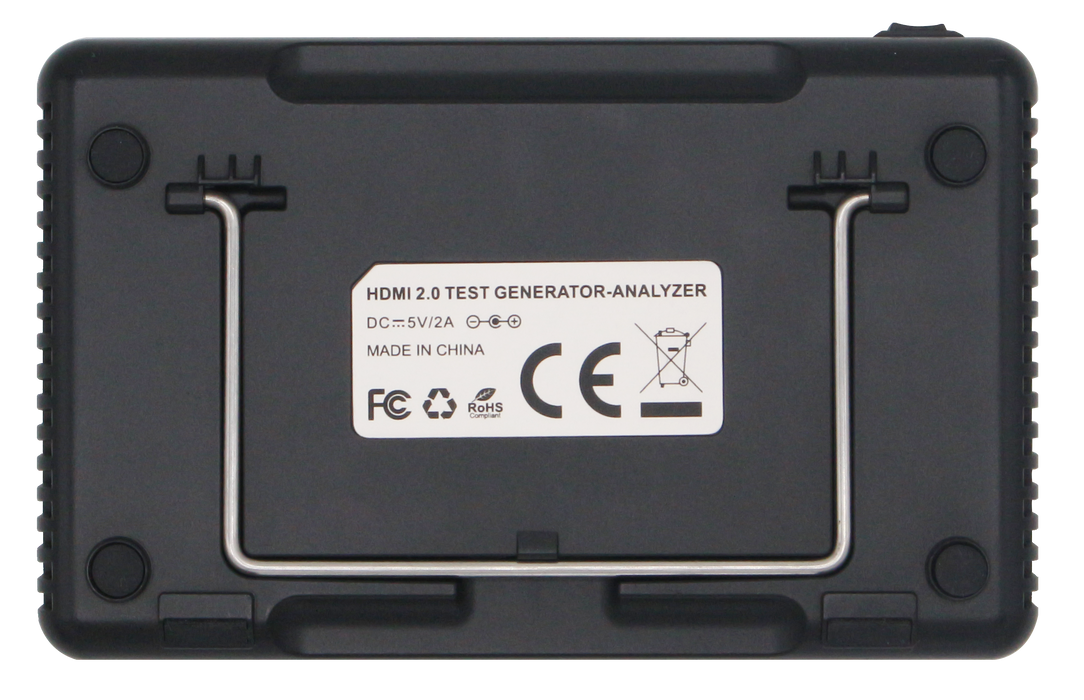

Power Supply |
Input: AC100 - 240V 50/60Hz Output: DC 5V/2A (US/EU standards, CE/FCC/UL certified) |
|
Power Consumption |
2.5W |
|
Operation Temperature |
32 - 104°F / 0 - 40°C |
|
Storage temperature |
-4 - 140°F / -20 - 60°C |
|
Relative Humidity |
20 - 90% RH (no condensation) |
